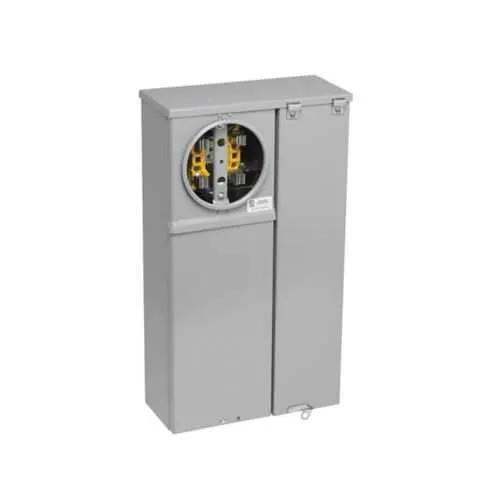

Eaton U2M25R Meter Breakers - UL Listed 10 kAIC
Part Number: U2M25R
Quick Summary
Meter breakers protect electrical services by coordinating a single meter position in commercial installations. Too often installers face mismatched metering gear and time-consuming field wiring that slow projects. This unit is UL listed and EUSERC Approved, ensuring utility acceptance and regulatory compliance in critical metering applications, with an ANSI 61 gray finish for durable corrosion resistance. With rugged construction and a single-meter-position design, it delivers reliable, install-ready protection for commercial and light industrial panels, while integrating smoothly with B-Line series metering components for streamlined procurement and installation.
Product Information
Extended Description
U2M25R Eaton: Eaton B-Line series meter breakers, Ring, 3R, ANSI 61 gray paint, 10 kAIC, Galvanized steel, 3, Single meter position, 200 A, Suface, 8, 120/240 V, Single-phase, None, Aluminum, Underground, (1) 200 A, 2P & (1) 50A, 2P, 4
Product Name
Eaton B-Line series meter breakers
Catalog Number
U2M25R
UPC
782051570373
Product Length/Depth
6 in
Product Height
25 in
Product Width
14 in
Product Weight
36 lb
Compliances
EUSERC Approved
Certifications
UL
Application
Single meter position
Amperage Rating
200 A
Voltage rating
120/240V
Phase
Single-phase
Interrupt rating
10 kAIC
Main circuit breaker
(1) 200 A, 2P & (1) 50A, 2P
Bus material
Aluminum
Material
Galvanized steel
Finish
ANSI 61 gray paint
continuous rating meter socket jaws
continuous rating meter socket jaws
Eaton Specification Sheet - U2M25R
High current capability paired with a robust short-circuit rating delivers reliability in demanding service entrances, reducing nuisance trips and downtime while supporting 200 A service feeds and 120/240 V operation for typical commercial loads. This translates to faster fault clearance and improved protection for critical equipment, enabling safer and more efficient installations in office, retail, and light industrial facilities. Main circuit protection is configured as (1) 200 A, 2P and (1) 50 A, 2P, providing flexible metering arrangements that minimize space and hardware counts in the panel, saving footprint and labor costs during installation. The galvanized steel enclosure with ANSI 61 gray paint resists corrosion in exposed environments, enhancing long-term durability and reducing maintenance cycles for service entrances and outdoor installations. Aluminum bus conductors lower weight and improve conductivity, simplifying handling on site and improving overall efficiency during wiring and field assembly. UL listing and EUSERC approval confirm regulatory compliance and utility acceptance, mitigating project risk and accelerating commissioning for commercial metering projects. Designed for single meter position and surface mounting, the U2M25R integrates with ring and ringless metering sockets and underground service setups, delivering compatibility and install-time advantages that contractors value for time-to-energize projects.
Get a Quick Quote for a Eaton U2M25R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton U2M25R?
Enquire Now
FAQs
Yes. The U2M25R is designed for single meter position installations within Eaton B-Line metering systems. It supports surface mounting and works with standard ring and ringless meter sockets. The unit uses aluminum bus conductors and a rugged galvanized enclosure, simplifying field wiring and reducing mounting time while ensuring secure, code-compliant connections.
Key specs include a 200 A amperage rating, 120/240 V voltage rating, and a 10 kAIC interrupt rating. The assembly is configured as a main circuit with (1) 200 A, 2P and (1) 50 A, 2P breakers, supporting a single meter position. It is UL listed and designed for single-phase service, meeting typical commercial and light-industrial metering requirements.
The U2M25R is ideal for commercial and light-industrial service entrances requiring a single meter position. It works well in office buildings, retail spaces, and small manufacturing facilities, particularly where space is at a premium and a dependable, utility-approved metering solution is needed for underground or surface-mounted installations.
The U2M25R carries UL listing and EUSERC approval, ensuring electrical safety, reliability, and utility acceptance. These certifications streamline utility interconnection processes and help guarantee compliance with national and regional metering standards, reducing project risk and expediting commissioning in regulated environments.
Choosing the U2M25R reduces installation time through a single-meter-position design, compatible mounting, and simplified wiring with aluminum bus. Its durable galvanized steel enclosure and ANSI 61 gray finish minimize maintenance and corrosion-related costs. UL and EUSERC approvals further lower regulatory risk, delivering faster project turnover and predictable lifecycle performance.
