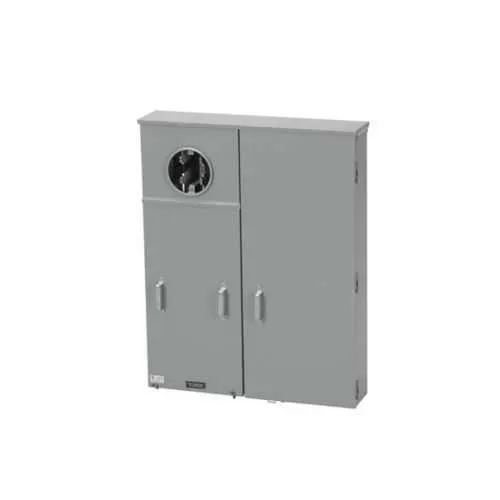

Eaton U4042230MCC Meter Breakers - 22 kAIC UL
Part Number: U4042230MCC
Quick Summary
Eaton U4042230MCC meter breakers provide compact, high‑capacity circuit protection for commercial and industrial meter installations. Engineers and procurement teams often struggle with space constraints, installation complexity, and ensuring code‑compliant metering protection. This unit carries UL certification, EUSERC approval, and a robust 22 kAIC interrupt rating, backed by galvanized steel construction and ANSI 61 gray finish. Surface‑mount, 1Ø/3W configuration with 320 A capacity delivers reliable metering control while simplifying panel layouts. By standardizing on this model, facilities can reduce field labor, improve wiring consistency, and stay compliant with grid and utility requirements, while leveraging compatible meter jaws and ring configurations for flexible installation.
Product Information
Extended Description
U4042230MCC Eaton: Eaton B-Line series meter breakers, 320 A, Manual circuit closing, Studs, 4 jaws, 1 Position, Ring, 3R, Z3614, 22kAIC, material Galvanized steel, Surface mount, 1Ø/3W
Product Name
Eaton B-Line series meter breakers
Catalog Number
U4042230MCC
UPC
782051772203
Product Length/Depth
6 in
Product Height
38 in
Product Width
30 in
Product Weight
110 lb
Compliances
EUSERC Approved
Certifications
UL
Amperage rating
320 A
Interrupt rating
22 kAIC
Material
Galvanized steel
Finish
ANSI 61 gray paint Mill-galvanized
continuous rating meter socket jaws
continuous rating meter socket jaws
Eaton Specification Sheet - U4042230MCC
High current protection with 320 A amperage rating and a 22 kAIC interrupt rating ensures rapid isolation of faults, reducing equipment damage and downtime in metering enclosures. This translates to lower maintenance costs and improved system reliability across commercial and industrial facilities. The unit’s galvanised steel construction and ANSI 61 gray finish improve corrosion resistance in harsh environments, extending service life and lowering replacement intervals. Surface mounting and a 1Ø/3W configuration enable compact, space‑efficient installations, speeding up commissioning and minimizing panel footprint. The 4 jaws, 1 position and ring‑based mounting support flexible, secure connections, while UL listing and EUSERC approval provide regulatory assurance for utility interconnection. Compatibility with continuous rating meter jaws and ring‑vs‑ringless configurations simplifies upgrade paths and standardization efforts across projects.
Get a Quick Quote for a Eaton U4042230MCC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton U4042230MCC?
Enquire Now
FAQs
U4042230MCC is designed for surface mounting in 1Ø/3W meter configurations. It utilizes 4 jaws and a single position with ring connections, which integrates with continuous rating meter socket jaws and offers compatibility for ring vs ringless metering setups. This streamlines installation in B‑Line meter racks and reduces field wiring complexity, helping to accelerate commissioning and serviceability.
The unit provides a 320 A amperage rating with a 22 kAIC interrupt rating, meaning it can safely interrupt short‑circuit currents up to 22 kiloamps. This level of protection helps prevent equipment damage in fault conditions and minimizes risk to personnel. These specs align with typical commercial and industrial metering applications, delivering reliable protection for feeders and meters.
Yes. The U4042230MCC is built for heavy‑duty meter installations in industrial, commercial, and utility‑connected facilities. Its galvanized steel construction and EUSERC approval make it appropriate for outdoor or indoor environments where robust protection and regulatory compliance are required. The 1Ø/3W configuration is particularly applicable to single‑phase meter sites with compact panel layouts.
This model is UL listed and EUSERC approved, with a corrosion‑resistant galvanized steel body and ANSI 61 gray finish. These certifications ensure compliance with safety and utility interconnection requirements, enabling easier approvals from utilities and reduced project risk. The certifications also support consistent performance in demanding industrial environments.
Installation benefits include faster mounting due to surface‑mount design, ring and jaw compatibility for flexible wiring, and straightforward upgrade paths with standard meter jaws. ROI advantages come from reduced field labor, decreased downtime during installation or maintenance, and longer service life thanks to durable materials and protective finishes, all while maintaining regulatory compliance.
