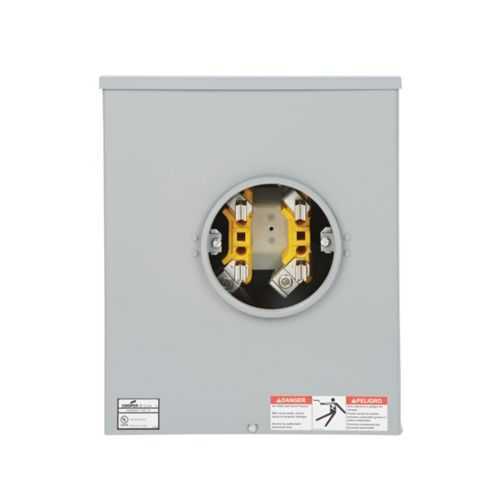

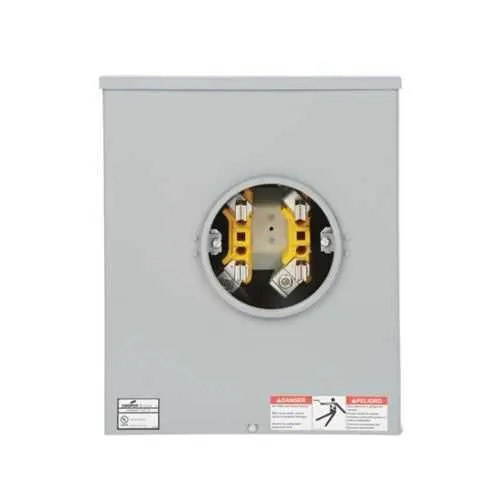

Eaton UG204 Meter Sockets UL Listed
Part Number: UG204
Quick Summary
Eaton UG204 Meter Sockets are rugged, underground-ready metering solutions designed for industrial power systems. Installed in underground feeders, they address moisture and corrosion challenges by using steel construction and ANSI 61 paint. UL Listed certification ensures reliability, while a degree of protection rated to 3 provides basic enclosure safety in tough environments. For project teams, UG204 offers compatibility with ring-type jaw configurations and side mounting, reducing field rework and speeding deployment. Additionally, the 200A rating and lug sizes up to #6-350 MCM on the line side and #6-250 MCM on the load side provide flexibility for high-demand feeders. By combining rugged steel with UL Listing and ring-type metering, UG204 supports reliable performance in busy electrical rooms and outdoor installations.
Product Information
Extended Description
UG204 Eaton: Eaton B-Line series single meter sockets, 200 A, Underground, Four-jaw, Ring, 3, ANSI 61 paint, Steel, Side, 1 pole, Three-wire, #6-350 MCM, #6-250 MCM, None
Product Name
Eaton B-Line series single meter sockets
Catalog Number
UG204
UPC
782051562002
Product Length/Depth
4.625 in
Product Height
17 in
Product Width
14 in
Product Weight
18.239 lb
Certifications
UL Listed
Amperage Rating
200A
Material
Steel
Finish
ANSI 61 paint
Number of jaws
Four-jaw
Number of wires
3 Three-wire
Bypass
None
Feed type
Underground
Mounting method
Side
Number of poles
1
Line lug size
#6-350 MCM
Load lug size
#6-250 MCM
Cover/door type
Ring
Degree of protection
3
Feature: Steel construction with ANSI 61 paint provides rugged protection against corrosion and impact in underground spaces. Business impact: This durability extends service life and lowers maintenance costs. Application: Ideal for outdoor meter enclosures, subterranean feeders, and installations exposed to moisture and soil.Feature: 200A amperage rating with four-jaw ring-type design ensures secure, high-capacity connections for large feeders. Business impact: Reduces contact resistance and overheating risk, improving electrical efficiency and safety margins. Application: Compatible with #6-350 MCM line lugs and #6-250 MCM load lugs for underground distribution in commercial facilities.Feature: Side mounting and a compact footprint (4.625 in depth, 14 x 17 in) facilitate fast field installation and space planning. Business impact: Faster commissioning, easier retrofits, and better utilization of service corridors. Application: Suitable for basements, mechanical rooms, and outdoor meter pads where space is at a premium.Feature: Ring cover (ring-type) and a single-pole, three-wire configuration standardize wiring and ensure consistent metering alignment. Business impact: Enhances installation predictability and reduces commissioning time. Application: Useful for utilities and industrial sites employing ring-type metering schemes.Feature: UL Listed certification combined with ANSI 61 paint and steel construction provides traceable compliance and durable performance. Business impact: Supports procurement approvals and reduces risk of non-conforming installations. Application: Works with Eaton B-Line components and other compatible metering hardware for integrated underground distribution systems.
Get a Quick Quote for a Eaton UG204
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UG204?
Enquire Now
FAQs
UG204 is designed for underground feed installations with side mounting. Plan for a 14 in by 17 in footprint and a 4.625 in depth to ensure adequate clearance for lug connections (#6-350 MCM line and #6-250 MCM load). The unit weighs about 18.239 lb, so consider accessible mounting height and support while wiring. Ensure proper enclosure protection and compliance with UL Listed requirements during final commissioning.
UG204 is a 200A, 1-pole, 3-wire meter socket with a four-jaw ring-type design. Line lug size supports up to #6-350 MCM and load lug size up to #6-250 MCM, enabling high-capacity underground feeders. The product is finished in ANSI 61 paint on steel and carries UL Listed certification, aligning with routine electrical safety and performance standards for underground metering.
Yes. UG204 is explicitly configured as a ring-type meter socket with a side-mounting option. This combination supports organized, secure wiring and straightforward installation in constrained spaces. Catalogs also show ring vs ringless metering considerations, helping you select the right configuration for your utility or industrial installation.
UG204 carries UL Listed certification, which provides baseline safety and reliability. The enclosure carries a degree of protection rated to 3, offering basic protection against ingress for underground installations. The ANSI 61 paint finish on steel further enhances durability and corrosion resistance in harsh environments.
UG204 reduces maintenance downtime through a robust steel construction, UL-listed reliability, and a compact, side-mountable footprint that speeds installation. The large-lug capacity (#6-350 MCM on the line side and #6-250 MCM on the load side) minimizes the need for adapters, supports longer service intervals, and lowers field labor costs during upgrades or expansions.
