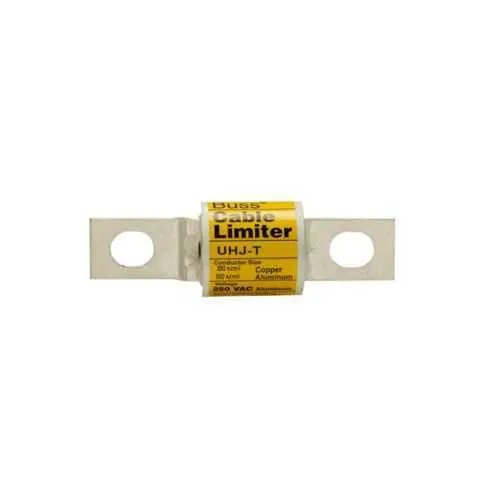

Eaton UHJ-T Cable Limiter - 100 kAIC Rating for 250V
Part Number: UHJ-T
Quick Summary
The Eaton UHJ-T cable limiter provides high-current protection for industrial power distribution networks. Engineers often struggle to balance compact size with safe fault-current interruption in large-diameter feeder runs. No formal certifications are listed for this specific part in the datasheet, but it is rated for 250 V and 100 kAIC. This combination supports reliable service entrances and high-current feeder protection, delivering faster fault clearance and reduced downtime. In practice, you gain compatibility with copper and aluminum conductors, plus a compact footprint for tight panel layouts. The product's non-indicating design reduces panel clutter and simplifies replacement when you don't need status cues. Overall, UHJ-T supports efficient procurement with a focused Eaton Bussmann ecosystem while addressing key high-current safety concerns.
Product Information
Extended Description
UHJ-T Eaton: Eaton Bussmann series UHJ cable limiter, 100 kAIC, Center bolt end X offset bolted end, Copper: 350 kcmil, Aluminum: 500 kcmil, Non indicating
Product Name
Eaton Bussmann series UHJ cable limiter
Catalog Number
UHJ-T
UPC
051712198561
Product Length/Depth
4.87 in
Product Height
1.5 in
Product Width
1.5 in
Product Weight
0.72 lb
Warranty
Not Applicable
Compliances
Not Applicable
Interrupt rating
100 kAIC
Voltage rating
250 V
Wire size
350 kcmil Cu, 500 kcmil Al
Connection
Center bolt end x offset bolted end
Fuse indicator
Non-indicating
UHJ-T~BUSS CABLE LIMITER
UHJ-T~BUSS CABLE LIMITER
Bussmann series Fuseology
Eaton Specification Sheet - UHJ-T
Feature: 100 kAIC interrupt rating — Business impact: faster fault-current interruption reduces arc energy and equipment wear; Application: ideal for feeders and main distribution paths in industrial facilities. Feature: 250 V voltage rating — Business impact: safe operation within standard low-voltage power distribution; Application: suitable for industrial control panels and feeder circuits. Feature: Wire size compatibility — Business impact: enables use with copper 350 kcmil and aluminum 500 kcmil conductors; Application: supports large-diameter feeders and service entrances. Feature: Center bolt end x offset bolted end — Business impact: versatile mechanical connection improves install flexibility; Application: aligns with common Eaton Bussmann mounting practices in panel assemblies. Feature: Non-indicating fuse limiter — Business impact: reduces panel clutter and maintenance checks; Application: ideal where indicators are not required or will be monitored remotely. Feature: Compact footprint (4.87 in L, 1.5 in W/H) — Business impact: saves panel space and simplifies retrofits; Application: fits tight panel layouts and crowded electrical rooms. Feature: Part of the Eaton Bussmann series — Business impact: streamlined procurement and warranty alignment with other Bussmann protection devices; Application: smooth integration into existing protection schemes and spare-part compatibility for ongoing maintenance.
Get a Quick Quote for a Eaton UHJ-T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UHJ-T?
Enquire Now
FAQs
Install the UHJ-T with copper conductors up to 350 kcmil or aluminum up to 500 kcmil, ensuring correct alignment between the center bolt end and the offset bolted end. Use standard hardware compatible with Bussmann series components, and secure the limiter within the panel enclosure according to your facility’s wiring practices. After assembly, verify conductor torque and start-up sequencing to confirm proper fault interruption path.
The UHJ-T supports copper conductors up to 350 kcmil and aluminum conductors up to 500 kcmil. It is rated for 250 V and an interrupt rating of 100 kAIC, making it suitable for high-current feeder protection in industrial distributions that use the Bussmann series protection ecosystem.
Yes. With a 100 kAIC interrupt rating and 250 V operation, the UHJ-T is designed for demanding feeder protection in industrial panels. Its compact 4.87 inch length and center bolt end with offset bolted end facilitate installation in tight spaces while maintaining robust current interruption characteristics.
The datasheet notes Not Applicable for Compliances and Warranty, and no specific certifications are listed. For regulatory compliance in your region, verify through local electrical standards and confirm compatibility with your project specifications. The device’s electrical ratings (100 kAIC, 250 V) should be evaluated against your system requirements.
The UHJ-T delivers a clear ROI through enhanced fault protection, reduced downtime, and streamlined maintenance in high-current feeder applications. Its compatibility with copper and aluminum conductors supports flexible design, while its compact footprint can lower panel redesign costs. Aligning with Eaton Bussmann components also simplifies spares management and long-term support.
