Eaton UT0S16JC Connector - IP68/69k Sealing Gland
Part Number: UT0S16JC
Quick Summary
Eaton UT0S16JC is a metal IP68/69k connector built for intensive use in harsh industrial environments. Manufacturers often struggle with moisture ingress and cable strain under vibration, which can drive costly downtime. This design features shielding, a straight backshell, and a sealing gland, and it satisfies IP68/69k protection along with UL94 V0, REACH, and RoHS compliance. In practical terms, it delivers robust EMI protection and reliable sealing for industrial automation assemblies, reducing maintenance costs and simplifying installation. With its shielded construction and rugged seal, this connector supports dependable performance across automated lines, outdoor equipment, and wash-down environments.
Product Information
Extended Description

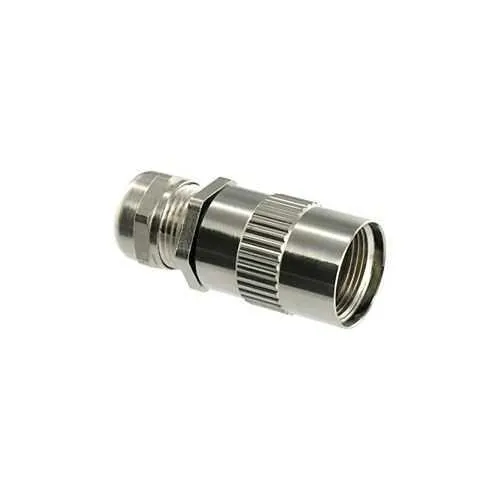

UT0S16JC Eaton: Shielded long metal cable gland with strain relief nut, size 16; UT0S16JC
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0S16JC
Fitted with:
Shielding
Environmental conditions
Flammability rating UL94 V0 REACH RoHS
Backshell angle
Straight
Backshell type
Sealing Gland
Shell size
16
Cable diameter - max
14.5 mm
Cable diameter - min
10 mm
Feature: Shielded metal housing and IP68/69k protection → Business Impact: Ensures EMI shielding and ingress resistance for harsh environments, reducing failure rates → Application: Heavy machinery, outdoor automation, mining equipment. Feature: Straight backshell with sealing gland → Business Impact: Simplifies routing, maintains seal integrity under vibration, enables reliable strain relief → Application: Panel-to-cable assemblies in compact installations. Feature: Shell size 16 and cable range 10–14.5 mm diameter → Business Impact: Broad compatibility with common industrial cables, minimizing rework during harness design → Application: General purpose harnesses in robotic and packaging lines. Feature: Shielding integrated with connector → Business Impact: Enhances EMC performance for precision automation and servo drives → Application: Robotics, CNC machines, and high-resistance control systems. Feature: Environmental compliance (UL94 V0, REACH, RoHS) → Business Impact: Regulatory-ready for global deployments, reducing certification lead times → Application: Global manufacturing and compliance-driven projects.
Get a Quick Quote for a Eaton UT0S16JC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0S16JC?
Enquire Now
FAQs
UT0S16JC uses a straight backshell and Sealing Gland configuration, aligning with Souriau UT0 series accessories. Its shielded housing supports standard mating interfaces and cables within the 10–14.5 mm diameter range, enabling straightforward integration into existing harnesses and minimal modification to installed systems.
The connector combines a metal housing with an IP68/69k rating, shielding, and a sealing gland to protect against water, dust, and contaminants in demanding settings. UL94 V0 flammability along with REACH and RoHS compliance further ensure safety and regulatory alignment for outdoor and wash-down environments.
UT0S16JC supports a cable diameter from 10 mm to 14.5 mm, with a straight backshell and sealing gland designed to provide reliable strain relief. This range accommodates common industrial cables used in automation, facilitating quick field assembly and reducing the need for re-termination or re-cabling.
UT0S16JC meets UL94 V0 for flammability, and conforms to REACH and RoHS requirements, ensuring material and environmental compliance for global deployments. The IP68/69k rating adds robust ingress protection suitable for continuous immersion and wash-down conditions.
The connector delivers improved uptime through dependable EMI shielding and sealing, reducing ingress and electrical noise in automated lines. Its rugged metal housing, straightforward installation, and regulatory compliance translate to lower maintenance costs, longer service life, and quicker deployment in robotics, packaging, and factory automation applications.
