Eaton UT0S16JCL Connector - IP68/69k Shielded Sealing
Part Number: UT0S16JCL
Quick Summary
UT0S16JCL metal IP68/69k connector delivers rugged power and signal coupling for intensive-use automation in harsh industrial environments. When cables move or vibrate in machinery, inadequate shielding or strained glands lead to premature wear and costly downtime. With IP68/69k sealing, UL94 V0 flame rating, and RoHS/REACH compliance, it meets stringent industry standards and keeps critical lines protected. This shielded metal design, featuring a straight backshell and sealing gland, enables straightforward installation across cable diameters 13.5 to 18 mm, while maintaining reliable EMI shielding. In automation and robotics panels, its durable construction translates to reduced maintenance, fewer field failures, and a lower total cost of ownership.
Product Information
Extended Description

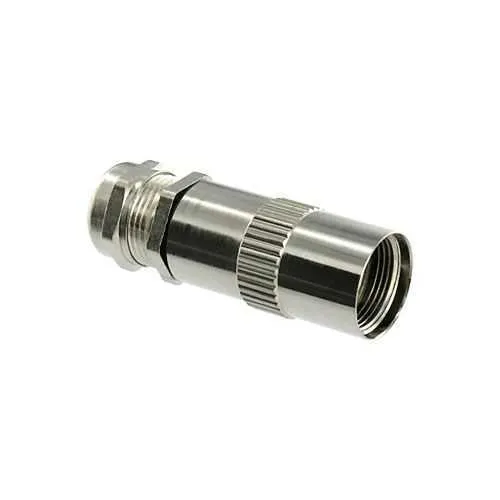

UT0S16JCL Eaton: Shielded long metal cable gland with large strain relief nut, size 16; UT0S16JCL
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0S16JCL
Fitted with:
Shielding
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Backshell angle
Straight
Backshell type
Sealing Gland
Shell size
16
Cable diameter - max
18 mm
Cable diameter - min
13.5 mm
Feature: Shielded metal housing with IP68/69k rating provides robust EMI protection and mechanical durability, essential for equipment in harsh production lines, washdowns, and dusty environments. Business impact: Fewer electrical faults and reduced unscheduled maintenance translate to higher line availability and lower service costs. Application: Suitable for motor drives, servo systems, conveyors, and field-deployed control panels where cable routing is challenged by movement and exposure to moisture. Feature: Large strain-relief nut paired with a long shielded cable gland offers superior pull-out resistance and cable management. Business impact: Reduces damage to the connector and cable harness under dynamic loads, diminishing replacement expenses, warranty claims, and downtime. Application: Ideal for robotic arms, crane systems, and OEM harnesses with extended cable runs or aggressive handling in harsh environments. Feature: Straight backshell combined with a sealing gland promotes reliable sealing with straightforward routing and reduced assembly complexity. Business impact: Maintains IP68/69k performance even when installation geometry is imperfect, speeding up field upgrades and reducing commissioning time. Application: Panel connectors and serviceable harness assemblies in automation lines and process-control cabinets where space is tight. Feature: Shell size 16 and cable diameter range 13.5–18 mm offer broad cabling compatibility and reduced part SKUs. Business impact: Simplifies procurement, reduces design-time risk, and accelerates time-to-market for multi-cable assemblies. Application: Mixed-cable OEM designs for sensors, actuators, power feeds, and control signals across machinery footprints. Feature: UL94 V0, RoHS, and REACH compliance ensure regulatory alignment. Business impact: Supports quality audits, improves traceability, and mitigates regulatory risk in automotive, machinery, and industrial automation applications. Application: Any OEM needing certified materials in controlled environments, with the need for shielded, durable, and compliant interconnections.
Get a Quick Quote for a Eaton UT0S16JCL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0S16JCL?
Enquire Now
FAQs
When installing UT0S16JCL, ensure the cable diameter falls within 13.5 to 18 mm and route cables to avoid sharp bends that could stress the sealing gland. Use the long, shielded cable gland with the large strain-relief nut to resist pull-out in dynamic applications. The straight backshell simplifies alignment and mating with panels or harnesses.
Yes. UT0S16JCL is UL94 V0 flame rated and RoHS/REACH compliant, supporting regulatory adherence in machinery and automation projects. It also provides IP68/69k sealing and shielded metal housing to withstand washdowns, dust, and vibration, helping you pass routine industrial audits.
Best for heavy-duty automation, robotics, conveyors, and outdoor control panels where dependable EMI shielding, robust ingress protection, and secure cable retention are essential. The sealing gland with large strain-relief nut supports long cable runs and simplified field installations, reducing commissioning time.
UT0S16JCL carries IP68/69k ingress protection, ensuring submersion-ready performance in harsh environments. It is UL94 V0 flammability rated and RoHS/REACH compliant, with shielded metal construction and a straight backshell. Key specs include shell size 16 and a cable diameter range of 13.5 to 18 mm.
Durable metal construction, shielding, and reliable sealing reduce field failures and maintenance, lowering downtime costs over the product’s life. The standardized size and wide cable range simplify procurement and inventory, while compatibility with UT0SXXJC-C02 drawings streamlines engineering work and accelerates time-to-market.
