Eaton UT0S20JC Connector - IP68/69k
Part Number: UT0S20JC
Quick Summary

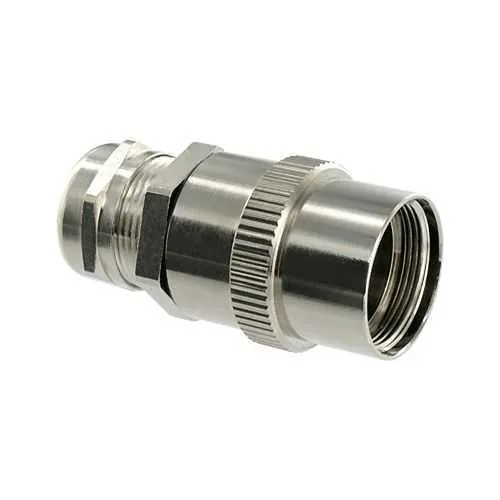

Eaton UT0S20JC is a rugged metal IP68/69k connector designed for intensive use in harsh industrial environments. This interface supports reliable power and signal transmission even in wet, dusty, or vibratory conditions, reducing unexpected downtime. With REACH and RoHS compliance and a UL94 V0 flammability rating, it also aligns with stringent safety and environmental standards. By integrating shielded performance and a sealing gland, UT0S20JC delivers long-term reliability while enabling compatibility with Souriau UTO series components and shielded cabling, driving lower maintenance costs and higher system uptime for critical automation assets.
Product Information
Extended Description
UT0S20JC Eaton: Shielded long metal cable gland with strain relief nut, size 20; UT0S20JC
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0S20JC
Fitted with:
Shielding
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Backshell angle
Straight
Backshell type
Sealing Gland
Shell size
20
Cable diameter - max
18 mm
Cable diameter - min
13.5 mm
Shielded metal construction delivers EMI protection and robust mechanical integrity, translating to improved signal integrity and reduced interference in noisy factory floors. This directly supports higher uptime and more predictable diagnostics for automated systems. The backshell sealing gland and straight configuration simplify field assembly, enabling straightforward installation in compact enclosures and tight cable runs, while maintaining IP68/69k protection against water and dust ingress. Shielding is integrated with the gland to preserve cable integrity and minimize leakage paths, which reduces failure modes in harsh environments and supports compliance with EMC standards. The shell size 20 and a broad cable diameter range of 13.5 to 18 mm provide flexible compatibility with common industrial cables, lowering the need for custom harnesses and speeding up procurement. Environmental compliance such as REACH, RoHS, and UL94 V0 supports safe supply chains and risk mitigation for regulated industries. Overall durability and sealing gland design minimize maintenance cycles and replacement costs, delivering lower total cost of ownership for critical equipment.
Get a Quick Quote for a Eaton UT0S20JC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0S20JC?
Enquire Now
FAQs
UT0S20JC supports cable diameters from 13.5 mm to 18 mm when used with the straight backshell and sealing gland. For best results, pair with shielded cables and secure the strain relief nut to ensure EMI performance and reliable sealing in IP68/69k environments.
The UT0S20JC offers IP68/69k ingress protection, shielding to minimize EMI, and is compliant with REACH and RoHS standards. It also carries a UL94 V0 flammability rating, which helps meet safety guidelines for electrical assemblies in aggressive or confined industrial spaces.
Yes. Its metal construction, straight backshell with a sealing gland, and IP68/69k rating make it ideal for harsh environments, vibration, and exposure to dust and water. The compatibility with shielded cables and Souriau UTO components supports reliable, long-term automation panel performance.
The integrated shielding, sealing gland, and robust metal housing reduce ingress-related wear and EMI-related failures. This translates to fewer maintenance cycles, longer mean time between failures (MTBF), and lower replacement costs for critical equipment in demanding facilities.
Install UT0S20JC with the straight backshell, insert the shielded cable within the 13.5–18 mm range, and tighten the strain relief nut securely. Verify sealing by confirming proper gland engagement, and check EMI performance with the equipment grounded and the mating connector properly aligned to maintain continuous shielding.
