Eaton UT0S20JCL UTO metal connector for harsh use - IP68/69k
Part Number: UT0S20JCL
Quick Summary
UT0S20JCL is a metal IP68/69k connector for harsh environments, delivering reliable, shielded power and signal transfer in rugged industrial automation applications. Manufacturers and integrators struggle with moisture ingress, EMI, and cable strain that lead to unplanned downtime and costly maintenance. This connector meets RoHS and REACH requirements and carries UL94 V0 flammability rating, with IP68/69k sealing for immersion and dust protection. Its shielded, sealing gland design offers durable performance while simplifying panel assembly and field servicing, reducing risk and total cost of ownership. With a straight backshell, 20 shell size, and compatibility with standard Souriau UT0 components, it enables fast, reliable installations and long service life.
Product Information
Extended Description

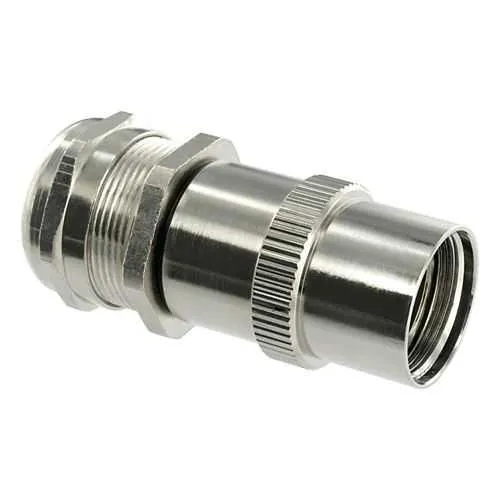

UT0S20JCL Eaton: Shielded long metal cable gland with large strain relief nut, size 20; UT0S20JCL
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0S20JCL
Fitted with:
Shielding
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Backshell angle
Straight
Backshell type
Sealing Gland
Shell size
20
Cable diameter - max
24 mm
Cable diameter - min
14 mm
Shielded construction minimizes EMI, protecting sensitive control circuits and preserving signal integrity in noisy industrial environments. This reduces nuisance faults, lowers test cycles, and increases machine throughput in robot cells, CNC equipment, and conveyors. The IP68/69k sealing combined with a sealing gland backshell delivers immersion and dust protection, extending life in outdoor or washdown environments and lowering maintenance costs in packaging lines and food/beverage applications. Cable diameter range of 14–24 mm and a large strain relief nut simplify routing, reduce cable damage, and cut installation time in panel-mount assemblies. Straight backshell and shielding enable straightforward, repeatable field servicing and reliable sealing performance across UT0-series partners. RoHS/REACH compliance and UL94 V0 ensure regulatory alignment and safe material use in critical environments. The metal construction adds durability and long-term availability for OEMs, with compatibility across the Souriau UT0 family.
Get a Quick Quote for a Eaton UT0S20JCL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0S20JCL?
Enquire Now
FAQs
To install UT0S20JCL, verify the cable diameter is within 14–24 mm, then use the Sealing Gland backshell for proper sealing. Route the shielded cable through the connector, secure the large strain relief nut to prevent movement, and tighten per installation torque guidelines to maintain IP68/69k protection. The straight backshell simplifies panel mounting and field servicing, reducing assembly time.
The UT0S20JCL features IP68/69k sealing for immersion and dust protection, RoHS and REACH compliance for restricted substances, and UL94 V0 flammability rating. It is designed for intensive industrial use, providing reliable performance in harsh environments while meeting essential regulatory requirements for safety and sustainability.
Yes. The IP68/69k rating, along with the sealing gland and shielded construction, makes UT0S20JCL well-suited for outdoor and washdown environments. Its metal backshell and robust strain relief reduce exposure to moisture, dust, and mechanical stress, helping to minimize maintenance and extend service life in outdoor control cabinets.
Key specs include shell size 20, cable diameter range 14–24 mm, straight backshell, and sealing gland type. The connector is shielded for EMI protection and built to withstand intensive use. These features support reliable power and signal transmission in demanding automation applications while ensuring straightforward installation and robust sealing.
The combination of IP68/69k sealing, shielding, and a large strain relief nut reduces ingress-related downtime and cable damage, lowering maintenance frequency and cost. Regulatory compliance and durable metal construction translate to longer intervals between replacements and more predictable performance in OEM equipment and fielded systems.
