Eaton UT0S20JCSL Connector - IP68/69k Shielded Metal
Part Number: UT0S20JCSL
Quick Summary
UT0S20JCSL connector from Eaton provides rugged IP68/69k protection and shielded performance for harsh industrial applications. In demanding environments, improper sealing and inadequate strain relief can drive downtime and costly repairs. The design delivers IP68/69k sealing, RoHS and REACH compliance, and UL94 V0 flame rating, supporting safe, regulation-aligned operation in regulated settings. Its straight backshell and sealing gland simplify field installation, accommodating a cable diameter range from 14 mm to 24 mm and reducing installation time. This robust metal connector boosts uptime and maintenance intervals, while offering compatibility with shielded cabling and compact housings that are common in automation machinery.
Product Information
Extended Description

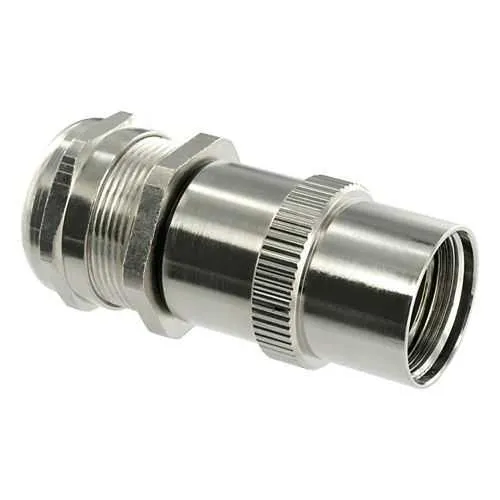

UT0S20JCSL Eaton: Shielded short metal cable gland with large strain relief nut, size 20; UT0S20JCSL
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0S20JCSL
Fitted with:
Shielding
Environmental conditions
REACH RoHS Flammability rating UL94 V0
Backshell angle
Straight
Backshell type
Sealing Gland
Shell size
20
Cable diameter - max
24 mm
Cable diameter - min
14 mm
IP68/69k protection and a rugged metal housing shield critical electronics from water, dust, and immersion, delivering reliable operation in harsh environments. This reduces unexpected downtime and extends service intervals for outdoor machinery and wash-down areas. The UT0S20JCSL backshell uses a straight configuration and a sealing gland design to simplify panel mounting and improve the seal over long service life. Shielding provides robust EMI/RFI protection, protecting sensitive sensors and drive electronics from external interference. The integrated shielding ensures consistent performance across industrial networks, reducing noise-related faults. This is particularly valuable in robotics, CNC machines, and automated lines where compact layouts and shielded cables are common. Cable diameter range of 14 to 24 mm supports a broad set of field wires and harnesses, reducing parts diversity and simplifying procurement. The connectors are compatible with shielded cables and standard gland fittings, enabling quick terminations on assembly lines. By accommodating varied cable diameters within a single shell size, installers gain flexibility and batch efficiency. RoHS and REACH compliance, combined with UL94 V0 flammability rating and IP68/69k sealing, provide regulatory confidence for global deployments. The metal sealing gland backshell reduces ingress paths and supports service in humid factories, food processing, and energy facilities where reliability matters. These attributes minimize compliance risk and support long-term maintenance planning. Installation and maintenance advantages align with common automation practices: straight backshell simplifies panel mounting, and the large strain relief nut provides durable cable retention. The shielded design reduces shielding complexity in harness assemblies, while the 20 shell size fits compact equipment without requiring extensive redesigns. Operators gain faster installs, lower warranty claims, and predictable performance under intensive use.
Get a Quick Quote for a Eaton UT0S20JCSL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0S20JCSL?
Enquire Now
FAQs
To install UT0S20JCSL, align the backshell with the mating connector, thread the sealing gland, and secure the assembly with the large strain-relief nut. Use cables within the 14–24 mm diameter range, apply appropriate torque to avoid overtightening, and verify shielding continuity. A straight backshell simplifies panel mounting and ensures a reliable seal across the connection, reducing rework on the line.
Yes. UT0S20JCSL is designed with shielding to provide EMI/RFI protection, safeguarding sensitive control electronics and sensors from external interference. This compatibility with shielded cabling helps maintain signal integrity in crowded automation environments, such as robotic cells and motor drives, where electrical noise is a common concern.
UT0S20JCSL is ideal for intensive use in automation lines, robotics, conveyors, and outdoor equipment. Its IP68/69k sealing, shielded construction, and metal housing deliver reliable operation in humid, wash-down, or dust-rich environments. The 14–24 mm cable range supports diverse harnesses, enabling compact, rugged installations without re-engineering existing layouts.
The UT0S20JCSL meets RoHS and REACH environmental compliance and UL94 V0 flame rating, along with IP68/69k ingress protection. These certifications provide regulatory confidence for global deployments, support audits, and reduce compliance risk across manufacturing facilities that require durable, safety-rated connections.
The ROI stems from improved uptime due to robust ingress protection and EMI shielding, and from reduced maintenance as the sealing gland and strain-relief design resist wear. A single, versatile shell size (shell size 20) handling 14–24 mm cables lowers parts inventory and spares. Over the equipment lifecycle, this translates to lower total cost of ownership and more predictable performance.
