Eaton UT0S22JC UTO series metal IP68/69k connector - IP68/69k
Part Number: UT0S22JC
Quick Summary
UT0S22JC is a rugged connector designed for intensive use in demanding industrial environments. Engineers often wrestle with sealing integrity and cable strain under vibration; this design delivers durable shielding, robust sealing, and a reliable mating interface to mitigate field failures. It meets IP68/69k immersion protection, UL94 V0 flame rating, and RoHS/REACH environmental standards, helping you maintain safety and regulatory compliance. The solution also supports straightforward installation and long-term lifecycle value, making it suitable for automated lines, machine enclosures, and harsh outdoor applications.
Product Information
Extended Description

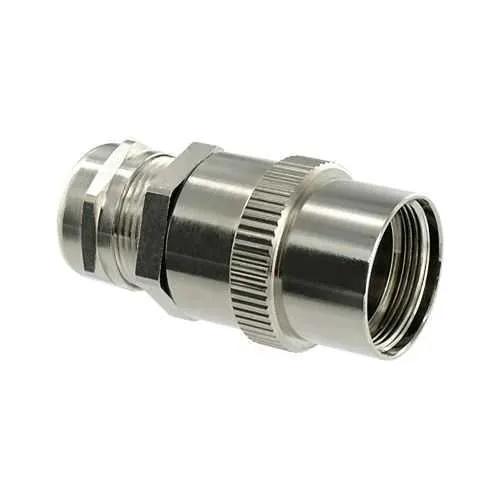

UT0S22JC Eaton: Shielded long metal cable gland with strain relief nut, size 22; UT0S22JC
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0S22JC
Fitted with:
Shielding
Environmental conditions
Flammability rating UL94 V0 RoHS REACH
Backshell angle
Straight
Backshell type
Sealing Gland
Shell size
22
Cable diameter - max
18 mm
Cable diameter - min
13.5 mm
Feature: Shielded metal housing and EMI protection → Business Impact: Reduces interference and signal integrity risk in rich EMI environments, enabling reliable data exchange and control in automated lines. Application: Outdoor conveyors and mining equipment where EMI resilience is critical. Feature: Sealing gland backshell with straight orientation → Business Impact: Simplifies panel mounting and cable routing, lowering installation time and field rework. Application: Control panels in factory floors with tight space constraints. Feature: Shell size 22 with 13.5–18 mm cable diameter range → Business Impact: Supports a broad range of cables without multiple adapters, reducing part variety and inventory. Application: Wiring of power/signal cables in automation equipment. Feature: Fitted with shielding and UL94 V0 RoHS REACH compliance → Business Impact: Ensures regulatory compliance and safety while protecting system performance in harsh environments. Application: Industrial automation, packaging equipment, and food/pharma lines requiring robust, compliant connectors. Feature: Backshell angle Straight and Sealing Gland type → Business Impact: Easier installation alignment and robust sealing under cable pull, reducing maintenance downtime. Application: Rebuilds and retrofits in existing line layouts with limited clearance.
Get a Quick Quote for a Eaton UT0S22JC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0S22JC?
Enquire Now
FAQs
To install UT0S22JC, verify the cable diameter falls within 13.5 to 18 mm and secure the cable with the strain relief nut. Attach the sealing backshell in the Straight orientation to ensure proper sealing, then mate the connector with the receptacle while ensuring the shielding remains continuous. Tighten to the manufacturer’s torque specs and confirm IP68/69k integrity after installation to prevent ingress during operation.
Key specs include a shell size of 22, cable diameter range from 13.5 to 18 mm, Fitted with shielding, Backshell type Sealing Gland, and Backshell angle Straight. Environmental protections include UL94 V0 flame rating with RoHS and REACH compliance. These features collectively support reliable operation in submerged or dusty environments while meeting essential safety and environmental requirements.
Yes. The UT0S22JC is designed for intensive use with IP68/69k immersion protection, offering robust sealing and shielding suitable for outdoor conveyors, mining, and outdoor automation. Its RoHS and REACH compliance, along with UL94 V0 flame rating, provide regulatory peace of mind for outdoor and hazardous-area applications, while the sealing gland backshell aids long-term reliability.
UT0S22JC complies with UL94 V0 flame rating, RoHS, and REACH. While data on CE or SIL are not specified for this model, the IP68/69k protection and shielding provide strong ruggedness for demanding environments. These certifications help meet safety, environmental, and regulatory requirements typical in automation and equipment manufacturing.
The UT0S22JC enhances uptime by delivering reliable sealing, shielding, and strain-relief compatibility, reducing field maintenance and rework. Its durable construction minimizes replacement frequency, while IP68/69k protection and regulatory compliance help prevent costly downtime in harsh environments. Over the equipment lifecycle, this translates to lower maintenance costs and higher process efficiency.
