Eaton UT0S22JCL Connector - IP68/69k Rating, Shielded
Part Number: UT0S22JCL
Quick Summary
UT0S22JCL is a shielded, metal IP68/69k connector designed for intensive-use industrial environments. It protects critical power and data links from water, dust, and vibration, reducing field rework and downtime. This rugged unit supports RoHS and REACH environmental standards and carries a UL94 V0 flame rating, ensuring safer installations in confined spaces. By combining robust shielding with a large strain-relief nut and straight backshell, it offers reliable interconnects for automation, robotics, and outdoor machinery while enabling simpler procurement and interoperability across equipment vendors.
Product Information
Extended Description

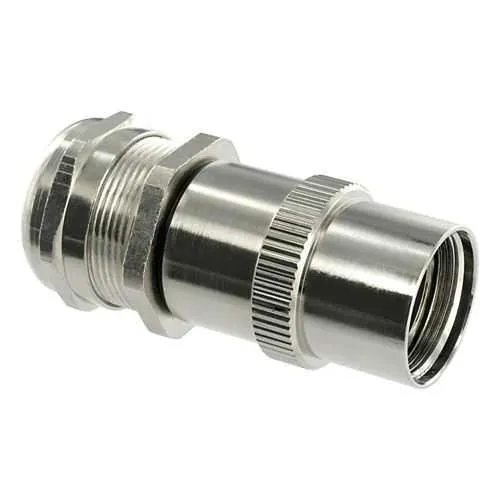

UT0S22JCL Eaton: Shielded long metal cable gland with large strain relief nut, size 22; UT0S22JCL
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0S22JCL
Fitted with:
Shielding
Environmental conditions
RoHS REACH Flammability rating UL94 V0
Backshell angle
Straight
Backshell type
Sealing Gland
Shell size
22
Cable diameter - max
24 mm
Cable diameter - min
17 mm
Feature: Shielded metal construction delivers EMI protection and robust ingress sealing. Benefits: Minimizes electrical noise and water/dust intrusion, improving signal integrity and equipment reliability in automated lines. Application: Suitable for robotic cells and harsh production environments where precision and uptime matter. Feature: Large strain-relief nut enhances cable retention under vibration and movement. Benefits: Reduces cable fatigue, lowers maintenance cycles, and extends interconnect life. Application: Ideal for CNC machines and material handling systems subject to dynamic loads. Feature: Shell size 22 with cable diameter range 17–24 mm. Benefits: Supports a broad variety of cable assemblies without custom adaptors, improving commissioning speed. Application: Common in control cabinets and machine builds needing flexible cabling. Feature: Backshell type Sealing Gland with Straight angle. Benefits: Streamlined installation and reliable sealing against ingress. Application: Panels and enclosures where straight connector routing is required. Feature: Fitted with Shielding and RoHS/REACH/UL94 V0 compliance. Benefits: Meets regulatory requirements, reduces risk, and smooths certification processes. Application: Suitable for regulated industries and equipment shipped globally.
Get a Quick Quote for a Eaton UT0S22JCL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0S22JCL?
Enquire Now
FAQs
UT0S22JCL accommodates cable diameters from 17 to 24 mm and uses a Sealing Gland backshell to provide robust ingress protection. The shielded metal body supports EMI containment for sensitive automation networks, while the large strain-relief nut minimizes cable movement. This combination ensures reliable performance in control cabinets, robotics, and outdoor machinery without sacrificing installation simplicity.
When installing UT0S22JCL, align with the straight backshell for straightforward panel mounting and seating. Use the sealing gland to achieve IP68/69k protection, and engage the large strain-relief nut to secure the cable sheath and prevent pull-out. Verify RoHS/REACH compliance for your region and ensure shielding is continuous to maintain EMI integrity on high-speed lines.
Yes. UT0S22JCL delivers IP68/69k ingress protection, making it suitable for wash-downs and outdoor use. Its RoHS and REACH compliance, plus UL94 V0 flame rating, further support safe operation in regulated environments. The shielded metal construction also helps mitigate EMI in noisy industrial settings, improving reliability in automation and machinery applications.
UT0S22JCL complies with IP68/69k ingress protection, RoHS, REACH, and UL94 V0 flammability ratings. While the data does not specify SIL or CE, these protections cover core regulatory and safety requirements for rugged industrial interconnects used in automation, robotics, and machinery where environmental and electrical safety are key concerns.
The combination of IP68/69k protection, shielded conductivity, and a robust strain-relief design reduces field failures, downtime, and maintenance costs. Its wide cable range simplifies cabling, accelerates commissioning, and supports longer service life in harsh environments, delivering lower total cost of ownership for automated systems and equipment fleets.
