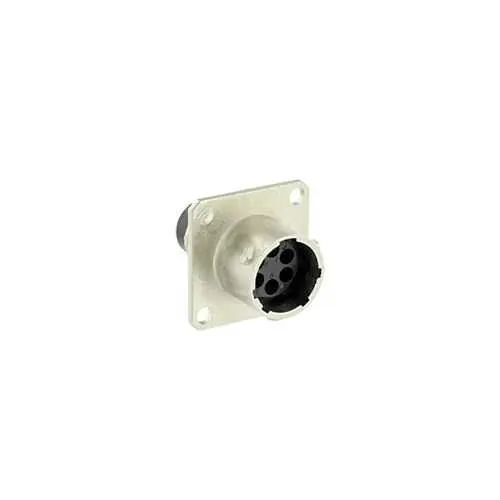

Eaton Souriau UT0W0106PWH Metal Receptacle IP67
Part Number: UT0W0106PWH
Quick Summary
Eaton Souriau UT0W0106PWH connector is a rugged metal receptacle designed for demanding industrial environments and harsh outdoor applications. The goal is to provide reliable, maintenance-friendly connectivity that minimizes downtime in tight panels and on mobile equipment. This IP67-rated solution aligns with UL 1977, RoHS and REACH requirements while supporting robust EMI shielding and long service life. By combining compact 33.2 mm length with a 6-contact configuration, it delivers both space efficiency and scalable connectivity for modern automation and machinery.
Product Information
Extended Description
UT0W0106PWH Eaton: Male square flange receptacle IP67, 96 h salt spray, keying W; UT0W0106PWH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W0106PWH
Product Length/Depth
33.2 mm
Product Height
23.8 mm
Product Width
23.8 mm
Product Weight
13.8 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
5 A UL 7 A IEC
Fitted with:
Shielding
Environmental conditions
REACH RoHS Fire & Smoke Flammability rating UL94 V0
Environmental resistance
Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against oil Resistant against gasoline Resistant against acid bath Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against mineral oil Resistant against basic bath
Test current
4 A CSA 7 A IEC 5 A UL
Test voltage
250 V UL 250 V CSA 80 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
6
Plating
Nickel
Shell material
Zinc alloy
Shell size
10
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
6
Number of cavity #20
6
Nut material
Aluminium
Salt spray
96 hour
Feature → Business Impact → Application. The UT0W0106PWH uses a shielded, metal IP67 housing to achieve significant ingress protection, reducing the risk of moisture-related failures in outdoor and dusty environments. This translates to lower maintenance costs and higher uptime in mobile machinery and robotic systems. The 1/3 Bayonet coupling provides quick, repeatable mating with reliable seals, accelerating installation and service during line changeovers in factories. With six crimp contacts and a nickel-plated shell on a zinc alloy body, it supports stable signal and power transmission while resisting corrosion in aggressive environments. Compatibility with standard crimp contacts and a polyamide insert ensures easy, cost-effective field termination and mounting. Operating from -40 °C to 105 °C and rated for 500 mating cycles, the connector withstands vibration and temperature swings typical in heavy industry, reducing total cost of ownership. Salt spray resistance for 96 hours and UL 1977 compliance give further assurance for long-term reliability in demanding applications such as material handling, mobile equipment, and outdoor automation.
Get a Quick Quote for a Eaton UT0W0106PWH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W0106PWH?
Enquire Now
FAQs
Yes. UT0W0106PWH is a 6-contact crimp receptacle with a 1/3 bayonet coupling and a square flange receptacle design. It supports standard crimp contacts and shielded wiring, enabling straightforward panel mounting and secure, EMI-protected connections with compatible accessories ordered separately.
The connector operates from -40 °C to 105 °C and provides IP67 ingress protection. It also withstands salt spray for 96 hours and includes compliance with RoHS, REACH, and UL 94 V0 flammability ratings, ensuring reliability in extreme industrial conditions.
Yes. The metal construction with IP67 sealing, shielded design, and robust vibration resistance makes it ideal for outdoor installations and mobile machinery like material handling, construction equipment, and robotics, where harsh weather and rough handling are common.
The UT0W0106PWH complies with UL 1977 for interconnect devices and UL 94 V0 for flammability, along with RoHS and REACH environmental compliance. IP67 protection and 500 mating cycles further ensure suitability for regulated industrial environments and long-term reliability.
Mount with the square flange receptacle orientation (W), use shielded crimp contacts, and leverage the 1/3 bayonet coupling for rapid mating. With 500 mating cycles and robust environmental protection, periodic checks on seals and shielding integrity help maintain peak performance and minimize unplanned downtime.
