Eaton UT0W0106PWH6 Metal IP68/69K Connector - 500 Cycles
Part Number: UT0W0106PWH6
Quick Summary
The Eaton Souriau UT0W0106PWH6 metal IP68/69K connector is designed for intensive use in harsh industrial environments. Engineers and procurement teams often contend with moisture, dust, and vibration that cause intermittent connections and costly downtime. This solution delivers IP68 sealing, UL 1977 compliance, and RoHS/REACH environmental certifications, enabling reliable performance in demanding settings. Its 6-position layout, 1/3 bayonet coupling, and ability to withstand -40 to 105 °C support scalable automation while reducing total cost of ownership. Designed for integration into industrial automation panels, robot arms, and heavy equipment, it aligns with common procurement and maintenance workflows.
Product Information
Extended Description

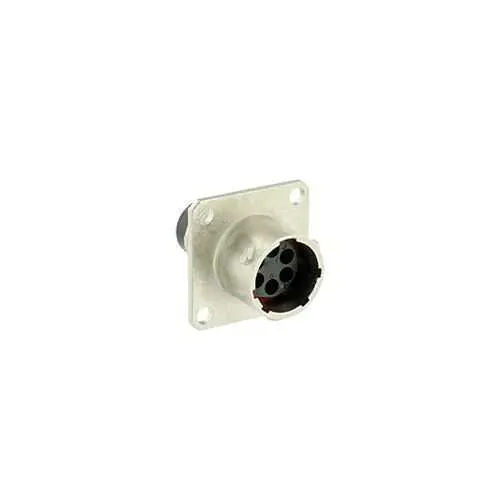

UT0W0106PWH6 Eaton: Male square flange receptacle IP68/69K, 96 h salt spray, keying W; UT0W0106PWH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W0106PWH6
Product Length/Depth
33.2 mm
Product Height
23.8 mm
Product Width
23.8 mm
Product Weight
13.8 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
5 A UL 7 A IEC
Fitted with:
Shielding
Environmental conditions
RoHS REACH Fire & Smoke Flammability rating UL94 V0
Environmental resistance
Resistant against oil Resistant against basic bath Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against gasoline Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against acid bath Resistant against mineral oil
Test current
7 A IEC 5 A UL 4 A CSA
Test voltage
250 V CSA 250 V UL 80 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
6
Plating
Nickel
Shell material
Zinc alloy
Shell size
10
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
6
Number of cavity #20
6
Nut material
Aluminium
Salt spray
96 hour
Feature: Extreme ingress protection and durability. The IP68/69K rating, 96-hour salt spray resistance, and rugged metal housing protect critical connections from washdowns, chemical exposure, and corrosive environments. Business impact: Minimized downtime and extended service life of field connections. Application: Robotic cells, conveyor systems, and heavy equipment in harsh plants benefit from reliable, maintenance-free operation. Keyword integration: IP68/69K connector, washdown-ready, rugged automation connectors. Feature: 6-contact layout with shielding. Nickel-plated zinc alloy shell houses a polyamide insert and shielding to improve EMI performance and signal integrity. Business impact: Enhanced control reliability and reduced electromagnetic interference in panel assemblies. Application: Industrial control panels and motor drive interfaces in automated lines. Keyword integration: 6-position connector, shielded receptacle, EMI protection. Feature: 1/3 bayonet coupling for fast mating. The quick-connect mechanism lowers maintenance time and allows rapid field servicing without tools. Business impact: Decreased downtime during line changeovers and routine inspections. Application: Robotic tooling and packaging lines requiring fast connector reconfiguration. Keyword integration: 1/3 Bayonet, quick mating, fast disconnect. Feature: Broad operating temperature and lifecycle. -40 to 105 °C operation and 500 mating cycles ensure performance across temperature swings and long service life. Business impact: Predictable reliability in outdoor and industrial environments with reduced replacement cost. Application: Foundry, automotive assembly, and outdoor equipment. Keyword integration: wide temperature range, high mating cycles, industrial durability. Feature: Regulatory compliance and material choices. RoHS and REACH compliance with UL94 V0 flammability, combined with UL 1977 safety alignment. Business impact: Simplified regulatory approvals and safer material choices for panel builds. Application: Machinery enclosures and automated systems requiring documented compliance. Keyword integration: RoHS/REACH, UL 1977, UL94 V0.
