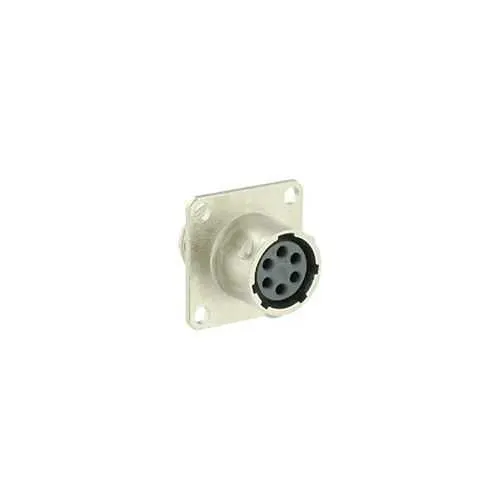

Eaton UT0W0106SWH Receptacle - IP68/69k Sealed Connector
Part Number: UT0W0106SWH
Quick Summary
UT0W0106SWH from Eaton is a metal IP68/69k connector receptacle designed for rugged industrial applications. This durable solution delivers secure mating and reliable performance in harsh conditions, reducing unplanned downtime and maintenance costs. Engineers often contend with inadequate seals, corrosion, and misalignment when wiring in dirty, wet, or outdoor environments; UT0W0106SWH addresses these challenges with robust sealing, corrosion resistance, and a shielded design. The product complies with UL 1977, RoHS and REACH standards, and offers a UL94 V0 flame rating, all while maintaining IP67/IP68 capability and 96-hour salt spray resistance. By combining high-reliability materials with a compact 6‑cavity layout, it supports faster assembly, better durability, and lower total cost of ownership for automation panels and control systems.
Product Information
Extended Description
UT0W0106SWH Eaton: Female square flange receptacle IP67, 96 h salt spray, keying W; UT0W0106SWH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W0106SWH
Product Length/Depth
25.2 mm
Product Height
23.8 mm
Product Width
23.8 mm
Product Weight
13.9 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
7 A IEC 5 A UL
Fitted with:
Shielding
Environmental conditions
REACH RoHS Fire & Smoke Flammability rating UL94 V0
Environmental resistance
Resistant against gasoline Resistant against oil Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against acid bath Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against mineral oil Resistant against basic bath
Test current
4 A CSA 5 A UL 7 A IEC
Test voltage
80 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
6
Plating
Nickel
Shell material
Zinc alloy
Shell size
10
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
6
Number of cavity #20
6
Nut material
Aluminium
Salt spray
96 hour
Feature: 6‑position layout with square flange receptacle and 1/3 bayonet coupling plus shielding. Business Impact: Enables secure mating, EMI protection, and compact integration for multi-signal and power paths. Application: Robotics, automated conveyors, and panel-mounted controllers where space and interference shielding matter. Feature: Robust environmental resistance including 96-hour salt spray and resistance to gasoline, oil, and mineral oil. Business Impact: Extends service life in harsh environments, reduces maintenance, and lowers replacement costs. Application: Outdoor machinery, mobile units, and wet/dusty production floors. Feature: Wide operating temperature range from -40 to 105 °C with 6 cavities and a 10-shell size. Business Impact: Consistent performance across temperature extremes and reliable operation in motors, drives, and controls. Application: Industrial automation in factories, process lines, and harsh climate installations. Feature: Electrical ratings of 7 A IEC / 5 A UL with 250 V max and 80 V IEC ratings; shielded contacts. Business Impact: Clear compliance with multiple standards and safer, predictable power transfer. Application: Control panels, sensing circuits, and low‑to‑mid power assemblies. Feature: Souriau UTO series compatibility with 1/3 bayonet coupling and square flange receptacle design; 500 mating cycles; nickel plating and zinc alloy shell. Business Impact: Durable, reusable connectors for high‑duty production lines, enabling faster maintenance and standardized spares. Application: Heavy machinery, material handling, and robotics cabinets.
