Eaton UT0W0106SWH6 Receptacle - IP68/69K Metal Connector
Part Number: UT0W0106SWH6
Quick Summary
UT0W0106SWH6 is a metal IP68/69K receptacle connector for harsh-environment automation applications. Industrial equipment often faces washdowns, dust, and vibration that degrade seals and drive maintenance costs. It meets IP68/IP69K sealing, UL 1977 compliance, and RoHS/REACH environmental standards, with 96-hour salt spray resistance and a rugged mating life. For OEMs and integrators, this square-flange receptacle from the Souriau UTO series delivers reliable mating, easy field service, and extended service intervals, thanks to 500 mating cycles and nickel-plated zinc alloy shell. Its 6-position, 1/3 Bayonet design supports compact yet robust connections in control panels, mobile machinery, and outdoor installations, while compatibility with crimp contacts and shielded layout reduces installation steps and inventory complexity.
Product Information
Extended Description

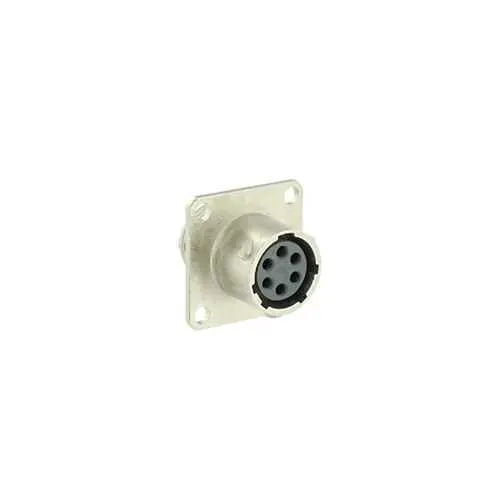

UT0W0106SWH6 Eaton: Female square flange receptacle IP68/69K, 96 h salt spray, keying W; UT0W0106SWH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W0106SWH6
Product Length/Depth
25.2 mm
Product Height
23.8 mm
Product Width
23.8 mm
Product Weight
13.9 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
5 A UL 7 A IEC
Fitted with:
Shielding
Environmental conditions
Flammability rating UL94 V0 Fire & Smoke RoHS REACH
Environmental resistance
Resistant against basic bath Resistant against acid bath Resistant against gasoline Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against mineral oil Resistant against oil
Test current
7 A IEC 5 A UL 4 A CSA
Test voltage
250 V CSA 250 V UL 80 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
6
Plating
Nickel
Shell material
Zinc alloy
Shell size
10
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
6
Number of cavity #20
6
Nut material
Aluminium
Salt spray
96 hour
Sealing and rugged construction deliver predictable performance in washdown and dust-prone environments. The IP68/IP69K protection and 96-hour salt spray resilience prevent ingress that can cause intermittent faults, corrosion, or insulation degradation. This makes the UT0W0106SWH6 ideal for outdoor control cabinets, mobile machinery, and harsh industrial plants where reliability directly reduces downtime and maintenance costs. The 6-position, 1/3 Bayonet coupling enables fast, secure mating with a compact footprint and positive lock. The design supports quick field assembly and robust retention even under vibration, enabling clean harness routing and fewer mis-matches during service. Applications include panel-mounted connectors and equipment in automotive, material handling, and energy automation. Electrical and life specs give practical design headroom: current ratings of 5 A UL and 7 A IEC, test current 7 A IEC, and 250 V test voltage across standard profiles. With 6 cavities and shielded contacts, engineers can run sensors, relays, and low-power actuators without overloading harness sections. Durable materials—nickel-plated zinc alloy shell and polyamide insert—offer corrosion resistance and stable performance across -40 to 105 C. The 500-mating-cycle life supports long equipment lifetimes in fleets of machines, reducing replacement and maintenance expenses while preserving signal integrity. Compatibility and installation advantages include crimp contact delivery, square flange receptacle geometry for easy panel mounting, and compatibility with the Souriau UTO ecosystem. The 6-position layout simplifies wiring and spares designers from matching different connector families, decreasing BOM variance and inventory footprint. Industry insights confirm that choosing a rugged, standards-compliant connector with verified salt spray resistance and robust sealing aligns with predictive maintenance strategies, improves uptime, and lowers total cost of ownership in sectors like energy, industrial automation, and mobile equipment.
