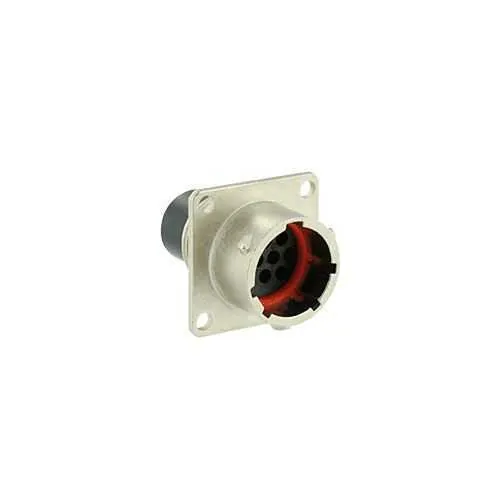

Eaton UT0W01210PH6 UTO Connector - IP68/69K
Part Number: UT0W01210PH6
Quick Summary
Eaton Souriau UTO series metal IP68/69K connector is a rugged, sealed solution for heavy industrial machinery and outdoor installations. Engineers often struggle with moisture, dust, and vibration causing intermittent connections and downtime. This receptacle meets IP68/IP69K protection, UL 1977 compliance, and RoHS/REACH requirements, delivering reliability and safety in harsh environments. Designed for quick installation with shielding and a square flange, it supports 10 crimp contacts and a 1/3 bayonet coupling for fast field service. Its compact 33.2 mm length and 26.2 mm footprint keep panel space in check while delivering high current in demanding automation lines.
Product Information
Extended Description
UT0W01210PH6 Eaton: Male square flange receptacle IP68/69K, 96 h salt spray; UT0W01210PH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01210PH6
Product Length/Depth
33.2 mm
Product Height
26.2 mm
Product Width
26.2 mm
Product Weight
21 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
6 A IEC 5 A UL
Fitted with:
Shielding
Environmental conditions
REACH Flammability rating UL94 V0 RoHS Fire & Smoke
Environmental resistance
Resistant against basic bath Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against oil Resistant against acid bath Resistant against mineral oil Resistant against gasoline Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I
Test current
5 A UL 4 A CSA 6 A IEC
Test voltage
40 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Plating
Nickel
Shell material
Zinc alloy
Shell size
12
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
96 hour
Feature: Zinc alloy shell with nickel plating, polyamide insert, 10-position layout, and square flange receptacle. Business Impact: Robust mechanical strength, excellent corrosion resistance, and EMI shielding that protect critical signals in tough environments. Application: Outdoor machinery, mining equipment, and industrial panels where reliability and long service life matter. Feature: IP68/IP69K rated sealing with 96 h salt spray resistance. Business Impact: Sustained performance in washdown and high-dust applications, reducing maintenance cycles and downtime. Application: Food processing lines, chemical plants, and offshore environments.Feature: 6 A IEC / 5 A UL current rating; 5 A CSA support; 10-contact configuration. Business Impact: Supports moderate power and multiple circuit needs without multiple connectors, simplifying wiring and reducing assembly time. Application: Servo drives, actuators, and distributed control panels.Feature: 1/3 Bayonet coupling with shielding. Business Impact: Easy, quick mating and reliable retention even in vibration, lowering field service time and operator effort. Application: Field-installable harnesses and modular machine interfaces.Feature: Operating range from -40 °C to 105 °C and MIL-C-26482 I shock and vibration tolerance. Business Impact: Durable in extreme environments, ensuring uptime in harsh industrial settings. Application: Heavy-duty automation, mining equipment, and outdoor installations.Feature: 500 mating cycles, nickel plating, and zinc alloy shell with aluminum nut. Business Impact: Long lifecycle and repeatable performance with minimal wear, lowering total cost of ownership. Application: Reusable connector assemblies in production lines and machinery that require frequent mating.
Get a Quick Quote for a Eaton UT0W01210PH6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01210PH6?
Enquire Now
FAQs
Mount the square flange receptacle using the supplied aluminium nut and secure the housing with the 1/3 Bayonet coupling. Use crimp contacts for the 10 signal paths, ensure shielding is engaged, and verify the N orientation for correct mating. Follow standard IP68 sealing procedures to preserve ingress protection during panel installation.
The connector provides 6 A IEC and 5 A UL current ratings with a test current of 5 A UL / 4 A CSA / 6 A IEC, and test voltage of 40 V IEC / 250 V CSA / 250 V UL. It carries 10 contact positions, with crimp contact delivery and shielding for EMI protection.
Yes. It carries IP68 protection (IP68/69K capability) and a 96-hour salt spray resistance, plus RoHS, REACH, and UL 1977 compliance, making it suitable for washdown, chemical, and outdoor industrial applications.
Key certifications include IP68/IP69K protection, UL 1977 compliance, RoHS and REACH environmental compliance, UL 94 V0 flame rating, and MIL-C-26482 I vibration and shock performance for rugged industrial use.
With 500 mating cycles and a nickel-plated zinc alloy shell, the connector offers durable wear resistance and extended service life, reducing replacement frequency and maintenance costs in demanding automation environments.
