Eaton UT0W01210PWH UTO Connector - IP68/69k
Part Number: UT0W01210PWH
Quick Summary
The Eaton Souriau UTO series metal IP68/69k connector is a rugged, high-reliability power and signal interface for demanding industrial environments. Engineers face corrosion, vibration, and limited IP protection in harsh outdoor and mobile equipment; this connector delivers sealing, durable nickel-plated zinc alloy housing, and resilient insert materials to reduce field failures. Key certifications include IP67 protection, UL 94 V0 flammability rating, and RoHS/REACH compliance, offering regulator-friendly performance and peace of mind for plant and equipment OEMs. With a compact 10-contact layout and a 1/3 bayonet coupling, it enables straightforward installation, easier maintenance, and scalable configurations across mixed fleets.
Product Information
Extended Description

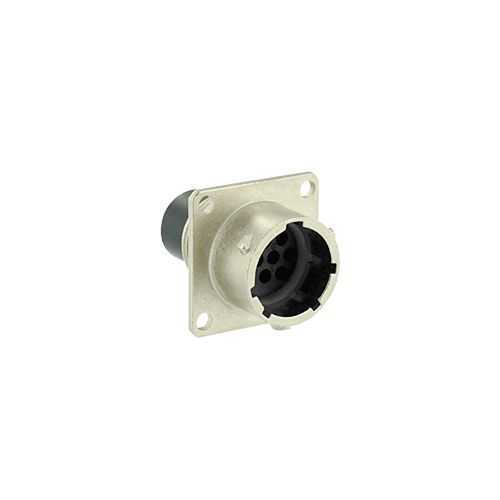

UT0W01210PWH Eaton: Male square flange receptacle IP67, 96 h salt spray, keying W; UT0W01210PWH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01210PWH
Product Length/Depth
33.2 mm
Product Height
26.2 mm
Product Width
26.2 mm
Product Weight
21 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
6 A IEC 5 A UL
Fitted with:
Shielding
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 RoHS REACH
Environmental resistance
Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against mineral oil Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against gasoline Resistant against basic bath Resistant against acid bath Resistant against oil
Test current
6 A IEC 4 A CSA 5 A UL
Test voltage
250 V UL 40 V IEC 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
10
Plating
Nickel
Shell material
Zinc alloy
Shell size
12
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
96 hour
Sealed metal shell with robust IP67 protection and salt spray resistance reduces ingress and prolongs service life, enabling downtime-averse operation in outdoor and industrial settings. Business impact: lower maintenance costs and fewer unplanned outages in harsh environments; application: mobile machinery, outdoor control panels, and automation racks. The 10-contact, square flange receptacle layout supports high-density wiring without increasing panel footprint, improving installation efficiency and reducing wiring errors in automated lines. Application: heavy equipment and process automation where space is at a premium. The 1/3 bayonet coupling delivers fast, tool-free mating and unmating, which translates to shorter rigging times and safer, more repeatable field connections. Business impact: faster commissioning and reduced labor costs on multi-site deployments. The connector’s nickel-plated zinc alloy shell and polyamide insert resist shock, vibration, and chemical exposure, enhancing reliability in demanding environments. Application: mining, material handling, and rugged robotics where EMI shielding and durability matter. Operating temperature range from -40 to 105 °C, plus 50 g shock and 15 g vibration tolerance, ensures performance across extreme industrial conditions. Business impact: broadened application envelope and fewer temperature-related failures; application: process plants, outdoors, and vehicle-mounted systems. RoHS and REACH compliance, UL 94 V0 flammability, and UL 1977 support regulatory alignment and safer product integration. Application: OEMs seeking compliant, long-term supplier partnerships. The 10-contact configuration, shielded design, and crimp contact delivery support straightforward, scalable installation with existing harnesses. Business impact: reduced tools, faster field upgrades, and compatibility with standard automation cabling. Industry insight: for controlled environments and heavy-duty machinery, durable solutions like this connector reduce total cost of ownership by stabilizing performance over 500 mating cycles and beyond.
Get a Quick Quote for a Eaton UT0W01210PWH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01210PWH?
Enquire Now
FAQs
UT0W01210PWH uses a square flange receptacle and 10-crimp contacts with a 1/3 bayonet coupling for fast, tool-free mating. Ensure correct connector orientation (W) and attach the panel mounting hardware per the enclosure spec. Note that receptacle contacts are crimped and the connector accessory option is not delivered and must be ordered separately.
The connector supports up to 6 A IEC current rating (5 A UL) with a test current of 6 A IEC / 4 A CSA / 5 A UL, and voltage ratings of 250 V UL / 40 V IEC / 250 V CSA. It provides 10 contacts in a compact, shielded receptacle suitable for mixed power and signal applications.
Yes. It offers robust protection with IP67 rating, 96-hour salt spray resistance, and a wide operating temperature range from -40 °C to 105 °C. It also withstands 50 g shock and 15 g vibrations, making it suitable for outdoor, vehicle-mounted, and mobile machinery in demanding settings.
The connector complies with RoHS and REACH, includes UL 94 V0 flammability certification, and UL 1977 for nonlocking connectors. These certifications support safer integration into regulated industrial systems and help ensure market-ready certification packages.
With a mating lifecycle rating of 500 cycles, nickel-plated zinc alloy shell, and shielding, the UT0W01210PWH delivers durable performance and lower replacement frequency in high-cycle applications, reducing downtime and maintenance costs for fleets of equipment.
