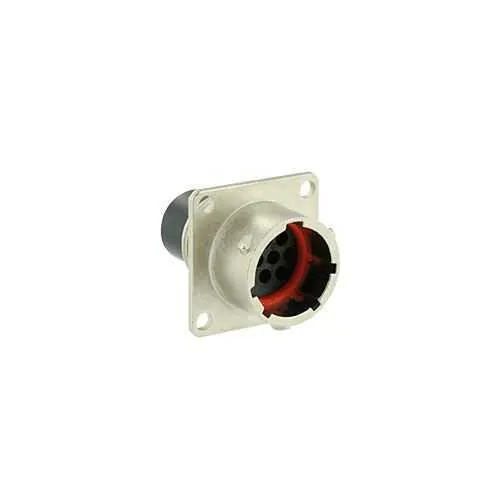

Eaton UT0W01210PWH6 Connector - IP68/IP69K
Part Number: UT0W01210PWH6
Quick Summary
The Eaton Souriau UT0W01210PWH6 is a metal IP68/69K connector designed for intensive use in harsh environments. Engineers often face moisture ingress, corrosion, and unplanned downtime when fielded connectors fail in outdoor, washdown, or high-vibration applications. This receptacle delivers UL 1977 compliance, IP68 sealing, and 96-hour salt spray resistance, ensuring reliable operation across temperatures and in harsh chemical conditions. With RoHS and REACH environmental compliance, it also aligns with modern supply chain sustainability goals. For OEMs and integrators, the rugged shell and shielded, crimp contacts enable durable, maintenance-friendly connector assemblies in industrial automation, robotics, and heavy equipment environments.
Product Information
Extended Description
UT0W01210PWH6 Eaton: Male square flange receptacle IP68/69K, 96 h salt spray, keying W; UT0W01210PWH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01210PWH6
Product Length/Depth
33.2 mm
Product Height
26.2 mm
Product Width
26.2 mm
Product Weight
21 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
6 A IEC 5 A UL
Fitted with:
Shielding
Environmental conditions
Flammability rating UL94 V0 RoHS Fire & Smoke REACH
Environmental resistance
Resistant against gasoline Resistant against acid bath Resistant against mineral oil Resistant against basic bath Shock resistance 50g, 11ms per MIL-C-26482 I Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against oil
Test current
6 A IEC 4 A CSA 5 A UL
Test voltage
250 V CSA 250 V UL 40 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Plating
Nickel
Shell material
Zinc alloy
Shell size
12
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
96 hour
Feature → Business Impact → Application: The UT0W01210PWH6 uses a zinc alloy shell with a nickel finish, delivering robust mechanical strength and corrosion resistance in demanding industrial settings, which reduces replacement costs and downtime. This design supports a 1/3 bayonet coupling and square flange receptacle configuration, enabling quick, vibration-resistant mating during panel-mounted installations in wind turbines, conveyors, or packaging machines. The 10-pin, crimp-contact layout offers reliable signal and power delivery within a compact 33.2 mm length and 26.2 mm width, improving space utilization in control cabinets and machine housings. With a mating cycle rating of 500, technicians benefit from predictable maintenance cycles and longer service life, especially in humid environments. The insert material (polyamide) and nickel plating provide insulation and a low-friction interface for repeated connections, while the connector’s IP68 rating protects against water, dust, and temporary immersion, supporting compliance during routine washdowns. The combination of UL 1977 compliance, RoHS, and REACH ensures regulatory alignment for medical equipment, food processing, and automotive applications, reducing risk in supplier audits. Compatibility with shielded cables and standard crimp tooling streamlines installation, accelerates time-to-connect, and reduces total cost of ownership across large-scale automation projects.
