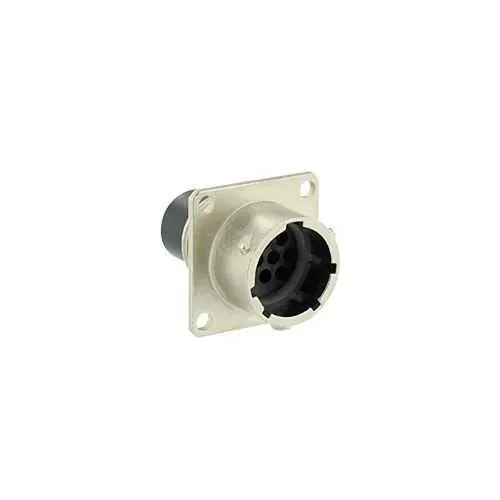

Eaton UT0W01210PXH Connector - IP68/69k, 10-contact Receptacle
Part Number: UT0W01210PXH
Quick Summary
The Eaton UT0W01210PXH connector delivers robust, metal IP68/69k performance for harsh industrial automation environments. Engineers often fight corrosion, water ingress, and downtime when selecting rugged interconnects for machine tools and conveyors. This unit offers IP67 protection, 96-hour salt spray resistance, and up to 500 mating cycles, with UL 1977 compliance for safety. In practice, that means faster field installs, longer service life in dirty environments, and lower total cost of ownership. Beyond these specs, the 10-contact, square-flange receptacle aligns with Souriau UTO series standards, enabling reliable shielding and easy maintenance for demanding industrial applications.
Product Information
Extended Description
UT0W01210PXH Eaton: Male square flange receptacle IP67, 96 h salt spray, keying X; UT0W01210PXH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01210PXH
Product Length/Depth
33.2 mm
Product Height
26.2 mm
Product Width
26.2 mm
Product Weight
21 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
6 A IEC 5 A UL
Fitted with:
Shielding
Environmental conditions
RoHS REACH Fire & Smoke Flammability rating UL94 V0
Environmental resistance
Resistant against acid bath Resistant against oil Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against basic bath Resistant against gasoline Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against mineral oil
Test current
4 A CSA 6 A IEC 5 A UL
Test voltage
250 V CSA 40 V IEC 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
10
Plating
Nickel
Shell material
Zinc alloy
Shell size
12
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
96 hour
Feature: IP67 protection and rugged metal shell → Business impact: Minimizes ingress-related failures and extends equipment uptime in dusty or damp environments. Application: Ideal for machine tools, conveyors, and robotics where protection and reliability are essential. Feature: 10-crimp contact insert with 1/3 Bayonet coupling → Business impact: Faster assembly and secure mating, reducing field service time and maintenance costs. Application: Panel-mounted interconnects in automation cabinets and control stations. Feature: Shielding and nickel-plated zinc alloy shell → Business impact: Superior EMI suppression and corrosion resistance for clean signal integrity in industrial floors. Application: Shielded interconnects in high-noise environments. Feature: Operating temperature range -40 °C to 105 °C → Business impact: Broad usability across temperature swings without performance loss. Application: Outdoor or harsh indoor installations. Feature: 500 mating cycles → Business impact: Long-term durability lowers replacement costs and downtime. Application: Frequent connection/disconnection scenarios in assembly lines.
Get a Quick Quote for a Eaton UT0W01210PXH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01210PXH?
Enquire Now
FAQs
UT0W01210PXH is a Souriau UTO series metal receptacle designed to match the UTO family’s mounting and mating geometry. With a square flange receptacle, 10 contacts, and a 1/3 bayonet coupling, it integrates into standard UTO panels and mating interfaces, enabling plug-and-play replacement without modifying existing housings. This compatibility minimizes retrofit risk and ensures consistent mating performance across 계 installed equipment.
The connector delivers IP67 protection with 96-hour salt spray resistance, operating from -40 to 105 °C, and nickel-plated zinc alloy housing. RoHS and REACH compliance plus UL 94 V0 flammability rating add safety and regulatory assurance. These features collectively reduce corrosion risk, EMI exposure, and fire hazards, supporting long-term, maintenance-light operation in factories, packaging lines, and outdoor installations.
Yes. The UT0W01210PXH complies with UL 1977 as part of its compliance profile, including overvoltage category III and pollution degree III guidelines. This alignment supports safe interconnection in industrial controls, reduces risk of regulatory non-compliance, and helps procurement teams justify the purchase in safety-critical automation projects.
Key installation considerations include using crimp contact terminations and the 1/3 bayonet coupling for secure mating, with a square flange receptacle for straightforward panel mounting. The shell is zinc alloy with nickel plating for durability, and the insert material is polyamide for electrical reliability. Ensure compatible mating connectors and proper torque on mounting hardware to maintain IP protection and EMI shielding.
The 500 mating-cycle life, rugged shielding, and corrosion resistance translate to lower replacement and maintenance costs over the service life of automated equipment. High reliability reduces unplanned downtime, improves line throughput, and lowers total cost of ownership in repetitive assembly, packaging, and robotic systems where stable, long-lasting interconnects matter most.
