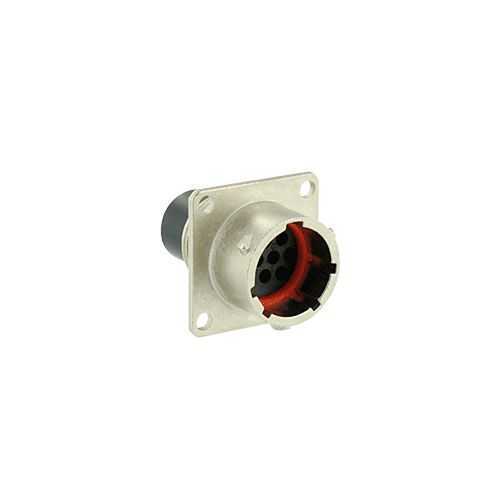

Eaton UT0W01210PXH6 Receptacle - IP68/69K, 10 contacts
Part Number: UT0W01210PXH6
Quick Summary
Eaton UT0W01210PXH6 Receptacle provides rugged, reliable electrical connections for harsh industrial environments. Engineers often struggle with maintaining seal integrity and durable mating after repeated washdowns, salt exposure, and vibrations. This design delivers IP68/IP69K protection, 96-hour salt-spray resistance, and UL 1977 compliance, helping you meet stringent safety and reliability requirements. By leveraging its 10-contact configuration, nickel-plated shell, and 1/3 bayonet coupling, it enables fast field assembly, low maintenance, and long service life, supporting reduced downtime and total cost of ownership in automation panels and heavy equipment.
Product Information
Extended Description
UT0W01210PXH6 Eaton: Male square flange receptacle IP68/69K, 96 h salt spray, keying X; UT0W01210PXH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01210PXH6
Product Length/Depth
33.2 mm
Product Height
26.2 mm
Product Width
26.2 mm
Product Weight
21 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
5 A UL 6 A IEC
Fitted with:
Shielding
Environmental conditions
REACH Flammability rating UL94 V0 RoHS Fire & Smoke
Environmental resistance
Resistant against acid bath Resistant against oil Resistant against mineral oil Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against gasoline Resistant against basic bath Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I
Test current
5 A UL 4 A CSA 6 A IEC
Test voltage
40 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Plating
Nickel
Shell material
Zinc alloy
Shell size
12
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
96 hour
IP68/IP69K sealing and rugged metal housing deliver reliable performance in washdown and outdoor environments, reducing leakage risk and preventing downtime in automated systems. The 10-contact arrangement supports compact, high-density connectivity while maintaining a 5 A UL and 6 A IEC current rating, enabling efficient signal and small power transmission with a compact footprint. The 1/3 bayonet coupling provides quick, vibration-resistant mating, improving现场安装效率 and minimizing installation time on crowded panels. Nickel-plated zinc alloy shell and polyamide insert enhance corrosion resistance and durability, translating to longer service intervals in corrosive environments and demanding duty cycles. A square flange receptacle with aluminium nuts simplifies panel mounting and ensures robust, repeatable sealing, even after heavy vibration. Operating from -40 °C to 105 °C, and meeting REACH, RoHS, and UL94 V0 requirements, this connector supports wide industrial deployments while controlling compliance risk. The UT0 series’ 500 mating cycles support long-term reliability in lifecycle-critical applications, with shielding reducing EMI susceptibility in noisy industrial settings.
