Eaton UT0W01210PYH Connector - IP68/69k
Part Number: UT0W01210PYH
Quick Summary
Eaton UT0W01210PYH is a rugged metal IP68/69k connector for harsh industrial environments. Engineers struggle with moisture ingress, dirt, and frequent mating cycles that threaten uptime and maintenance costs. Compliance with UL 1977, RoHS, REACH, and UL94 V0 enhances safety, environmental responsibility, and long-term reliability in demanding applications, while the shielded, crimp-contact design supports robust EMI performance. For OEMs and integrators, this solution offers concrete business value through extended service intervals, easier field servicing, and dependable operation in outdoor or harsh indoor environments.
Product Information
Extended Description

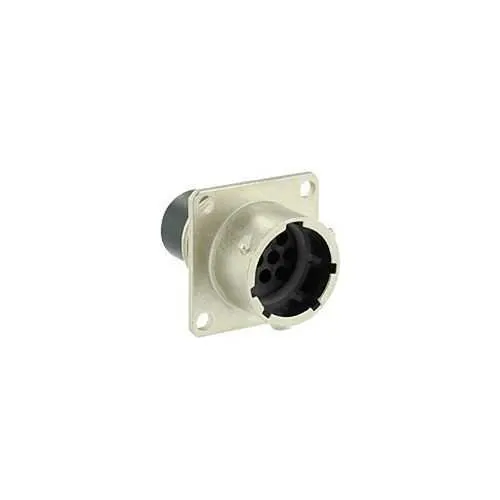

UT0W01210PYH Eaton: Male square flange receptacle IP67, 96 h salt spray, keying Y; UT0W01210PYH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01210PYH
Product Length/Depth
33.2 mm
Product Height
26.2 mm
Product Width
26.2 mm
Product Weight
21 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
6 A IEC 5 A UL
Fitted with:
Shielding
Environmental conditions
RoHS Fire & Smoke Flammability rating UL94 V0 REACH
Environmental resistance
Resistant against acid bath Resistant against oil Resistant against basic bath Resistant against mineral oil Resistant against gasoline Shock resistance 50g, 11ms per MIL-C-26482 I Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I
Test current
6 A IEC 4 A CSA 5 A UL
Test voltage
250 V CSA 250 V UL 40 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
10
Plating
Nickel
Shell material
Zinc alloy
Shell size
12
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
96 hour
Feature: Rugged metal housing with zinc alloy shell and nickel plating provides high mechanical strength and corrosion resistance. Business Impact: Reduces field maintenance needs and extends product life in outdoor and wash-down environments. Application: Suitable for harsh outdoor automation cabinets and heavy-wac systems where durability is critical. Feature: IP67 degree of protection with 96-hour salt spray resistance and 105 °C operating capability. Business Impact: Ensures reliable operation across wide temperature ranges and exposure to water, oils, and dust, lowering downtime. Application: Outdoor plants, mining equipment, and containerized automation. Feature: ten-position square flange receptacle with 1/3 bayonet coupling and shielded crimp contacts. Business Impact: Enables fast, tool-free mating and secure electrical integrity while maintaining signal fidelity under vibration. Application: Control panels and machine auxiliaries with frequent connector cycling. Feature: Mating cycles of 500 and mating orientation Y deliver predictable life span and alignment. Business Impact: Improves maintenance planning and reduces unexpected connector failures. Application: High-cycle automation interfaces in production lines. Feature: Wide operating temperature range (-40 °C to 105 °C) and certified electrical specs (6 A IEC, 5 A UL; 250 V ratings). Business Impact: Supports reliable performance in extreme plant conditions and across international standards. Application: Industrial automation, process equipment, and field deployments that demand rigorous electrical safety.
Get a Quick Quote for a Eaton UT0W01210PYH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01210PYH?
Enquire Now
FAQs
Yes. UT0W01210PYH is designed as a square flange receptacle with a 1/3 bayonet coupling, ensuring quick mating with compatible Souriau UT0 modular adapters. The 10-contact layout and shielded crimp contacts support reliable electrical connections in control cabinets and machine interfaces, while maintaining proper alignment and seal integrity during installation.
The connector provides a current rating of 6 A (IEC) and 5 A (UL), with a test current of 6 A (IEC) and 4 A (CSA) or 5 A (UL) as applicable. It is rated for up to 250 V in CSA/UL, and 40 V in IEC, with a maximum operating temperature range from -40 °C to 105 °C, making it suitable for demanding industrial environments.
Yes. The connector features a zinc alloy shell with nickel plating, a polyamide insert, and an IP67 protection rating, plus 96-hour salt spray resistance. These characteristics deliver strong moisture, dust, and chemical resistance, ideal for outdoor control panels, mining equipment, and rugged automation installations.
This connector complies with UL 1977, RoHS, REACH, and UL94 V0. These certifications support safety and environmental compliance in industrial settings, helping to meet regulatory requirements for global deployments and ensuring safer use in food, healthcare, or automotive-adjacent applications where applicable.
With 500 mating cycles and durable shielding, the UT0W01210PYH provides predictable lifecycle performance and reduced maintenance intervals. Its robust materials and EMI shielding minimize downtime due to wear or interference, making it a cost-effective choice for high-cycle automation lines and critical control interfaces.
