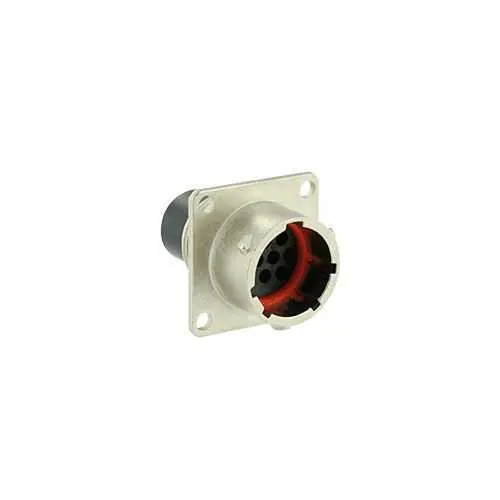

Eaton UT0W01210PYH6 Receptacle - IP68/69K Shielding
Part Number: UT0W01210PYH6
Quick Summary
The Eaton Souriau UTO series metal IP68/69K connector provides rugged, reliable interconnections for intensive use in harsh industrial environments. It helps mitigate maintenance downtime and corrosion risk in demanding applications. With IP68/IP69K protection, UL 1977 compliance, and RoHS/REACH sustainability, this receptacle delivers proven resilience across equipment used in food processing, automation lines, and outdoor machinery. Its compact 10-contact arrangement, 33.2 mm length, and 500 mating cycles support fast installation and long lifecycle, helping OEMs reduce total cost of ownership.
Product Information
Extended Description
UT0W01210PYH6 Eaton: Male square flange receptacle IP68/69K, 96 h salt spray, keying Y; UT0W01210PYH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01210PYH6
Product Length/Depth
33.2 mm
Product Height
26.2 mm
Product Width
26.2 mm
Product Weight
21 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
5 A UL 6 A IEC
Fitted with:
Shielding
Environmental conditions
Flammability rating UL94 V0 REACH RoHS Fire & Smoke
Environmental resistance
Resistant against basic bath Resistant against acid bath Resistant against oil Resistant against mineral oil Shock resistance 50g, 11ms per MIL-C-26482 I Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against gasoline
Test current
4 A CSA 6 A IEC 5 A UL
Test voltage
250 V UL 40 V IEC 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Plating
Nickel
Shell material
Zinc alloy
Shell size
12
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
96 hour
Sealed metal shell with IP68 protection and 96-hour salt spray resistance ensures reliability in washdown and outdoor environments, reducing corrosion-related failures and maintenance costs in packaging lines and outdoor machinery. The 5 A UL / 6 A IEC current rating, coupled with a 4 A/6 A/5 A test current profile, delivers dependable power delivery for sensors, actuators, and control units, while supporting efficient panel layouts. The square flange receptacle, 1/3 bayonet coupling, and 10-position layout enable straightforward mating, quick field installation, and robust retention in busy automation lines. Nickel plating on a zinc alloy shell and polyamide insert provide durable EMI shielding and chemical resistance, meeting UL94 V0 and RoHS requirements for regulated industries. Accessory options are available to tailor shielding, mating, and protection levels, with a compact footprint (shell size 12) and aluminium nut ensuring reliable mechanical fastening. Operating temperature range of -40 to 105 °C and 500 mating cycles translate to a long service life with predictable maintenance windows, while the 96-hour salt spray rating confirms resilience against corrosion in challenging environments.
Get a Quick Quote for a Eaton UT0W01210PYH6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01210PYH6?
Enquire Now
FAQs
Install the UT0W01210PYH6 as a square flange receptacle using the mounting holes and aluminium nut. Utilize the 1/3 Bayonet coupling for quick, secure mating, ensuring the orientation set to Y. Verify shielded contacts are properly crimped to maintain EMI performance, and test under operating temperature ranges to confirm full function after installation.
The connector is rated for 5 A UL and 6 A IEC, with a test current of 4 A UL/IEC and test voltage up to 250 V. It uses crimp contact delivery and supports 10 positions in a 10-cavity layout, making it suitable for compact sensor and actuator bundles in automation systems.
Yes. It features IP68 protection with 96-hour salt spray resistance, a zinc alloy shell, and a polyamide insert, all contributing to corrosion resistance. Compliance with UL 1977 and RoHS/REACH further supports use in regulated environments such as food processing and outdoor equipment exposed to moisture.
Key certifications include UL 1977, UL94 V0 flammability rating, RoHS and REACH compliance, and IP68/IP69K ingress protection. The product also aligns with overvoltage category III and pollution degree III for electrical safety in commercial and industrial installations.
The UT0W01210PYH6 supports up to 500 mating cycles, providing predictable lifecycle performance for OEM assemblies. Shielding and robust materials reduce EMI-related issues, while the compact design minimizes maintenance footprint and accelerates field servicing, contributing to reduced downtime and improved total cost of ownership.
