Eaton UT0W01210SH IP68/69k Metal Connector IP68/69k
Part Number: UT0W01210SH
Quick Summary
The Eaton UT0W01210SH metal IP68/69k connector delivers rugged, high-integrity connections for harsh industrial environments. In vibration-heavy settings or equipment exposed to oil and dust, traditional connectors can loosen, corrode, or require costly maintenance; a durable seal and robust housing mitigate these issues. With IP67 sealing, UL 1977 compliance, and RoHS/REACH conformance, it combines safety and sustainability with dependable performance. This shielded, square flange receptacle supports reliable automation deployment while offering strong lifecycle value for panel builders and OEMs seeking robust, compatible connectivity.
Product Information
Extended Description

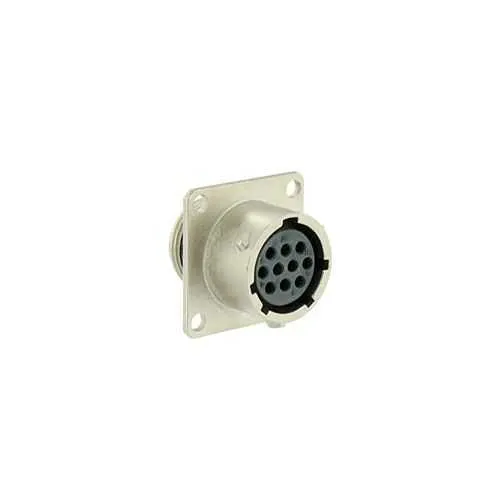

UT0W01210SH Eaton: Female square flange receptacle IP67, 96 h salt spray; UT0W01210SH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01210SH
Product Length/Depth
25.2 mm
Product Height
26.2 mm
Product Width
26.2 mm
Product Weight
21 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
6 A IEC 5 A UL
Fitted with:
Shielding
Environmental conditions
Fire & Smoke RoHS Flammability rating UL94 V0 REACH
Environmental resistance
Resistant against oil Resistant against gasoline Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against mineral oil Resistant against basic bath Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against acid bath
Test current
4 A CSA 6 A IEC 5 A UL
Test voltage
40 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
10
Plating
Nickel
Shell material
Zinc alloy
Shell size
12
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
96 hour
Feature: IP67 protection and metal shell with 1/3 bayonet coupling → Business Impact: Ensures dependable sealing against dust and ingress in tough environments, reducing field failures → Application: Industrial machinery and outdoor installations with exposure to moisture. Feature: 10-position, crimp contact layout → Business Impact: Supports complex signal and power needs in a single connector, cutting the number of interfaces and simplifying wiring → Application: Robotic controllers, CNCs, and centralized control panels. Feature: Shielding and nickel-plated zinc alloy shell → Business Impact: EMI/RFI protection and corrosion resistance, extending service life in oil, fuel, or mineral oil atmospheres → Application: Mining, hydraulic systems, and automotive assembly lines. Feature: Wide operating temperature range from -40 °C to 105 °C → Business Impact: Maintains performance across cold starts and high-temperature cycles, reducing climate-related failures → Application: Outdoor equipment, substations, and steel mills. Feature: 500 mating cycles and robust insert materials (polyamide) with aluminum nut → Business Impact: Predictable lifecycle cost and durable maintenance windows, lowering total cost of ownership → Application: OEM cabinets, machine enclosures, and rugged lab gear. Feature: 25.2 mm length, 26.2 mm height/width, 21 g weight, square flange receptacle → Business Impact: Compact footprint with straightforward mounting and installation, speeding panel integration → Application: Space-constrained control panels and retrofits. Compatibility and installation advantages: Shielded design and clear mating orientation (N) simplify field assembly, while the option to order connectors/accessories separately enables scalable configurations across product lines.
