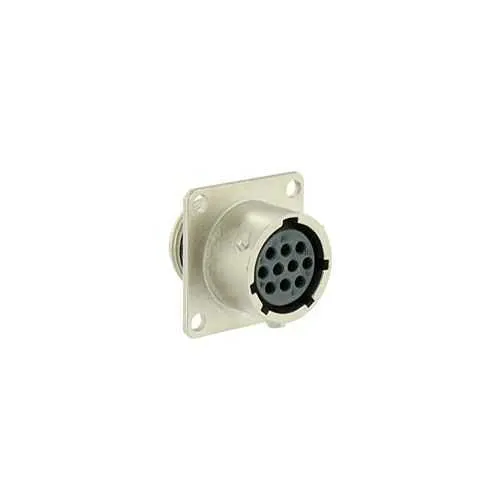

Eaton UT0W01210SXH6 IP68/69K Receptacle - 96 h Salt Spray
Part Number: UT0W01210SXH6
Quick Summary
The Eaton UT0W01210SXH6 IP68/69K receptacle delivers rugged, reliable connectivity for harsh industrial environments such as outdoor machinery. In demanding installations, operators often struggle with ingress, corrosion, and costly downtime due to failed seals. This metal IP68/69K receptacle provides seal integrity under challenging conditions while withstanding 96-hour salt spray and 50g shock per MIL-C-26482. Key certifications include UL 1977, RoHS compliance, and UL94 V0 flammability, underscoring safe, compliant performance in machine automation. Designed for modular automation systems and heavy equipment, it supports a 5 A current rating (6 A test current) and a 10-position layout, enabling compact, scalable wiring schemes and streamlined procurement for industrial teams.
Product Information
Extended Description
UT0W01210SXH6 Eaton: Female square flange receptacle IP68/69K, 96 h salt spray, keying X; UT0W01210SXH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01210SXH6
Product Length/Depth
25.2 mm
Product Height
26.2 mm
Product Width
26.2 mm
Product Weight
21 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
5 A UL 6 A IEC
Fitted with:
Shielding
Environmental conditions
REACH Flammability rating UL94 V0 Fire & Smoke RoHS
Environmental resistance
Resistant against mineral oil Shock resistance 50g, 11ms per MIL-C-26482 I Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against oil Resistant against gasoline Resistant against basic bath Resistant against acid bath
Test current
6 A IEC 4 A CSA 5 A UL
Test voltage
40 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Plating
Nickel
Shell material
Zinc alloy
Shell size
12
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
96 hour
Feature: Metal shell with zinc alloy and nickel plating. Benefit: Delivers superior corrosion resistance and mechanical durability, extending service life in washdown and outdoor environments. Application: Outdoor conveyors and harsh‑environment machinery where uptime matters. Feature: Square flange receptacle with 1/3 bayonet coupling. Benefit: Enables fast, secure mating even in dirty or wet conditions, reducing installation time and misalignment. Application: Control cabinets and panel mounting in rugged facilities. Feature: 10‑pos, 1×10 layout with crimp contacts. Benefit: Supports mixed signal and low‑power needs in a single connector, simplifying harnessing and inventory management. Application: Industrial automation panels and sensor networks. Feature: Wide operating temperature range (-40 °C to 105 °C) and shielding. Benefit: Maintains performance across thermal swings and provides EMI protection for sensitive control networks. Application: Robotics, mobile equipment, and high‑vibration environments. Feature: Robust compliance and sealing (IP68, 96 h salt spray, 500 mating cycles). Benefit: Reduces maintenance cycles and replacement costs while meeting regulatory requirements. Application: Food processing, automotive assembly lines, and outdoor machinery that demand long service life.
Get a Quick Quote for a Eaton UT0W01210SXH6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01210SXH6?
Enquire Now
FAQs
Begin by selecting a compatible panel cutout and securing the UT0W01210SXH6 with the provided mounting hardware. Align the connector using the X orientation, engage the 1/3 bayonet coupling, and ensure the IP68 seal is fully seated. Terminate the crimp contacts onto the mating harness and verify shielding continuity for optimal EMI performance.
The connector provides a 5 A current rating (6 A test current) with a maximum test voltage of 40 V IEC (250 V CSA/UL). It features 10 contact positions in a 1×10 layout, with crimp contact delivery and shielded construction, suitable for low‑power control and signaling within automation networks.
Yes. The receptacle is designed for harsh environments with IP68/69K sealing, 96‑hour salt spray resistance, and a rugged metal shell. It withstands shocks and vibrations, making it well-suited for outdoor conveyors, mobile machinery, and washdown‑intensive automation applications.
The connector complies with UL 1977, RoHS, REACH, and UL94 V0 flammability. These certifications ensure safe operation in industrial control panels, limit hazardous substances, address environmental impact, and confirm flame retardance, which is critical for safety and regulatory compliance in many automation environments.
The design delivers long service life with up to 500 mating cycles and robust EMI shielding, reducing downtime and maintenance costs. Its corrosion resistance and sealing minimize ingress-related failures, contributing to lower total cost of ownership in machinery uptime and easier field replacements for complex automation systems.
