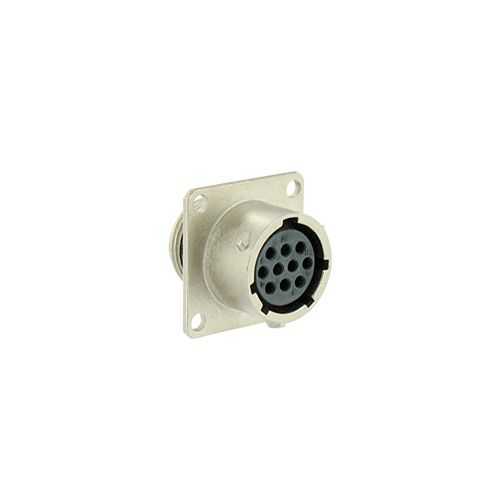

Eaton UT0W01210SYH Receptacle - IP68/69k Metal Connector
Part Number: UT0W01210SYH
Quick Summary
UT0W01210SYH is a rugged metal IP68/69k receptacle for demanding industrial connections in harsh environments. Operators face corrosion, salt spray, and frequent mating cycles that threaten uptime. It achieves IP67 sealing, 96 h salt spray resistance, and UL 1977 compliance, supporting safe interconnects in harsh settings. For automation engineers and procurement teams, this compact, shielded connector delivers reliable performance with a scalable footprint, reducing maintenance costs while enabling durable deployments in manufacturing, outdoor equipment, and rail applications.
Product Information
Extended Description
UT0W01210SYH Eaton: Female square flange receptacle IP67, 96 h salt spray, keying Y; UT0W01210SYH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01210SYH
Product Length/Depth
25.2 mm
Product Height
26.2 mm
Product Width
26.2 mm
Product Weight
21 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
6 A IEC 5 A UL
Fitted with:
Shielding
Environmental conditions
RoHS Fire & Smoke Flammability rating UL94 V0 REACH
Environmental resistance
Resistant against acid bath Resistant against gasoline Shock resistance 50g, 11ms per MIL-C-26482 I Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against oil Resistant against basic bath Resistant against mineral oil
Test current
4 A CSA 6 A IEC 5 A UL
Test voltage
250 V UL 250 V CSA 40 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
10
Plating
Nickel
Shell material
Zinc alloy
Shell size
12
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
96 hour
Feature: 1/3 Bayonet coupling combined with a square flange receptacle. Business Impact: Faster, tool-free mating and secure retention in vibration-prone environments. Application: Ideal for rugged automation panels where quick assembly and reliability are critical. The UT0W01210SYH supports 10 contacts in a compact 25.2 mm by 26.2 mm footprint, enabling dense interconnects without sacrificing integrity. Compatibility and installation advantages include straightforward panel mounting and shielded performance that minimizes EMI susceptibility in busy production floors. Feature: Shielding and nickel-plated zinc alloy shell. Business Impact: Enhanced EMI protection and long-term corrosion resistance, reducing field failures and maintenance. Application: Marine- and outdoor-rated machinery, conveyors, and outdoor sensors that demand durable interconnects. Feature: Current rating and electrical specs (6 A IEC / 5 A UL, 250 V). Business Impact: Meets common industrial control requirements while maintaining safe operating margins in mixed voltage systems. Application: Power and signal paths in automation cabinets, with verified 500 mating cycles ensuring lifecycle reliability. Feature: Insert material and contact type (Polyamide insert, Crimp contacts). Business Impact: Robust insulation with secure termination, minimizing contact resistance and ensuring consistent electrical performance. Application: High-reliability signal and power distribution in harsh environments. Feature: Environmental and regulatory coverage (RoHS, REACH, 96 h salt spray, UL 1977). Business Impact: Compliance-led design lowers risk, accelerates approvals, and streamlines sourcing. Application: Global deployments across automotive, industrial, and energy sectors where regulatory alignment matters. Feature: Operating range (-40 °C to 105 °C) and protection (IP67). Business Impact: All-weather operation and resilience against temperature swings, reducing unplanned downtime. Application: Outdoor machinery, refrigerated plants, and outdoor automation systems requiring rugged interconnects.
Get a Quick Quote for a Eaton UT0W01210SYH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01210SYH?
Enquire Now
FAQs
The UT0W01210SYH uses a square flange with a 10-contact insert and a 1/3 bayonet coupling. Mount the receptacle to a panel with four screws through the flange, ensuring a proper gasket seal to maintain IP67 protection. Use shielded, crimp contacts and follow the manufacturer’s crimping instructions. Refer to the C002-UT00-A drawings for exact panel cutouts and mounting details.
Key specs include a current rating of 6 A IEC and 5 A UL, test current of 4 A CSA, and test voltage of 250 V UL/CSA (40 V IEC). The connector carries 10 contacts in a 1/3 bayonet, with a crimp contact type and a shielded design. It supports a mating cycles rating of 500, making it suitable for demanding automation applications.
Yes. The part is IP67 rated and RoHS/REACH compliant with 96 h salt spray resistance, enabling operation in corrosive environments. It also meets UL 1977 requirements for interconnects, supporting safe use in industrial settings with diverse regulatory requirements. The operating temperature range from -40 °C to 105 °C adds resilience to temperature cycling.
Ideal for automation machinery, outdoor equipment, packaging lines, and rail systems needing compact, shielded interconnects. The UT0W01210SYH’s square flange receptacle, 10-contact layout, and 1/3 bayonet coupling provide reliable, vibration-resistant connections in harsh environments, while its corrosion resistance and regulatory compliance support long-term uptime and maintenance efficiency.
With a mating cycle rating of 500 and a robust nickel-plated zinc alloy shell, the connector is designed for long service life. Crimp contacts ensure durable terminations, while the 96 h salt spray resistance and RoHS/REACH compliance minimize corrosion risk. Plan for periodic inspection of mating interfaces, seals, and contact integrity to sustain optimal performance.
