Eaton UT0W01210SZH Receptacle - IP67 Sealed Connector
Part Number: UT0W01210SZH
Quick Summary

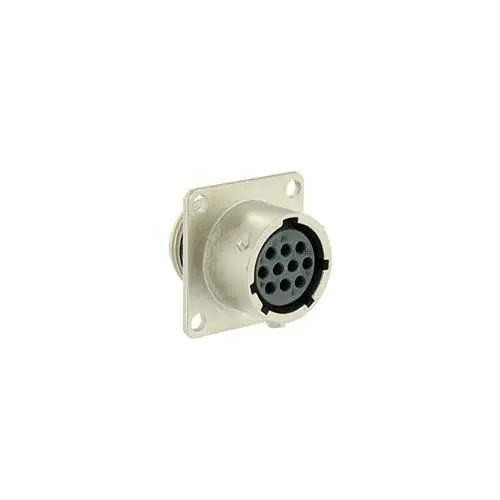

Eaton UT0W01210SZH Receptacle is a rugged metal IP67 sealed connector designed for intensive industrial use. In harsh environments, downtime from water ingress, corrosion, and seal failures drives maintenance costs and complicates field service. This unit mitigates those risks with a zinc alloy shell, nickel plating, and a polyamide insert that withstands -40 to 105 °C and 96-hour salt spray. It carries UL 1977 compatibility, RoHS and REACH compliance, plus MIL-C-26482-style resilience for vibrations and shocks. The Souriau UTO series design also supports straightforward installation with a square flange receptacle and a 1/3 bayonet coupling, while shielding and 10 crimp contacts enable reliable, long-life operation.
Product Information
Extended Description
UT0W01210SZH Eaton: Female square flange receptacle IP67, 96 h salt spray, keying Z; UT0W01210SZH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01210SZH
Product Length/Depth
25.2 mm
Product Height
26.2 mm
Product Width
26.2 mm
Product Weight
21 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
5 A UL 6 A IEC
Fitted with:
Shielding
Environmental conditions
Flammability rating UL94 V0 Fire & Smoke REACH RoHS
Environmental resistance
Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against gasoline Resistant against mineral oil Resistant against basic bath Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against acid bath Resistant against oil
Test current
6 A IEC 4 A CSA 5 A UL
Test voltage
250 V CSA 250 V UL 40 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Z
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
10
Plating
Nickel
Shell material
Zinc alloy
Shell size
12
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
96 hour
The UT0W01210SZH combines a durable zinc alloy shell with nickel plating to deliver superior mechanical strength and corrosion resistance in demanding applications, such as outdoor automation panels and heavy equipment enclosures. The metal shell contributes to EMI shielding, which reduces noise in control systems and improves signal integrity across long cable runs, translating to fewer field faults and less troubleshooting time. With 10 contacts and crimp contact delivery, the connector supports reliable power and signal transfer while maintaining compact size for panel layouts. The 1/3 bayonet coupling provides quick, secure mating and easy field maintenance, even in tight spaces. Operating temperature range from -40 °C to 105 °C and 96-hour salt spray resistance ensure reliable performance in automotive, rail, and industrial robotics environments. This receptacle is compatible with the Souriau UTO family, simplifying lifecycle management and spare parts planning.
Get a Quick Quote for a Eaton UT0W01210SZH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01210SZH?
Enquire Now
FAQs
The UT0W01210SZH is designed as a square flange receptacle, suitable for panel mounting. It uses a 1/3 bayonet coupling and shielded construction to simplify installation in compact control panels. When selecting a mating half, ensure compatibility with the Souriau UTO series and confirm the flange cutout matches the application to achieve proper sealing and alignment.
The connector provides a current rating of 5 A (UL) and 6 A (IEC), with a test current of 6 A (IEC) and test voltage of 250 V (CSA/UL). It comprises 10 crimp contacts in a single receptacle, offering reliable power and signal transfer suitable for automation and control circuits while maintaining compact dimensions.
Yes. It features IP67 sealing, withstands salt spray for 96 hours, and operates from -40 °C to 105 °C. The zinc alloy shell with nickel plating and polyamide insert provide chemical and mechanical resistance, making it appropriate for outdoor, oil/gas, and heavy-duty industrial applications where reliability is critical.
The UT0W01210SZH is specified for up to 500 mating cycles, reflecting robust durability suitable for equipment subjected to repeated connect/disconnect cycles. The design supports long-term reliability in automation and machinery where maintenance intervals depend on connector wear and environmental exposure.
Technical drawings are available via Eaton's resources, specifically the C002-UT00-A.pdf document linked in the product downloads. This drawing provides exact dimensions, mating interfaces, and installation notes to ensure proper integration into your enclosure or panel.
