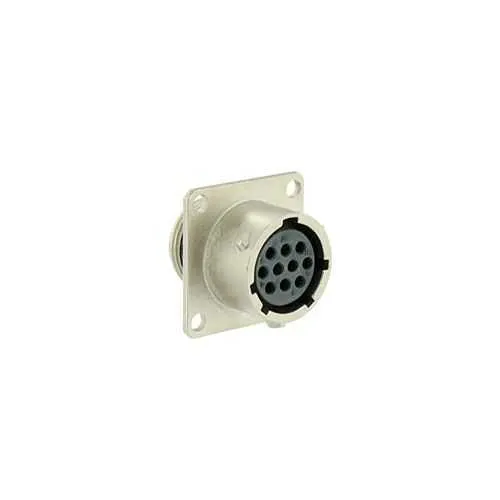

Eaton UT0W01210SZH6 IP68/69K Metal Connector - Receptacle
Part Number: UT0W01210SZH6
Quick Summary
UT0W01210SZH6 is a rugged metal IP68/69K receptacle designed for intensive use in harsh industrial environments. Engineers confront moisture, dust, and vibration that drive downtime; this connector addresses ingress, shock, and washdown challenges. It carries UL 1977 compliance, IP68 sealing, and 96-hour salt spray resistance while tolerating MIL-C-26482 level shock and vibration. With a square flange, 10 contacts, and a robust 1/3 bayonet coupling, it combines reliability with straightforward installation for automation panels and mobile equipment. Designed for value in automation projects, it supports 6 A IEC and 250 V, while offering -40 to 105 °C operation and long-term durability—making it a practical choice for industrial buyers.
Product Information
Extended Description
UT0W01210SZH6 Eaton: Female square flange receptacle IP68/69K, 96 h salt spray, keying Z; UT0W01210SZH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01210SZH6
Product Length/Depth
25.2 mm
Product Height
26.2 mm
Product Width
26.2 mm
Product Weight
21 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
6 A IEC 5 A UL
Fitted with:
Shielding
Environmental conditions
REACH Fire & Smoke RoHS Flammability rating UL94 V0
Environmental resistance
Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against acid bath Resistant against gasoline Resistant against basic bath Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against oil Resistant against mineral oil
Test current
4 A CSA 6 A IEC 5 A UL
Test voltage
40 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Z
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
10
Plating
Nickel
Shell material
Zinc alloy
Shell size
12
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
10
Number of cavity #20
10
Nut material
Aluminium
Salt spray
96 hour
Feature: Metal shell with IP68/69K sealing and 96-hour salt spray resistance. Business Impact: Delivers reliable operation in washdown environments, reducing field maintenance and downtime. Application: Outdoor automation, food processing, and mobile machinery. Feature: 10-position, square flange receptacle with 1/3 bayonet coupling. Business Impact: Quick, secure mating that lowers service time and ensures consistent performance in tight panel layouts. Application: Control cabinets and rugged automation hubs. Feature: Crimp contact, shielded assembly, nickel-plated zinc alloy shell. Business Impact: Enhanced corrosion resistance and EMI shielding for signal integrity in harsh settings. Application: Sensor networks, actuators, and process controls. Feature: Operating range -40 to 105 °C, mating cycles 500, and 6 A IEC / 5 A UL current rating. Business Impact: Wide temperature tolerance and dependable lifecycle for demanding industrial environments. Application: Industrial automation, rail, and construction sites. Feature: Materials and construction (shell: zinc alloy; insert: polyamide; nut: aluminum). Business Impact: Durable, lightweight, and resistant to chemical exposure; simplifies field servicing. Application: Harsh environment installations and equipment housing. Feature: Compliance and safety (UL 1977, IP68, RoHS/REACH). Business Impact: Streamlined regulatory alignment and safer product integration. Application: Global manufacturing and assembly lines.
Get a Quick Quote for a Eaton UT0W01210SZH6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01210SZH6?
Enquire Now
FAQs
The UT0W01210SZH6 specification notes 'Connector accessory option: Not delivered, to be ordered separately.' For a complete installation, order the appropriate accessory kit or mounting hardware compatible with a square flange receptacle and 1/3 bayonet coupling.
The connector is rated 6 A IEC and 5 A UL, with a test current of 4 A CSA and a test voltage of 40 V IEC (250 V CSA/UL). This supports safe operation for many sensors and actuators within industrial automation.
Yes. It features IP68 sealing, 96-hour salt spray resistance, a -40 to 105 °C operating range, and shielding, making it well-suited for washdown areas, exposure to dust, and vibration in outdoor and mobile equipment.
It complies with UL 1977, RoHS, and REACH, with UL 94 V0 flammability rating and IP68 sealing. Its construction also supports MIL-C-26482 I-style shock and vibration tolerance, aligning with stringent industrial environments.
With a rugged zinc alloy shell, nickel plating, and crimp contacts plus 500 mating cycles, the connector offers long service life, reduced seal failures, and faster field mating, which translates to lower maintenance costs and improved uptime for harsh-environment equipment.
