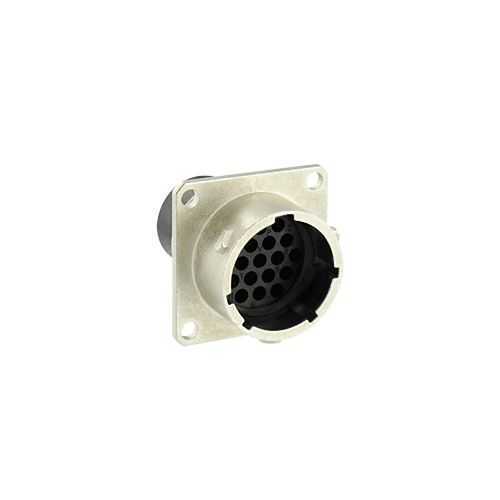

Eaton UT0W01419PH Connector - IP68/69k
Part Number: UT0W01419PH
Quick Summary
Eaton Souriau UTO series metal IP68/69k connector delivers rugged, high-reliability connections for harsh industrial environments. Engineers often contend with moisture ingress, vibration, and costly field maintenance when equipment seals fail during uptime-critical operations. This receptacle meets IP67 protection and UL 1977 compliance, with RoHS and REACH conformance, plus flammability ratings for safe, compliant installations. Coupled with a compact square‑flange design, 19 contacts, and a 1/3 bayonet coupling, it enables faster assembly and longer service life in automation harnesses. For system integrators, this translates into reduced downtime and predictable performance across mobile equipment and control panels.
Product Information
Extended Description
UT0W01419PH Eaton: Male square flange receptacle IP67, 96 h salt spray; UT0W01419PH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01419PH
Product Length/Depth
33.2 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
23.8 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
5 A UL 5 A IEC
Fitted with:
Shielding
Environmental conditions
RoHS Fire & Smoke REACH Flammability rating UL94 V0
Environmental resistance
Resistant against mineral oil Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against oil Resistant against gasoline Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against basic bath Resistant against acid bath
Test current
5 A IEC 4 A CSA 5 A UL
Test voltage
40 V IEC 250 V UL 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
19
Plating
Nickel
Shell material
Zinc alloy
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
19
Number of cavity #20
19
Nut material
Aluminium
Salt spray
96 hour
Feature: IP67 protection with salt spray resistance up to 96 hours and robust IP68/69k capability. Business Impact: Delivers superior ingress protection in washdown and harsh outdoor environments, reducing maintenance cycles and the risk of costly downtime. Application: Ideal for outdoor machinery, marine-adjacent installations, and automated lines in wet or dusty facilities. Feature: 19-contact, 5 A current-rated, crimp-contact design. Business Impact: Enables reliable power and signal paths for sensors, actuators, and control modules while supporting compact harnessing and lower wiring complexity. Application: Automation cabinets, robotics, and process equipment. Feature: 1/3 Bayonet coupling with square flange receptacle. Business Impact: Quick, secure mating with repeatable alignment reduces field service time and wear on mating interfaces. Application: Field upgrades, modular automation lines, and maintenance-friendly installations. Feature: Shielding and nickel-plated zinc alloy shell. Business Impact: EMI/RFI protection with durable construction that withstands vibration and impact, extending service life and ensuring signal integrity. Application: High-density control panels and heavily automated systems. Feature: Material and environmental specs (polyamide insert, RoHS/REACH, UL 1977 compliance, operating -40 to 105 C). Business Impact: Complements compliance programs, supports wide temperature operation, and simplifies supplier audits. Application: Industrial automation, packaging, and material handling in challenging climates.
