Eaton UT0W01419PH6 IP68/69K Metal Connector - 19 Contacts
Part Number: UT0W01419PH6
Quick Summary
Eaton Souriau UT0W01419PH6 IP68/69K metal connector provides rugged, reliable terminations for harsh industrial environments. Operators and engineers often struggle with moisture ingress, vibration, and frequent maintenance when traditional connectors are used in washdown or outdoor installations. This UTO series receptacle carries UL 1977 compliance for control systems, UL 94 V0 flammability, and IP68 sealing, with RoHS and REACH conformance to support modern regulatory needs. The 19‑position, shielded design minimizes space while simplifying wiring and reducing BOM complexity. Its robust materials and long service life translate to lower maintenance costs and higher uptime for automated systems and production lines.
Product Information
Extended Description

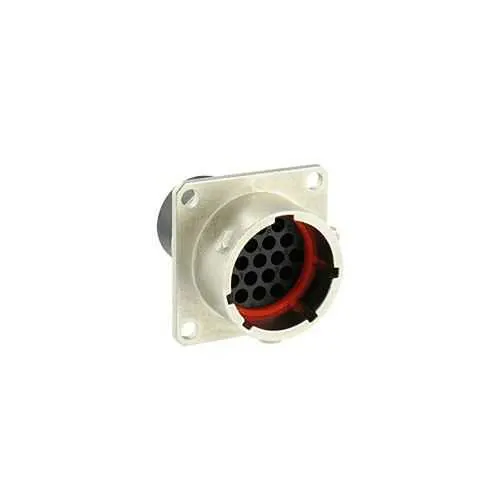

UT0W01419PH6 Eaton: Male square flange receptacle IP68/69K, 96 h salt spray; UT0W01419PH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01419PH6
Product Length/Depth
33.2 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
23.8 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
5 A IEC 5 A UL
Fitted with:
Shielding
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 REACH RoHS
Environmental resistance
Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against oil Resistant against gasoline Resistant against acid bath Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against mineral oil Resistant against basic bath
Test current
4 A CSA 5 A UL 5 A IEC
Test voltage
250 V CSA 40 V IEC 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
19
Plating
Nickel
Shell material
Zinc alloy
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
19
Number of cavity #20
19
Nut material
Aluminium
Salt spray
96 hour
IP68/69K sealing with 96 h salt spray resistance provides water, dust, and chemical ingress protection, delivering longer service life in washdown and outdoor environments. This translates to lower maintenance and longer mean time between failures for automation equipment. With 19 contacts and a 1/3 bayonet coupling in a square flange receptacle, mating is fast and secure, saving assembly time and reducing field error rates in robotics and control cabinets. Shielding is integrated thanks to a nickel‑plated zinc alloy shell and a polyamide insert, delivering robust EMI/RFI protection and corrosion resistance for sensitive signals in harsh factories. Operating from -40 °C to 105 °C and rated at 5 A, this connector supports extreme temperatures and steady performance across shifts, with up to 500 mating cycles for a prolonged lifecycle in automation lines. Regulatory compliance is built in: UL 1977, UL 94 V0, RoHS and REACH, along with IP68 protection and salt spray resistance, helping you meet stringent safety and environmental requirements while simplifying supplier audits. Installation and compatibility advantages include shielding benefits and compatibility with the UT0 family, enabling straightforward upgrades or replacements with minimal rework.
