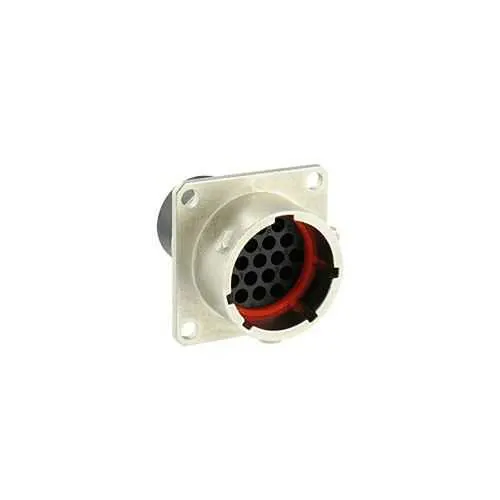

Eaton UT0W01419PWH6 UTO Receptacle - IP68/69K
Part Number: UT0W01419PWH6
Quick Summary
Eaton UT0W01419PWH6 is a rugged UTO Series metal IP68/69K receptacle designed for intensive use in demanding environments. Engineers often battle moisture, dust, and vibration that erode seals and repeatable mating, causing downtime and maintenance costs. This product complies with UL 1977, IP68, RoHS/REACH, and UL94 V0 fire ratings, delivering robust safety and regulatory confidence. Its square flange receptacle with 19 contacts, 5 A current rating, and 1/3 Bayonet coupling enables quick, secure panel connections for industrial automation and machinery. The design also supports long service life in harsh settings, helping OEMs and integrators reduce total cost of ownership while maintaining performance.
Product Information
Extended Description
UT0W01419PWH6 Eaton: Male square flange receptacle IP68/69K, 96 h salt spray, keying W; UT0W01419PWH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01419PWH6
Product Length/Depth
33.2 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
23.8 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
5 A UL 5 A IEC
Fitted with:
Shielding
Environmental conditions
RoHS Fire & Smoke Flammability rating UL94 V0 REACH
Environmental resistance
Resistant against mineral oil Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against acid bath Resistant against basic bath Resistant against gasoline Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against oil
Test current
4 A CSA 5 A UL 5 A IEC
Test voltage
40 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
19
Plating
Nickel
Shell material
Zinc alloy
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
19
Number of cavity #20
19
Nut material
Aluminium
Salt spray
96 hour
