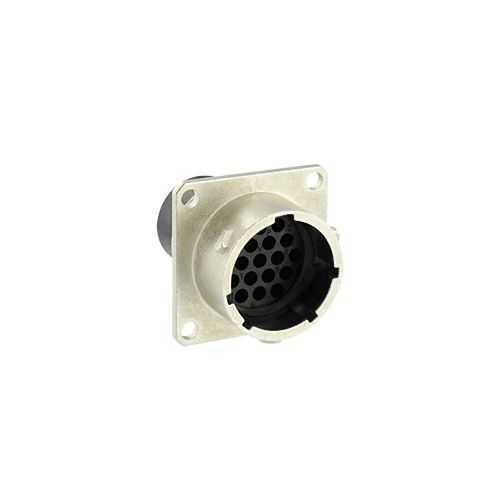

Eaton UT0W01419PXH Connector - IP68/69k, 5 A rating
Part Number: UT0W01419PXH
Quick Summary
Eaton UT0W01419PXH is a rugged metal IP68/69k connector designed for intensive use in harsh industrial environments. Many engineers struggle with sealing, vibration, and corrosion in demanding installations, leading to leaks, field failures, and costly downtime. Key certifications include UL 1977 compliance, RoHS and REACH, plus UL94 V0 flammability, with robust IP67 protection and the ability to support IP68/69k sealing in end‑use assemblies. Designed for reliability in automation and heavy equipment, it combines shielding with a robust housing to simplify installation, extend service life, and lower total cost of ownership in challenging facilities.
Product Information
Extended Description
UT0W01419PXH Eaton: Male square flange receptacle IP67, 96 h salt spray, keying X; UT0W01419PXH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01419PXH
Product Length/Depth
33.2 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
23.8 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
5 A UL 5 A IEC
Fitted with:
Shielding
Environmental conditions
RoHS Fire & Smoke REACH Flammability rating UL94 V0
Environmental resistance
Resistant against basic bath Resistant against mineral oil Resistant against gasoline Resistant against acid bath Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against oil Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I
Test current
4 A CSA 5 A IEC 5 A UL
Test voltage
250 V CSA 250 V UL 40 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
19
Plating
Nickel
Shell material
Zinc alloy
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
19
Number of cavity #20
19
Nut material
Aluminium
Salt spray
96 hour
Feature → 5 A current rating with shielded crimp contacts provides reliable power delivery and EMI suppression in compact panels. Business impact → Reduced heat, improved electrical integrity, and lower risk of EMI-related downtime in automation lines. Application → Control panels, sensors, and small motor drives in harsh industrial environments.Feature → 19-contact layout with nickel-plated pins and a zinc alloy shell delivers dense, durable connectivity. Business impact → Enables smaller harness routes, improved vibration resistance, and longer service life. Application → Robotic cells, CNC machines, and packaging lines requiring reliable multi-pin connections.Feature → 1/3 Bayonet coupling enables quick, repeatable mating with good vibration resistance. Business impact → Faster installation, less maintenance time, and improved field reliability. Application → Mobile equipment, transportable machinery, and field-service installations.Feature → IP67 protection with IP68/69k sealing potential and 96-hour salt spray resistance. Business impact → Superior ingress protection in wash-down and outdoor environments reduces corrosion risk and downtime. Application → Outdoor installations, offshore equipment, and wash-down manufacturing lines.Feature → Operating temp range -40 °C to 105 °C, 50 g shock and wide vibration tolerance (55-2000 Hz). Business impact → Operates reliably across extreme climates and harsh vibration without degradation. Application → Heavy machinery, mining equipment, and renewable energy installations.Feature → 500 mating cycles and polyamide insert with nickel plating. Business impact → Long service life, predictable performance, and lower replacement costs. Application → Industrial automation, energy equipment, and robotics needing repeatable connect/disconnect cycles.
