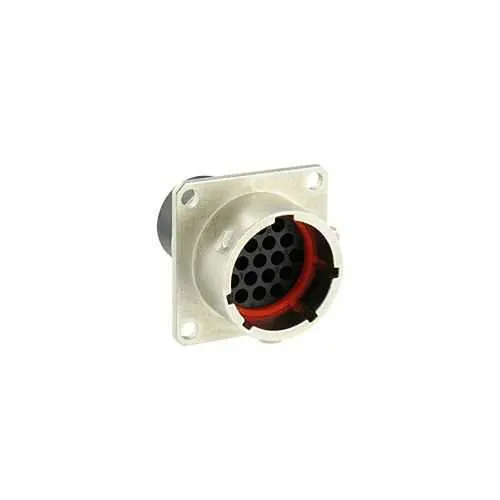

Eaton UT0W01419PXH6 Receptacle Connector - IP68/69K
Part Number: UT0W01419PXH6
Quick Summary
The Eaton UT0W01419PXH6 Receptacle Connector is a metal IP68/69K interface built for rugged, high-use industrial applications. In demanding installations, inadequate sealing and limited mating cycles can cause costly downtime and unreliable control networks. It carries UL 1977 recognition and IP68/IP69K protection, plus UL94 V0 flammability with RoHS and REACH compliance to support regulatory needs. Designed for automated lines, outdoor equipment, and harsh environments, it pairs with Souriau UTO series partners to deliver robust connectivity, long service life, and reduced total cost of ownership in automation and processing facilities.
Product Information
Extended Description
UT0W01419PXH6 Eaton: Male square flange receptacle IP68/69K, 96 h salt spray, keying X; UT0W01419PXH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01419PXH6
Product Length/Depth
33.2 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
23.8 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
5 A UL 5 A IEC
Fitted with:
Shielding
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 REACH RoHS
Environmental resistance
Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against oil Resistant against gasoline Resistant against basic bath Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against acid bath Resistant against mineral oil
Test current
5 A UL 4 A CSA 5 A IEC
Test voltage
40 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
19
Plating
Nickel
Shell material
Zinc alloy
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
19
Number of cavity #20
19
Nut material
Aluminium
Salt spray
96 hour
Feature: Rugged metal housing with zinc alloy shell and nickel plating provides enhanced corrosion resistance and durability. Benefit: Reduces maintenance frequency and extends life in washdowns and outdoor installs, improving uptime in water treatment, food processing, and outdoor machinery. Application: Install in harsh environments where exposure to moisture, oils, and chemicals is routine. Feature: 19-crimp contacts with a square flange receptacle and X-keying orientation ensures correct mating. Benefit: Speeds up field assembly and minimizes miscoupling in high-vibration applications, boosting installation efficiency on production lines. Application: Control panels, robotics, and heavy equipment that require fast, reliable connections. Feature: 1/3 Bayonet coupling offers quick mating and secure retention. Benefit: Cuts installation time and reduces torque-related wear, lowering labor costs and downtime. Application: Periodic maintenance and rapid field servicing. Feature: Operating temperature range from -40 °C to 105 °C and 96-hour salt spray resistance. Benefit: Maintains performance in extreme climates and washdown environments, safeguarding electronics and signal integrity. Application: Outdoor machines, marine-adjacent facilities, and chemical processing plants. Feature: 5 A current rating and 40 V–250 V test voltage with 19 contacts. Benefit: Supports typical control circuits with reliable voltage handling while ensuring safety margins. Application: Industrial automation controllers, sensors, and actuators in demanding settings. Feature: 500 mating cycles and shielded contacts. Benefit: Predictable lifecycle and EMI protection, reducing unintended failures and maintenance intervals. Application: High-use systems requiring durable, repeatable connections over time.
Get a Quick Quote for a Eaton UT0W01419PXH6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01419PXH6?
Enquire Now
FAQs
Mating accessories are not delivered and must be ordered separately. Use compatible Souriau UT accessories designed for the UTO series. Install the square flange receptacle using the X orientation with the 1/3 Bayonet coupling for secure, repeatable connections. Verify seals and shielding are properly engaged and follow standard crimp procedures for the 19 contacts to maintain IP68 protection during service.
The connector provides a 5 A current rating with 5 A test current and supports voltages up to 250 V (40 V IEC, 250 V CSA/UL). It uses crimp contact delivery and has 19 contacts in a square flange receptacle configuration. These specs support typical control circuitry in automation while maintaining safety margins and regulatory compliance.
Yes. It is rated IP68 with 96-hour salt spray resistance, engineered for washdowns, moisture, and exposure to harsh chemicals. The operating temperature range of -40 °C to 105 °C further ensures reliable performance in extreme outdoor and industrial settings, making it suitable for water treatment, outdoor equipment, and rugged manufacturing environments.
This connector complies with UL 1977, UL94 V0 flammability, and RoHS/REACH requirements, plus IP68/IP69K sealing. These certifications ensure safe electrical performance in harsh environments, reduce regulatory risk for OEMs, support lifecycle reliability, and facilitate use in regulated industries such as food, chemical processing, and outdoor machinery.
With a rated 500 mating cycles and shielding to reduce EMI, the UT0W01419PXH6 offers a predictable lifecycle for demanding automation tasks. For maintenance, inspect seals and shielding during routine servicing, replace accessories as needed (not delivered with the base unit), and confirm correct orientation and secure bayonet engagement to preserve IP68 protection and long-term reliability.
