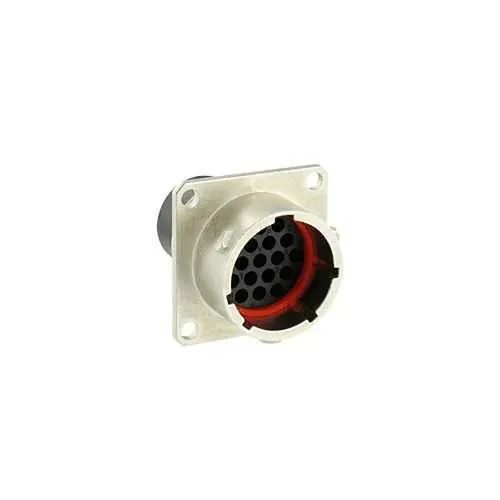

Eaton UT0W01419PYH6 UTO Metal Connector - IP68/69K
Part Number: UT0W01419PYH6
Quick Summary
Eaton Souriau UTO metal IP68/69K connector enables reliable mating for intensive use in harsh industrial environments. Engineers struggle with water ingress, vibration, and costly field failures in outdoor equipment and mobile machinery. Its IP68/69K seal, UL 1977 safety rating, UL94 V0 flammability, and RoHS/REACH compliance address regulatory and reliability needs. The design delivers a compact 19‑circuit receptacle with 1/3 bayonet coupling, enabling easier installation, reduced weight, and predictable maintenance. For design engineers and procurement teams, this translates to faster assembly, lower field repair costs, and longer service life in demanding environments. The connector’s resistance to salt spray, vibration, and broad operating temperatures supports uptime across marine, mining, and outdoor automation applications.
Product Information
Extended Description
UT0W01419PYH6 Eaton: Male square flange receptacle IP68/69K, 96 h salt spray, keying Y; UT0W01419PYH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01419PYH6
Product Length/Depth
33.2 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
23.8 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
5 A IEC 5 A UL
Fitted with:
Shielding
Environmental conditions
RoHS REACH Fire & Smoke Flammability rating UL94 V0
Environmental resistance
Resistant against acid bath Resistant against gasoline Resistant against oil Resistant against mineral oil Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against basic bath
Test current
4 A CSA 5 A IEC 5 A UL
Test voltage
250 V CSA 250 V UL 40 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
19
Plating
Nickel
Shell material
Zinc alloy
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
19
Number of cavity #20
19
Nut material
Aluminium
Salt spray
96 hour
