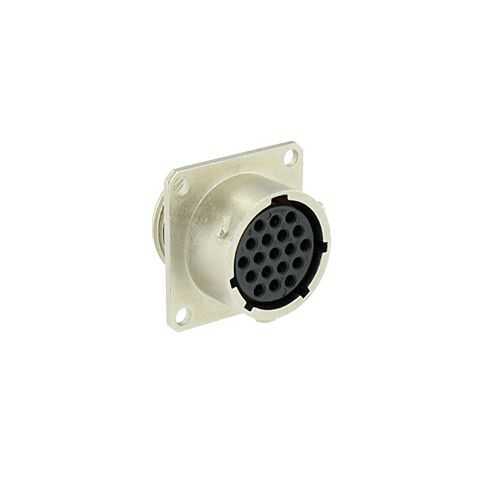

Eaton UT0W01419SH6 Square Flange Receptacle - IP68/69K
Part Number: UT0W01419SH6
Quick Summary
Eaton UT0W01419SH6 is a metal IP68/69K square flange receptacle designed for rugged, continuous-duty connectors in harsh industrial environments. Engineers often face sealing failures, vibration, and corrosion in wash-down zones and temperature swings, making reliable contacts essential. This receptacle delivers IP68 sealing (96 h salt spray), UL 1977 compliance for industrial use, and a wide operating range from -40 to 105 °C, paired with shielding and robust materials to extend service life. With a compact 19-pin layout and a 1/3 bayonet coupling, it supports secure connections in tight panel spaces while reducing maintenance time. These attributes translate to lower downtime and higher equipment uptime for OEMs and maintenance teams alike.
Product Information
Extended Description
UT0W01419SH6 Eaton: Female square flange receptacle IP68/69K, 96 h salt spray; UT0W01419SH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01419SH6
Product Length/Depth
25.2 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
23.9 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
5 A UL 5 A IEC
Fitted with:
Shielding
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 REACH RoHS
Environmental resistance
Resistant against oil Resistant against mineral oil Resistant against basic bath Resistant against acid bath Resistant against gasoline Shock resistance 50g, 11ms per MIL-C-26482 I Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I
Test current
5 A IEC 4 A CSA 5 A UL
Test voltage
250 V UL 40 V IEC 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
19
Plating
Nickel
Shell material
Zinc alloy
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
19
Number of cavity #20
19
Nut material
Aluminium
Salt spray
96 hour
IP68/69K sealing along with 96 h salt spray resistance ensures dependable performance in wash-down and harsh environments, reducing field failures and maintenance costs while enabling longer intervals between service. → Reliability and uptime → Ideal for rugged automation and outdoor equipment. The 19-contact, 5 A rated configuration supports multiple circuits in a single plug, simplifying harness design and reducing panel clutter. → System simplicity and cost reduction → Suitable for control panels and sensor networks with mixed power and data lines. The 1/3 Bayonet coupling provides quick mating and secure retention, speeding assembly and disassembly during maintenance. → Improved installation efficiency and fewer tool requirements → Great for equipment that requires rapid field servicing. The zinc alloy shell with nickel plating and aluminium nut offers corrosion resistance and mechanical robustness, even in vibration-heavy environments. Shielding further minimizes EMI, protecting sensitive electronics. → Longevity and EMI compliance → Critical in noisy industrial floors and robotics. The operating range from -40 °C to 105 °C, plus oil and chemical resistance in the insert, supports diverse industrial climates and applications. → Broader application scope and safer operation → Fits machinery exposed to extreme temperatures and lubricants. Industry-standard conformity includes UL 94 V0, RoHS, and REACH, ensuring safety and environmental compliance across procurement. → Regulatory alignment and risk mitigation → Boosts supplier qualification and audit readiness.
Get a Quick Quote for a Eaton UT0W01419SH6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01419SH6?
Enquire Now
FAQs
Install UT0W01419SH6 by aligning the 1/3 bayonet coupling with the mating plug, insert, and twist to lock. Secure the square flange with the aluminium nut into the panel, then crimp the contacts using approved tooling. Ensure correct orientation (N) and seat the shielding so the IP68 seal remains intact for wash-down environments.
This receptacle employs a zinc alloy shell with nickel plating for corrosion resistance, a polyamide insert, and IP68/69K sealing, plus 96 h salt spray resistance. It also withstands wide temperatures (-40 to 105 °C) and MIL-C-26482 vibration/shock profiles, making it reliable in demanding industrial settings and outdoor installations.
The connector provides a 5 A current rating with 19 contacts in a 1/3 Bayonet configuration. It supports 5 A IEC, 4 A CSA, and 5 A UL for test current, and up to 250 V (UL/CSA) or 40 V (IEC) as applicable. This makes it suitable for mixed power and signal applications within automated systems.
Yes. It features UL 1977 compatibility, UL 94 V0 flammability rating, RoHS and REACH compliance, and IP68 sealing. These certifications help meet regulatory requirements, simplify procurement approvals, and reduce risk in certified equipment and global deployments.
With 500 mating cycles and shielding for EMI, the connector offers durable performance that minimizes rework and part replacements. Its robust metal shell, corrosion resistance, and wide operating temperature range lower total cost of ownership in automation and equipment that endure frequent maintenance and environmental exposure.
