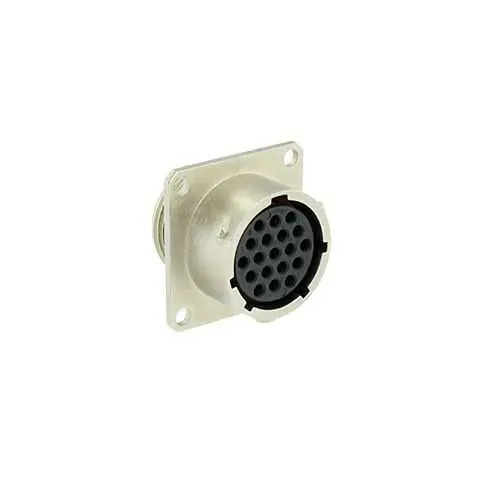

Eaton UT0W01419SWH Metal IP68/69k Connector - IP67 Receptacle
Part Number: UT0W01419SWH
Quick Summary
Eaton UT0W01419SWH is a metal IP68/69k connector designed for intensive use in harsh industrial environments. Engineers often face corrosion, moisture, and downtime when wiring outdoors or in rugged machinery. This receptacle carries UL 1977 compliance and RoHS/REACH, with IP67 sealing and 96-hour salt spray resistance for reliability. Shielding and a robust zinc alloy shell enable easy installation, long service life, and predictable performance in automation systems. For buyers, this means lower maintenance costs, fewer field failures, and compliant connectivity across demanding applications. Its mating cycles reach 500, and the 1/3 bayonet coupling ensures quick, secure connections even in confined spaces. Designed for high-vibration environments, the square flange receptacle supports reliable panel mounting with shielded contacts.
Product Information
Extended Description
UT0W01419SWH Eaton: Female square flange receptacle IP67, 96 h salt spray, keying W; UT0W01419SWH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01419SWH
Product Length/Depth
25.2 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
23.9 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
5 A IEC 5 A UL
Fitted with:
Shielding
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 REACH RoHS
Environmental resistance
Resistant against oil Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against gasoline Resistant against mineral oil Resistant against acid bath Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against basic bath
Test current
5 A IEC 5 A UL 4 A CSA
Test voltage
250 V UL 250 V CSA 40 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
19
Plating
Nickel
Shell material
Zinc alloy
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
19
Number of cavity #20
19
Nut material
Aluminium
Salt spray
96 hour
IP68/69k metal housing delivers sealed, rugged performance for continuous operation in harsh environments. Business impact includes reduced ingress risk, longer service life, and lower maintenance costs, especially in outdoor equipment, heavy machinery, and wash-down areas. Application: automotive, mining, food processing, and industrial automation where reliability matters. Feature 19-crimp contacts with nickel plating provide consistent low resistance and corrosion resistance. Business impact: stable signal and power delivery over the life of the equipment, minimizing downtime and rework. Application: control panels, sensor networks, and field-installable harnesses within manufacturing cells. Feature 1/3 bayonet coupling plus a square flange receptacle delivers quick, secure mating and robust panel mounting. Business impact: faster assembly, easier field maintenance, and improved vibration resistance in conveyors, robotics, and packaging lines. Feature 5 A current rating and 250 V test voltage meet typical control-system needs without oversizing. Business impact: cost-efficient power routing and safe operation. Application: low-power drives, sensors, actuators and automation cabinets. Feature Mating cycles of 500, operating temperature range -40 to 105 °C, salt spray resistance, and RoHS/REACH/UL 1977 compliance. Business impact: durable performance across fluctuating climates reduces replacement costs and downtime. Feature Materials and protection: zinc alloy shell, polyamide insert, aluminium nut, nickel plating with shielding deliver EMI protection, durability, and long-term reliability. Application: shielded, high-vibration installations requiring robust electrical performance.
Get a Quick Quote for a Eaton UT0W01419SWH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01419SWH?
Enquire Now
FAQs
Yes. UT0W01419SWH is a square flange receptacle from the Souriau UTO series, designed for panel mounting with a square flange. It employs a 1/3 bayonet coupling for quick, secure mating and strong vibration resistance. The orientation is W, and the 19-contact layout aligns with common harness configurations used in automation cabinets.
The connector provides a 5 A current rating and is tested at 250 V, with 19 contact positions and a crimp contact layout. It supports 500 mating cycles and operates from -40 to 105 °C. This makes it suitable for many automation sensors, actuators, and control panels in demanding environments.
Yes. The metal housing and IP67 sealing, along with 96-hour salt spray resistance and shielding, make it well suited for outdoor installations and wash-down regimes. EMI shielding helps reduce noise on busy factory floors, supporting reliable operation in mining, steel, and processing facilities.
The UT0W01419SWH carries UL 1977 compliance and RoHS/REACH declarations, with UL 94 V0 flammability rating. The product’s IP67 protection and robust vibration tolerance align with typical industrial safety and environmental standards across manufacturing and automation projects.
By reducing maintenance and field failures through sealed corrosion resistance, long mating cycles, and quick field assembly, this connector lowers downtime, service costs, and spare-parts inventory. The durable build also minimizes replacement cycles in harsh environments, delivering a favorable total cost of ownership over the equipment lifetime.
