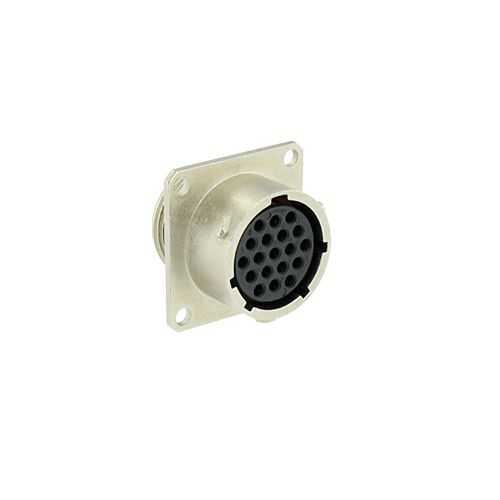

Eaton UT0W01419SXH6 Receptacle - IP68/69K
Part Number: UT0W01419SXH6
Quick Summary
Eaton UT0W01419SXH6 connector delivers rugged IP68/69K performance for intensive industrial use. Operators struggle with corrosion, downtime, and unreliable connections in harsh environments. This design meets IP68/69K protection, UL1977 compliance, and RoHS/REACH environmental standards, delivering robust sealing and regulatory assurance. Designed for 19 contacts in a compact 25.2 mm length, it supports efficient panel connections with a nickel-plated shell and square flange receptacle, enabling reliable automation wiring and faster maintenance in demanding facilities.
Product Information
Extended Description
UT0W01419SXH6 Eaton: Female square flange receptacle IP68/69K, 96 h salt spray, keying X; UT0W01419SXH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01419SXH6
Product Length/Depth
25.2 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
23.9 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
5 A IEC 5 A UL
Fitted with:
Shielding
Environmental conditions
Flammability rating UL94 V0 RoHS Fire & Smoke REACH
Environmental resistance
Resistant against acid bath Resistant against mineral oil Resistant against oil Resistant against gasoline Resistant against basic bath Shock resistance 50g, 11ms per MIL-C-26482 I Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I
Test current
5 A UL 5 A IEC 4 A CSA
Test voltage
250 V CSA 40 V IEC 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
19
Plating
Nickel
Shell material
Zinc alloy
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
19
Number of cavity #20
19
Nut material
Aluminium
Salt spray
96 hour
IP68/69K sealing and salt spray resistance deliver long-term durability in washdown environments, reducing maintenance cycles and downtime for automated lines and outdoor machinery. The 19-contact configuration with a 5 A rating enables multi-loop control and signal distribution in tight panel spaces, cutting wiring complexity and panel footprint. The 1/3 bayonet coupling and square flange receptacle simplify field mating and secure panel mounting, improving installation speed and reducing misalignment risk. Nickel-plated zinc alloy shell and polyamide insert provide EMI shielding and chemical resistance, extending service life in noisy, rugged environments while maintaining signal integrity. Compliance with UL94 V0, RoHS, and REACH supports safe, regulated operations and supply-chain traceability. With 500 mating cycles and operating from -40 °C to 105 °C, the connector supports high-cycle automation applications and temperature swings common in manufacturing plants.
