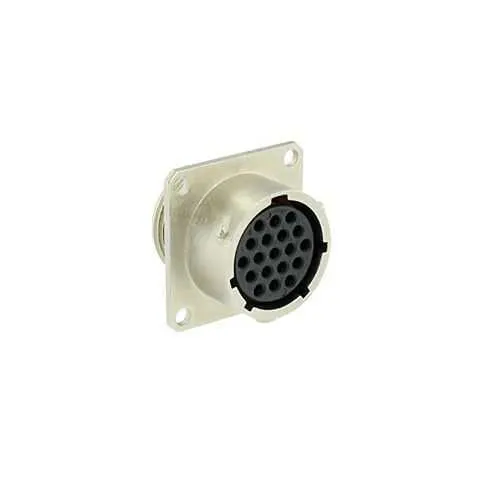

Eaton UT0W01419SYH UTO Series Connector - IP68/69K
Part Number: UT0W01419SYH
Quick Summary
Eaton UT0W01419SYH is a rugged metal IP68/69K connector for heavy-duty machinery and outdoor equipment. Engineers struggle with moisture ingress, corrosion, and vibration that can degrade performance and increase downtime. It complies with IP67/IP68 style protection, UL 1977 guidance, RoHS and REACH, and UL94 V0 fire-safety ratings, supporting reliable operation in harsh environments. Designed for fast field installation and long-term reliability, it offers robust shielding, a 5 A rating, and 19 contacts in a compact square-flange form, delivering value across industrial automation, mobile equipment, and outdoor installations.
Product Information
Extended Description
UT0W01419SYH Eaton: Female square flange receptacle IP67, 96 h salt spray, keying Y; UT0W01419SYH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01419SYH
Product Length/Depth
25.2 mm
Product Height
28.6 mm
Product Width
28.6 mm
Product Weight
23.9 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
5 A IEC 5 A UL
Fitted with:
Shielding
Environmental conditions
RoHS Fire & Smoke Flammability rating UL94 V0 REACH
Environmental resistance
Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against mineral oil Resistant against oil Resistant against basic bath Resistant against acid bath Resistant against gasoline Shock resistance 50g, 11ms per MIL-C-26482 I
Test current
5 A IEC 5 A UL 4 A CSA
Test voltage
40 V IEC 250 V CSA 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
19
Plating
Nickel
Shell material
Zinc alloy
Shell size
14
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
19
Number of cavity #20
19
Nut material
Aluminium
Salt spray
96 hour
Feature → Business Impact → Application: The UT0W01419SYH uses a zinc alloy shell with nickel plating and a metal IP67/IP68/69K design, delivering superior corrosion resistance and durability in washdown environments. This reduces maintenance intervals and replacement costs for outdoor automation and marine-grade equipment. Application: outdoor control panels, mining machinery, and mobile automation harnesses benefit from extended service life and lower total cost of ownership. Feature → Business Impact → Application: 19-crimp contacts and a 1/3 bayonet coupling provide secure, rápido mating with a compact footprint. Impact: faster assembly, easier field servicing, and minimized downtime during routine maintenance. Application: sensor networks and wiring looms in production lines where quick connector changes matter. Feature → Business Impact → Application: Square flange receptacle with a 14-shell size and 500 mating cycles ensures reliable connections under repeated use. Impact: predictable lifecycle performance and reduced replacement needs. Application: robotic arms, conveyors, and programmable logic controller (PLC) panels. Feature → Business Impact → Application: Shielding with aluminum-nut closure and 5 A / 40 V ratings supports low-voltage control circuits with EMI protection. Impact: improved signal integrity and safety in automation cabinets. Application: factory automation and motion control systems. Feature → Business Impact → Application: RoHS, REACH, and UL94 V0 compliance plus vibration/shock resistance (55–2000 Hz, 15 g; 50 g shock) guarantee performance in extreme conditions. Impact: regulatory peace of mind and stability in challenging environments. Application: offshore, mining, and aerospace-related machinery where compliance and ruggedness are mandatory. Feature → Business Impact → Application: 96 h salt spray endurance and -40 to 105 °C operating range deliver resilience against harsh climates. Impact: extended outdoor service life, reduced failure rates, and dependable operation in temperature extremes. Application: outdoor machinery, construction equipment, and agricultural automation that require robust environmental endurance.
