Eaton UT0W01832PH UTO Series Metal Connector - IP68/69k
Part Number: UT0W01832PH
Quick Summary
Eaton UT0W01832PH UTO Series metal IP68/69k connector provides rugged, high-integrity connections for demanding industrial automation applications. In harsh facilities, moisture, dust and vibration can degrade connectors and drive maintenance costs; this model mitigates that risk with a robust seal, corrosion-resistant materials and a reliable crimp contact system. It carries UL 1977 compliance, RoHS and REACH protections, UL94 V0 flame rating, and IP68/69k protection with salt spray resistance, supporting long service life in critical environments. For buyers, this means fewer field failures and lower downtime, while remaining compatible with Souriau UTO ecosystems and delivering consistent electrical and mechanical performance in a compact form.
Product Information
Extended Description

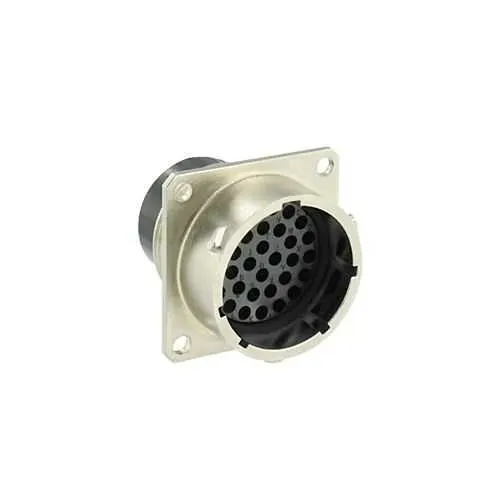

UT0W01832PH Eaton: Male square flange receptacle IP67, 96 h salt spray; UT0W01832PH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01832PH
Product Length/Depth
33.2 mm
Product Height
33.3 mm
Product Width
33.3 mm
Product Weight
36 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
4 A UL 4 A IEC
Fitted with:
Shielding
Environmental conditions
RoHS REACH Flammability rating UL94 V0 Fire & Smoke
Environmental resistance
Resistant against basic bath Resistant against oil Resistant against acid bath Shock resistance 50g, 11ms per MIL-C-26482 I Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against gasoline Resistant against mineral oil
Test current
3 A CSA 4 A UL 4 A IEC
Test voltage
250 V CSA 50 V IEC 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
32
Plating
Nickel
Shell material
Zinc alloy
Shell size
18
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
96 hour
IP68/69k protection and 96-hour salt spray resistance deliver proven moisture and corrosion resistance, reducing field failures and downtime in outdoor and washdown environments. This translates to lower maintenance costs and higher equipment availability in packaging, material handling, and outdoor machinery environments. The 32-position, 4 A current-rated receptacle with shielding improves EMI performance and power integrity, while the 1/3 bayonet coupling enables quick, tool-free mating and unmating in tight installations. With 500 mating cycles, the nickel-plated zinc alloy shell and polyamide insert offer durability and dimensional stability across -40 °C to 105 °C, ensuring reliable performance in extreme temperatures. The square flange receptacle footprint supports straightforward mounting and compatibility within Souriau UTO series ecosystems, reducing design risk and inventory variety. This connector is ideal for robotics, automation panels, and rugged machinery where reliability and service life matter most.
Get a Quick Quote for a Eaton UT0W01832PH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01832PH?
Enquire Now
FAQs
Yes, UT0W01832PH is a square flange receptacle within the Souriau UTO series. Mounting typically uses the 33.2 mm depth, 33.3 mm width and height footprint, with an aluminium nut. It supports 32 contact positions, 1/3 bayonet coupling, and shielding for EMI protection. Ensure proper panel cutout, tightening torque for the nut, and alignment of mating parts to achieve IP67/IP68/69k integrity.
The connector provides a 4 A current rating (UL and IEC standards) with a test current of 3 A CSA. It supports voltages up to 250 V (CSA/UL) and 50 V (IEC) per standard tests. It offers 32 contact positions, crimp contact type, and shielded conductors to maintain signal integrity in demanding automation environments.
This connector is well-suited for harsh industrial automation, outdoor machinery, robotics, and material-handling equipment. Its IP68/69k protection, 96-hour salt spray resistance, and wide operating temperature range (-40 °C to 105 °C) enable dependable performance in dusty, wet, and vibration-prone settings, reducing maintenance and downtime in mission-critical applications.
UT0W01832PH meets UL 1977 with overvoltage category III and pollution degree III, RoHS and REACH compliance, and UL94 V0 flammability rating. It also provides robust environmental and mechanical specs including IP67 protection and 500 mating cycles, supporting regulatory and safety requirements across multiple regions.
The 500 mating cycles, shielding, and durable materials deliver long-term reliability, reducing maintenance intervals and spare part costs. Its compatibility with the UTO ecosystem simplifies inventory and replacement, while EMI shielding and robust sealing minimize downtime and improve system uptime, leading to a lower total cost of ownership in automated systems.
