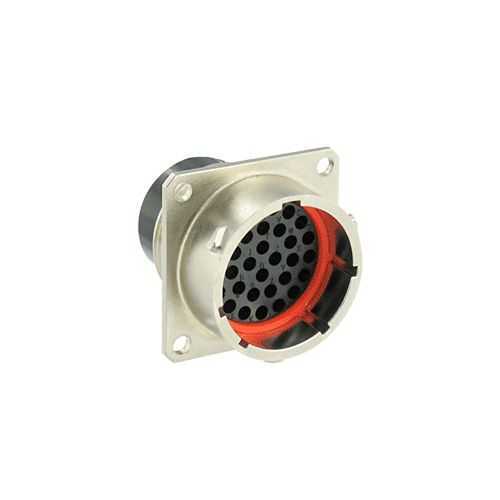

Eaton UT0W01832PH6 Receptacle - IP68/69K Metal Connector
Part Number: UT0W01832PH6
Quick Summary
Eaton UT0W01832PH6 is a metal IP68/69K receptacle connector designed for intensive use in harsh industrial environments. You need a rugged, watertight connection that survives salt spray, vibrations, and frequent mating cycles without downtime. It carries IP68/69K sealing with robust metal construction, UL 1977 compliance, and RoHS REACH environmental protections for reliable field service. As part of the UTO series, it supports 32 positions in a square flange receptacle and offers easy field installation alongside long-life mating, delivering consistent performance in demanding applications and reducing maintenance costs over the equipment life.
Product Information
Extended Description
UT0W01832PH6 Eaton: Male square flange receptacle IP68/69K, 96 h salt spray; UT0W01832PH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01832PH6
Product Length/Depth
33.2 mm
Product Height
33.3 mm
Product Width
33.3 mm
Product Weight
36 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
4 A UL 4 A IEC
Fitted with:
Shielding
Environmental conditions
Fire & Smoke REACH RoHS Flammability rating UL94 V0
Environmental resistance
Resistant against basic bath Resistant against acid bath Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against mineral oil Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against oil Resistant against gasoline
Test current
4 A IEC 3 A CSA 4 A UL
Test voltage
250 V CSA 250 V UL 50 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plating
Nickel
Shell material
Zinc alloy
Shell size
18
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
96 hour
UT0W01832PH6 delivers measurable business value through a clear feature-to-benefit path. Feature: metal IP68/69K sealing with a square flange receptacle; Benefit: superior dust and water ingress protection in harsh environments, enabling uptime in outdoor or submerged use. Application: industrial automation, outdoor machinery, conveyor systems. Feature: 32-position insert with 1/3 bayonet coupling; Benefit: compact yet scalable channel density, speeding panel integration and reducing cabinet footprint. Application: factory automation and equipment retrofits. Feature: shielded, nickel-plated zinc alloy shell and polyamide insert; Benefit: enhanced EMI shielding and long-term corrosion resistance for outdoor deployments. Application: control panels and motors. Feature: 4 A current rating and 500 mating cycles; Benefit: reliable electrical performance with low maintenance interruptions. Application: high-demand machinery. Feature: RoHS, REACH, and UL 1977 compliance; Benefit: regulatory peace of mind and easier supplier audits. Application: regulated industries and global deployments. Feature: 33.2 mm depth, 33.3 mm height/width, 36 g weight; Benefit: compact form with lightweight handling for rapid installation and service.
Get a Quick Quote for a Eaton UT0W01832PH6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01832PH6?
Enquire Now
FAQs
UT0W01832PH6 uses a square flange receptacle with a zinc-alloy shell (shell size 18) and aluminium nuts for secure panel mounting. It is compatible with the Souriau UTO series shielding and features 1/3 bayonet coupling for quick, reliable mating. The insert supports 32 positions, making it a flexible choice for dense I/O layouts and straightforward field servicing.
Yes. The connector is rated IP68/69K, providing excellent ingress protection for dust and water, including 96-hour salt spray resistance. It withstands rugged vibration and shock specs (MIL-C-26482 I) and is designed for long-life field use in harsh outdoor or industrial environments without compromising electrical integrity.
The UT0W01832PH6 delivers a 4 A current rating (UL/IEC) with a test current of 4 A IEC and 4 A UL, and a test voltage up to 250 V for several standards. It supports up to 500 mating cycles and operates from -40 to 105 °C, ensuring durable performance in demanding equipment and support for lifecycle ROI.
Key certifications include UL 1977 for connectors used in control systems, RoHS and REACH environmental compliance, and IP68 sealing with 69K submersion capability. The enclosure also carries a UL 94 V0 flame rating, reinforcing safety and reliability in regulated industries.
Use shielding to preserve EMI performance and select appropriate crimp contacts compatible with the 32-position insert. Follow correct panel mounting using the square flange receptacle (shell size 18) and ensure mating cycles are respected. Plan for long service life by leveraging the connector’s corrosion resistance and 4 A current rating to minimize downtime and replacement costs.
