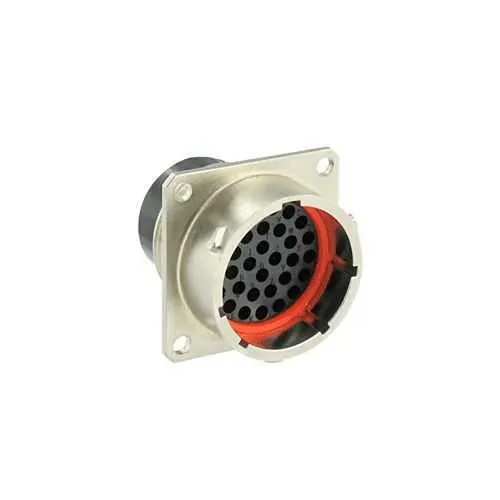

Eaton UT0W01832PWH6 UTO Series Metal IP68/69K Connector - 32‑Cavity Receptacle
Part Number: UT0W01832PWH6
Quick Summary
Eaton UT0W01832PWH6 is a rugged metal IP68/69K connector designed for intensive use in harsh industrial environments. When field equipment faces moisture, dust, and vibration, downtime and maintenance costs rise quickly; this connector helps reduce those risks with robust sealing and durable materials. It meets UL 1977, RoHS and REACH requirements while delivering IP68 sealing and 96-hour salt spray resistance for long-term reliability. The compact square flange design, combined with a 1/3 bayonet coupling, enables fast, secure mating and clean installation in control panels, delivering tangible reductions in installation time and total cost of ownership for demanding automation projects.
Product Information
Extended Description
UT0W01832PWH6 Eaton: Male square flange receptacle IP68/69K, 96 h salt spray, keying W; UT0W01832PWH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01832PWH6
Product Length/Depth
33.2 mm
Product Height
33.3 mm
Product Width
33.3 mm
Product Weight
36 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
4 A UL 4 A IEC
Fitted with:
Shielding
Environmental conditions
REACH Flammability rating UL94 V0 Fire & Smoke RoHS
Environmental resistance
Resistant against gasoline Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against acid bath Resistant against oil Resistant against basic bath Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against mineral oil
Test current
4 A IEC 3 A CSA 4 A UL
Test voltage
250 V UL 50 V IEC 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plating
Nickel
Shell material
Zinc alloy
Shell size
18
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
96 hour
Feature: Metal shell made from zinc alloy with nickel plating provides rugged protection against environmental ingress. Business Impact: Enhances durability in outdoor and harsh industrial settings, reducing field failures and maintenance costs. Application: Outdoor machinery, mining equipment, and outdoor automation panels benefit from improved ingress protection and long-term reliability. Feature: IP68/69K rating with 96-hour salt spray resistance plus shielding ensures reliable performance in wet, dusty, and vibration-prone environments. Business Impact: Significantly lowers the risk of water and dust ingress, supporting continuous operation and uptime. Application: Heavy-duty conveyors, outdoor robotic systems, and mobile equipment installations require dependable sealing. Feature: 32 contacts with a 4 A current rating and 250 V test voltage in a 32‑cavity layout using crimp contact delivery. Business Impact: Enables compact multi‑signal harnessing with compliant electrical performance, reducing wiring complexity and panel space. Application: Control cabinets and power/signal harness assemblies for industrial automation. Feature: 1/3 Bayonet coupling and square flange receptacle with W orientation simplify mating and panel mounting. Business Impact: Speeds up installation and maintenance cycles, minimizes risk of misalignment, and ensures repeatable connections. Application: Panel‑mounted interfaces in robotic cells and packaging lines. Feature: Insert material polyamide, shell size 18, operating temperature from -40 °C to 105 °C, and 500 mating cycles. Business Impact: Delivers broad environmental tolerance and lifecycle predictability, reducing replacement frequency and maintenance surprises. Application: Temperature‑varying environments like machine rooms and outdoor enclosures. Feature: Compliance suite including UL 1977, RoHS, REACH, and UL94 V0 flammability, with 96 h salt spray tests. Business Impact: Simplifies regulatory approvals and supports sustained safety and sustainability credentials. Application: Safety-critical industrial controls and equipment assemblies requiring durable, compliant connectors.
Get a Quick Quote for a Eaton UT0W01832PWH6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01832PWH6?
Enquire Now
FAQs
UT0W01832PWH6 uses a square flange receptacle with a 33.3 mm footprint and a W orientation. Plan for a mounting aperture that aligns with the 33.3 mm dimensions and use the aluminum nut supplied for secure panel attachment. The 1/3 bayonet coupling enables quick, repeatable mating, while connector accessories are not delivered and must be ordered separately to fit your panel design.
This 32‑cavity receptacle delivers a 4 A current rating with a 250 V test voltage (UL, CSA, and IEC referenced). It uses crimp contacts and provides shielded connections. The layout is 32, and mating cycles are rated at 500, supporting reliable daily use in demanding automation environments.
Yes. The connector features IP68 sealing with 96‑hour salt spray resistance and a rugged zinc alloy shell with nickel plating. Combined with a polyamide insert and a -40 °C to 105 °C operating range, it is well-suited for outdoor machinery, mining equipment, and tough factory floors where moisture and vibration are concerns.
The UT0W01832PWH6 meets UL 1977 standards and complies with RoHS and REACH, plus UL94 V0 fire resistance. These certifications help streamline regulatory approvals for automation cabinets and sensor assemblies used in industrial environments.
With 500 mating cycles, robust IP68/69K sealing, and durable shell materials, this connector reduces field faults and maintenance downtime. The compact 33.2–33.3 mm footprint simplifies panel design, enabling faster deployments and lower lifecycle costs in high‑demand automation applications.
