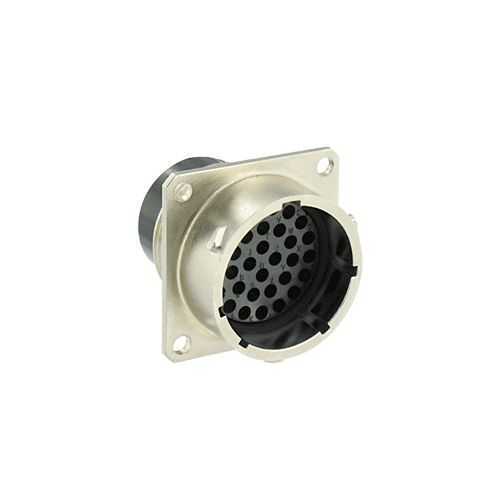

Eaton UT0W01832PXH Receptacle - IP68/69k Bayonet
Part Number: UT0W01832PXH
Quick Summary
Eaton UT0W01832PXH Receptacle provides rugged metal IP68/69k connectivity for harsh industrial environments. In automation and material handling, maintenance downtime and seal integrity are persistent pain points that disrupt production and raise costs. This solution delivers UL 1977 compliance, IP67 protection, and RoHS/REACH conformity to meet safety and environmental standards while performing in extreme conditions. As part of the Souriau UTO series, it combines a 1/3 bayonet coupling with shielding in a compact 32-position package, offering reliable, long-life performance for OEMs and integrators. Reduced field maintenance, faster assembly, and predictable uptime translate into lower total cost of ownership and improved line productivity.
Product Information
Extended Description
UT0W01832PXH Eaton: Male square flange receptacle IP67, 96 h salt spray, keying X; UT0W01832PXH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01832PXH
Product Length/Depth
33.2 mm
Product Height
33.3 mm
Product Width
33.3 mm
Product Weight
36 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
4 A IEC 4 A UL
Fitted with:
Shielding
Environmental conditions
REACH RoHS Fire & Smoke Flammability rating UL94 V0
Environmental resistance
Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against gasoline Resistant against basic bath Resistant against oil Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against acid bath Resistant against mineral oil
Test current
4 A IEC 3 A CSA 4 A UL
Test voltage
250 V CSA 250 V UL 50 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
32
Plating
Nickel
Shell material
Zinc alloy
Shell size
18
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
96 hour
Feature: Metal shell with shielding and IP67 protection provides robust ingress resistance, boosting equipment reliability in dusty, damp, and vibration-prone environments. Business impact: Longer service intervals and lower maintenance costs for conveyors, robotics cells, and outdoor installations. Application: Used on heavy automation lines and outdoor machinery where reliability is critical. Feature: 1/3 bayonet coupling enables quick mate/demate cycles. Business impact: Faster field assembly and reduced downtime during maintenance or configuration changes. Application: On production line fixtures and mobile equipment that require rapid servicing. Feature: 32-position square flange receptacle with Crimp contacts and nickel plating. Business impact: High-density, dependable signal and power paths with corrosion resistance, improving EMI handling and longevity. Application: Control panels and secondary power/data bundles in harsh environments. Feature: Zinc alloy shell and polyamide insert offer rigid mechanical strength and dielectric performance. Business impact: Improved vibration tolerance and thermal stability, lowering failure rates. Application: Aerospace-adjacent industrial equipment and rugged machinery. Feature: Mating cycles up to 500 and operating temp range -40 °C to 105 °C. Business impact: Predictable lifecycle and performance in extreme temperatures, reducing unexpected failures. Application: Engineering projects with wide temperature swings. Feature: UL 1977 compliance, RoHS/REACH, salt spray 96 h, and fire & smoke UL94 V0. Business impact: Regulatory peace of mind and safer material composition, simplifying compliance. Application: Environments with strict safety and environmental requirements. Insight: Designed to fulfill common industry objections about durability and upkeep, helping manufacturers meet stringent standards while keeping installation straightforward and cost-effective.
Get a Quick Quote for a Eaton UT0W01832PXH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01832PXH?
Enquire Now
FAQs
The UT0W01832PXH is a square flange receptacle featuring a 1/3 bayonet coupling and shielding. For installation, ensure mating with the compatible Souriau UTO plug, verify correct orientation (X), and secure the flange with appropriate hardware. The robust zinc alloy shell and nickel plating provide mechanical strength and EMI protection, while the crimp contacts support reliable electrical connections. Use approved crimp tools and follow standard torque guidelines to maintain IP67 sealing integrity in dusty or wet environments.
Key electrical specs include a current rating of 4 A (IEC and UL), test current of 4 A (IEC), and test voltage up to 250 V (CSA/UL). It supports a 32‑position contact layout with crimp contact type and a single 1/3 bayonet coupling. Receptacle operation spans -40 °C to 105 °C, with shielding for EMI. These parameters enable reliable control and signaling in compact assemblies while meeting industrial safety standards.
Yes. The connector is designed for intensive use in challenging environments, offering IP67 sealing, salt spray resistance for 96 hours, and vibration/shock tolerance (55-2000 Hz, 15 g; 50 g, 11 ms). Its metal shell, shielded design, and robust materials (nickel plating, zinc alloy) contribute to corrosion resistance and dependable performance in exposure to oils, fuels, and extreme temperatures.
The UT0W01832PXH complies with UL 1977 (mating compatibility for electrical connectors), Overvoltage category III, and Pollution degree III. It also satisfies RoHS and REACH environmental requirements and carries fire resistance rating UL94 V0. These certifications support safe integration into machinery, control panels, and automation systems in regulated industries.
With 500 mating cycles and robust sealing, the UT0W01832PXH reduces replacement cycles and maintenance downtime in production lines. The 32‑position, shielded, metal connector provides reliable EMI performance and corrosion resistance, lowering field failures. Its quick-connect 1/3 bayonet coupling speeds service visits, improving overall equipment uptime and lowering total cost of ownership for OEMs and integrators.
