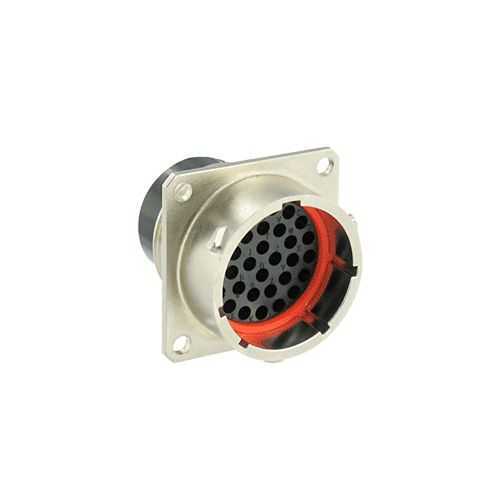

Eaton Souriau UT0W01832PXH6 Receptacle - Metal IP68/69K
Part Number: UT0W01832PXH6
Quick Summary
Eaton Souriau UT0W01832PXH6 is a rugged IP68/69K metal receptacle for harsh-environment industrial connectors. Engineers wrestle with field installations that demand reliable sealing, fault tolerance, and quick maintenance. Key certifications like IP68/69K sealing, UL 1977 compliance, and RoHS/REACH conformance help ensure safety and long life in demanding environments. The design supports 32 contacts with a 4 A rating, enabling compact, high-density assemblies that reduce part count and total cost. In practice, this translates to lower maintenance, faster repairs, and predictable performance in harsh environments.
Product Information
Extended Description
UT0W01832PXH6 Eaton: Male square flange receptacle IP68/69K, 96 h salt spray, keying X; UT0W01832PXH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01832PXH6
Product Length/Depth
33.2 mm
Product Height
33.3 mm
Product Width
33.3 mm
Product Weight
36 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
4 A UL 4 A IEC
Fitted with:
Shielding
Environmental conditions
RoHS REACH Fire & Smoke Flammability rating UL94 V0
Environmental resistance
Resistant against gasoline Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against mineral oil Resistant against basic bath Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against acid bath Resistant against oil
Test current
4 A IEC 3 A CSA 4 A UL
Test voltage
250 V UL 50 V IEC 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plating
Nickel
Shell material
Zinc alloy
Shell size
18
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
96 hour
IP68/69K sealing and salt spray resistance deliver proven protection against water ingress and corrosion, reducing downtime in outdoor or wash-down environments and extending equipment life in demanding installations. This directly impacts total cost of ownership by lowering maintenance frequency and replacement parts while maintaining consistent performance in mining, outdoor automation, or heavy machinery. The 32-contact, 4 A configuration enables dense power and signal integration in compact enclosures, enabling smarter, lighter control panels and reducing harness complexity for systems integration. The 1/3 bayonet coupling provides fast, secure mating with repeatable alignment, minimizing on-site assembly time and field service costs. Nickel-plated zinc alloy shell with a polyamide insert offers durable wear resistance and EMI shielding, supporting stable operation in vibration-rich environments. With 500 mating cycles, the connector is designed for long lifecycle reliability, reducing spare parts inventory and unplanned downtime. RoHS and REACH compliance, along with UL 94 V0 flame rating, improve safety and regulatory confidence for global deployments.
Get a Quick Quote for a Eaton UT0W01832PXH6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01832PXH6?
Enquire Now
FAQs
The UT0W01832PXH6 uses a square flange receptacle with a 1/3 bayonet coupling for quick, secure mating. Ensure the mating half is aligned to the keying X and engage with the bayonet twist until a positive lock is felt. Use crimp contact terminals and a compatible shielded harness to maintain IP68 integrity. Follow the installation torque and sealing recommendations from the official drawings to preserve ingress protection during field service.
This connector is rated for 4 A per UL and IEC standards, with a test voltage of 250 V UL and up to 50 V IEC. It features 32 contact positions with crimp contact delivery, nickel plating on the shell, and a polyamide insert. The mating cycles are specified at 500, making it suitable for recurring connect/disconnect cycles in demanding automation environments.
Yes. It carries IP68 protection and 96-hour salt spray resistance, with operation from -40 to 105 °C, and a zinc alloy shell with a polyamide insert for chemical and vibration resistance. It is RoHS and REACH compliant and UL 94 V0 flame rated, making it appropriate for outdoor machinery, mining, and heavy-industrial control panels where reliability and safety are critical.
The UT0W01832PXH6 complies with UL 1977 guidelines (Overvoltage category III / pollution degree III), RoHS, REACH, and UL 94 V0. These certifications support safe integration into global equipment, enable regulatory clearance for many markets, and help minimize compliance risk in industrial projects.
The 32-contact, 4 A design paired with 500 mating cycles reduces the need for frequent replacements and minimizes maintenance downtime. Shielding and corrosion resistance lower EMI issues and environmental wear, while the compact high-density arrangement cuts wiring complexity and panel size. Overall, this translates to lower total cost of ownership and improved uptime in rugged automation deployments.
