Eaton UT0W01832PYH Metal IP68/69k Connector - IP68/69k
Part Number: UT0W01832PYH
Quick Summary
Eaton Souriau UTO series metal IP68/69k connector is designed for rugged, high-use electrical connections in harsh industrial environments. Engineers often face corrosion, vibration, and misalignment in heavy machinery, leading to unexpected downtime and increased maintenance costs. This connector line aligns with UL 1977, RoHS, REACH, and UL94 V0 flammability requirements while delivering IP68/69k protection, supporting safe, compliant operation. With a compact 32‑position layout, shielded contacts, and a robust nickel-plated shell, it enables reliable harness integration and longer service life. Easy installation in control cabinets and equipment translates into reduced installation time and lower total cost of ownership for automation projects.
Product Information
Extended Description

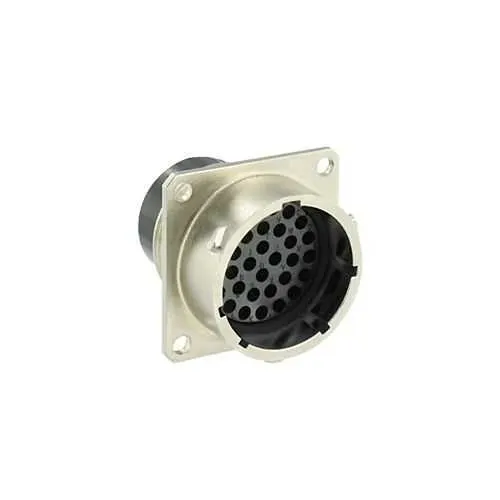

UT0W01832PYH Eaton: Male square flange receptacle IP67, 96 h salt spray, keying Y; UT0W01832PYH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01832PYH
Product Length/Depth
33.2 mm
Product Height
33.3 mm
Product Width
33.3 mm
Product Weight
36 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
4 A IEC 4 A UL
Fitted with:
Shielding
Environmental conditions
RoHS Fire & Smoke REACH Flammability rating UL94 V0
Environmental resistance
Resistant against gasoline Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against acid bath Resistant against mineral oil Resistant against basic bath Resistant against oil Shock resistance 50g, 11ms per MIL-C-26482 I
Test current
4 A IEC 3 A CSA 4 A UL
Test voltage
250 V UL 250 V CSA 50 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Y
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
32
Plating
Nickel
Shell material
Zinc alloy
Shell size
18
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
96 hour
Feature: Rugged metal housing with corrosion resistance → Business Impact: Extends service life in harsh environments by resisting moisture, dust, and chemicals → Application: Outdoor or high-vibration industrial equipment. Feature: IP68/69k sealing and 96-hour salt spray resistance → Business Impact: High reliability in wash-down, rain, or chemical exposure environments → Application: Food & beverage lines, mining equipment, and outdoor automation. Feature: 32-position square flange receptacle with 1/3 bayonet coupling → Business Impact: Dense connectivity in a compact footprint with quick, secure mating → Application: Control cabinets, motor drives, and conveyor systems. Feature: Crimp contacts with nickel plating in a zinc alloy shell → Business Impact: Consistent electrical performance and EMI shielding over lifecycle → Application: Harness assemblies and panel-to-cable connections. Feature: Operating range -40 °C to 105 °C and 4 A rating → Business Impact: Safe operation across wide temps and reliable power transfer with predictable performance → Application: Automotive, energy, and industrial automation where temperature swings occur. Feature: RoHS/REACH compliance and UL 94 V0 fire rating → Business Impact: Regulatory compliance and safer, cost-effective procurement → Application: Cabinets, junction boxes, and machinery in regulated sectors.
Get a Quick Quote for a Eaton UT0W01832PYH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01832PYH?
Enquire Now
FAQs
UT0W01832PYH uses a 1/3 Bayonet coupling with a square flange receptacle and crimp contacts. Ensure correct crimp tooling and shields are used, and verify the Y orientation for mating. The device supports standard 32-contact harness configurations and is compatible with similarly rated Souriau UT0 components, simplifying retrofit or expansion projects.
The UT0W01832PYH provides a 4 A current rating and supports up to 250 V. It operates from -40 °C to 105 °C, making it suitable for environments with wide temperature swings. Mating cycles are rated at 500, offering durable performance for extensive industrial use.
This 32‑cavity metal IP68/69k receptacle is ideal for industrial automation, control cabinets, conveyors, and rugged machinery exposed to dust, moisture, or vibration. Its shielding and robust shell support EMI protection, while the compact footprint aids in tight panel layouts and scalable harness design.
Key certifications include UL 1977, RoHS and REACH compliance, and UL94 V0 flame rating. The product is designed to meet safety and environmental regulations for demanding industrial applications, reducing compliance risk during audits and procurement.
With 500 mating cycles, 96-hour salt spray resistance, and a nickel-plated zinc shell, the connector offers long service life and low replacement frequency. This reduces downtime, lowers maintenance labor costs, and improves overall uptime for automated lines and heavy equipment.
