Eaton UT0W01832PZH Receptacle - IP68/69k Connector
Part Number: UT0W01832PZH
Quick Summary
Eaton UT0W01832PZH is a rugged metal IP68/69k connector designed for intensive use in harsh industrial environments. Engineers often wrestle with corrosion, vibration, and moisture intrusion that drive downtime and maintenance costs; this connector delivers sealing, durability, and repeatable performance under demanding conditions. It complies with UL 1977 (Overvoltage category III / Pollution degree III) and RoHS/REACH, with UL94 V0 flammability, providing safety and environmental assurance. With a compact 33.2 mm length, 33.3 mm height and width, and a 32‑circuit format, it enables dense, serviceable panels. The UT0W01832PZH is part of the Souriau UTO family, offering reliable, field-proven performance for industrial automation and heavy equipment.
Product Information
Extended Description

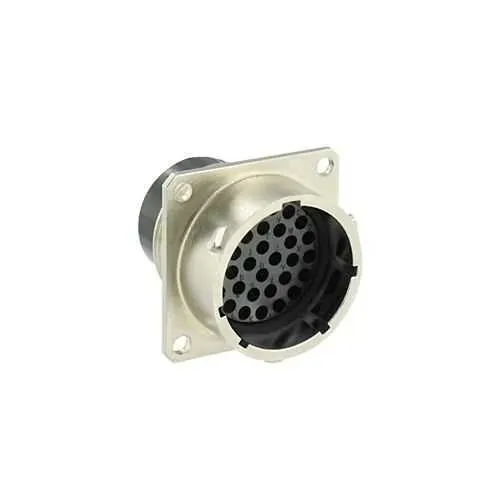

UT0W01832PZH Eaton: Male square flange receptacle IP67, 96 h salt spray, keying Z; UT0W01832PZH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01832PZH
Product Length/Depth
33.2 mm
Product Height
33.3 mm
Product Width
33.3 mm
Product Weight
36 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
4 A IEC 4 A UL
Fitted with:
Shielding
Environmental conditions
Flammability rating UL94 V0 Fire & Smoke RoHS REACH
Environmental resistance
Resistant against mineral oil Resistant against gasoline Resistant against acid bath Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against oil Resistant against basic bath Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I
Test current
3 A CSA 4 A IEC 4 A UL
Test voltage
250 V CSA 250 V UL 50 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Z
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
32
Plating
Nickel
Shell material
Zinc alloy
Shell size
18
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
96 hour
Feature → Business Impact → Application: The UT0W01832PZH uses a 32‑circuit, square flange receptacle with a 1/3 Bayonet coupling, delivering high-density connectivity while maintaining secure mating even in vibration-heavy environments. This enables compact control panels and robust field installations in robotics, conveyors, and machine centers. Feature → Business Impact → Application: Its IP67-rated sealing and salt spray resistance, combined with rugged nickel plating on a zinc alloy shell, yields long-term reliability in outdoor, chemical, and oil-rich environments, reducing field maintenance and warranty claims. Feature → Business Impact → Application: With 500 mating cycles and a polyamide insert, the connector supports repeated assembly and disassembly in test benches, service bays, and modular automation architectures, improving uptime and labor efficiency. Feature → Business Impact → Application: UL 1977, RoHS/REACH compliance, and UL94 V0 flammability ensure safety and regulatory alignment across global deployments, minimizing risk during audits and reducing compliance costs. Feature → Business Impact → Application: The combination of shield integration, crimp contact delivery, and a compact footprint simplifies panel routing, cable management, and installer training, offering faster field deployment and consistent performance across Souriau’s UTO series.
Get a Quick Quote for a Eaton UT0W01832PZH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01832PZH?
Enquire Now
FAQs
Begin by aligning the square flange receptacle with the mounting hole pattern on the panel. Use the 33.3 mm width and 33.3 mm height to determine the cutout, then secure with appropriate mounting hardware. Connect the 32 crimp contacts using a compatible crimp tool, ensuring the shield is properly bonded if used. Finally, engage the 1/3 Bayonet coupling to mate with the corresponding plug and verify the Z orientation for correct alignment.
The UT0W01832PZH is rated for 4 A per IEC and 4 A per UL, with a test current of 3 A (CSA) or 4 A (IEC/UL). It supports up to 250 V across CSA/UL and 50 V across IEC. The 32‑contact layout enables multiple signal and power paths, while the mating cycles of 500 provide endurance for routine maintenance and reconfiguration.
Yes. The design features a zinc alloy shell with nickel plating and a polyamide insert, delivering robust corrosion resistance. It offers IP67 sealing and salt spray resistance for 96 hours, plus resistance to mineral oil, gasoline, and various baths. The connector tolerates wide temperatures (-40 to 105 °C) and shock/vibration ranges typical of outdoor and process environments.
The product complies with UL 1977 (Overvoltage category III, Pollution degree III) and UL94 V0. It is RoHS and REACH compliant, supporting responsible material chemistry and safe disposal. These certifications help satisfy safety audits, environmental requirements, and industry reliability standards for industrial equipment.
With 500 mating cycles and durable sealing, the UT0W01832PZH reduces replacement frequency and maintenance downtime. The modular, shielded design allows quick field connections or reconfigurations, enabling faster installation, lower labor costs, and improved total cost of ownership for automated lines and heavy machinery.
