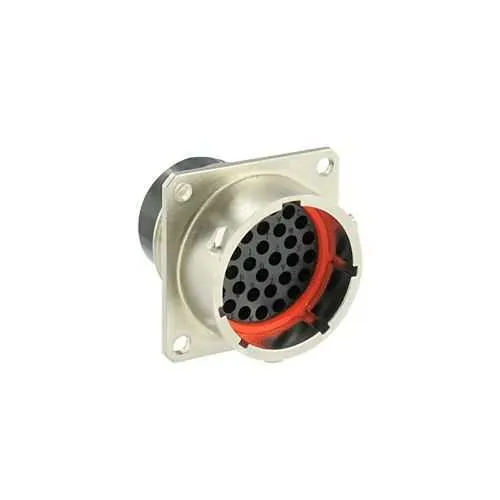

Eaton UT0W01832PZH6 UTO metal IP68/69K connector
Part Number: UT0W01832PZH6
Quick Summary
The Eaton UT0W01832PZH6 is a metal IP68/69K connector designed for rugged, high-use industrial equipment. Engineers often struggle with corrosion, moisture ingress, and unreliable field connections in harsh outdoor or mobile installations. This receptacle meets UL 1977 overvoltage category III, IP68 protection, and 96-hour salt spray testing, delivering dependable performance in demanding environments. Its 32-position, crimp-contact design combines with a 1/3 bayonet coupling for fast, secure mating, reducing downtime and maintenance costs. With robust shielding and a nickel-plated shell, this solution supports compliant automation deployments while enabling cost-effective, scalable connectivity across your factory floor.
Product Information
Extended Description
UT0W01832PZH6 Eaton: Male square flange receptacle IP68/69K, 96 h salt spray, keying Z; UT0W01832PZH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01832PZH6
Product Length/Depth
33.2 mm
Product Height
33.3 mm
Product Width
33.3 mm
Product Weight
36 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
4 A IEC 4 A UL
Fitted with:
Shielding
Environmental conditions
REACH RoHS Fire & Smoke Flammability rating UL94 V0
Environmental resistance
Resistant against gasoline Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against acid bath Resistant against basic bath Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against oil Resistant against mineral oil
Test current
4 A UL 4 A IEC 3 A CSA
Test voltage
250 V CSA 250 V UL 50 V IEC
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Z
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plating
Nickel
Shell material
Zinc alloy
Shell size
18
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
96 hour
Feature is a rugged metal IP68/69K receptacle with a 1/3 bayonet coupling and square flange mounting. Business Impact is improved ingress protection, faster field servicing, and reduced unplanned downtime in harsh environments. Application is outdoor automation, mining equipment, and mobile machinery where reliable connectivity is critical. Feature is 32 contacts and 4 A rating, enabling consolidated power and signal paths without multiple connectors. Business Impact is simplified harnessing, lower wiring complexity, and consistent electrical performance under load. Application is high-density control panels and robotics where space and reliability matter. Feature is 500 mating cycles and operating from -40 °C to 105 °C, delivering long service life with minimum replacement costs. Application is automotive, off-road, and industrial automation exposed to temperature extremes. Feature is nickel-plated shell and zinc alloy housing with 33.2 mm depth and 33.3 mm dimensions, ensuring durability and ease of installation. Business Impact is enhanced vibration resistance and straightforward mounting on standard panels, reducing installation time. Application includes square flange receptacle mounting on control enclosures and machinery housings. Feature is environmental compliance including REACH, RoHS, and UL94 V0, ensuring regulatory alignment. Business Impact is risk mitigation and faster time-to-market for regulated projects. Application is applications requiring fire-safe, eco-friendly connectors with proven performance.
Get a Quick Quote for a Eaton UT0W01832PZH6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01832PZH6?
Enquire Now
FAQs
UT0W01832PZH6 is an IP68-rated receptacle with 96-hour salt spray resistance, designed for outdoor and harsh environments. It operates from -40 °C to 105 °C and meets UL 1977 environmental requirements, delivering durable performance in demanding industrial applications.
Yes. The connector uses a 1/3 bayonet coupling and is a square flange receptacle, making panel mounting quick and secure while providing a reliable mating interface in restricted spaces.
The UT0W01832PZH6 supports 4 A per IEC/UL and uses crimp contacts in a 32-position configuration, suitable for mixed signal and power connections within a compact footprint.
Ideal for industrial automation, outdoor equipment, mining machinery, and heavy vehicles where high ingress protection, durability, and reliable mating cycles are essential for uptime and safety.
Key certifications include UL 1977 overvoltage category III, IP68 protection, REACH and RoHS compliance, and UL94 V0 flammability rating, ensuring regulatory alignment and safe operation in regulated environments.
