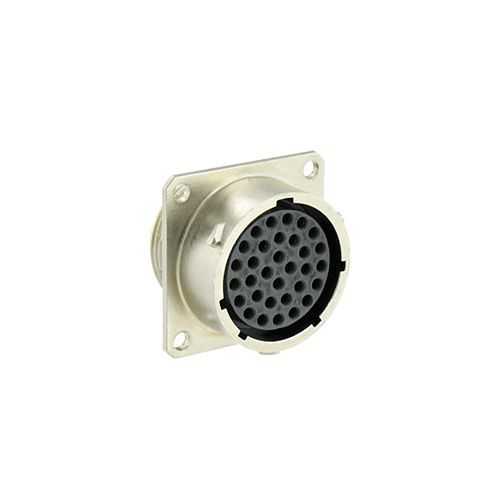

Eaton UT0W01832SH Receptacle - IP68/69k Rugged Connector
Part Number: UT0W01832SH
Quick Summary
Eaton UT0W01832SH is a metal IP68/69k receptacle connector for harsh industrial environments. Maintenance teams struggle with ingress in outdoor, mobile, or dusty equipment, causing downtime and costly repairs. This design delivers IP67 protection, 96 h salt spray resistance, and UL 1977 and RoHS compliance to minimize field failures. With 32 contacts and shielded crimp connections, it supports compact, reliable interfaces in control cabinets, robotics, and mobile equipment. Designed for panel mounting, it aligns quickly with square flange housings, reducing assembly time and improving traceability in low-volume or high-mix production. Coupled with Eaton's UTO family, it enables scalable solutions from simple panels to multi-connector harnesses, supporting cost-effective maintenance and faster field service.
Product Information
Extended Description
UT0W01832SH Eaton: Female square flange receptacle IP67, 96 h salt spray; UT0W01832SH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01832SH
Product Length/Depth
25.2 mm
Product Height
33.3 mm
Product Width
33.3 mm
Product Weight
35.7 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
4 A IEC 4 A UL
Fitted with:
Shielding
Environmental conditions
Fire & Smoke REACH RoHS Flammability rating UL94 V0
Environmental resistance
Resistant against basic bath Resistant against oil Resistant against acid bath Shock resistance 50g, 11ms per MIL-C-26482 I Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against gasoline Resistant against mineral oil
Test current
3 A CSA 4 A IEC 4 A UL
Test voltage
50 V IEC 250 V UL 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
32
Plating
Nickel
Shell material
Zinc alloy
Shell size
18
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
96 hour
Feature → Business Impact → Application: The UT0W01832SH uses a zinc alloy shell with nickel plating and a polyamide insert, delivering robust EMI shielding and corrosion resistance, which minimizes signal integrity issues in dense automation networks and is ideal for control cabinets and outdoor equipment. The 32-contact, 4 A current rating in a high-density layout supports compact harness designs while meeting load requirements, improving panel real estate utilization and thermal management for robotics and packaging lines. The 1/3 bayonet coupling enables fast mate/unmate with reliable retention, reducing tool time during assembly and maintenance in tight spaces found on conveyors and presses. Its square flange receptacle alignment simplifies installation and ensures repeatable seals, boosting uptime in process lines. With a broad operating range (-40 to 105 °C) and 96 h salt spray resistance, the design withstands harsh environments, lowering maintenance frequency and life-cycle costs. Regulatory robustness includes UL 1977, RoHS, REACH, and UL94 V0, enabling compliant procurement and safer installations across industrial automation projects.
Get a Quick Quote for a Eaton UT0W01832SH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01832SH?
Enquire Now
FAQs
The UT0W01832SH is designed as a square flange receptacle for the Eaton Souriau UTO series, featuring 32 crimp contacts and a 1/3 bayonet coupling. It fits panel-mount assemblies in control cabinets, robotics, and outdoor machinery, enabling compact, reliable interconnections in high-density harnesses.
It provides a 4 A current rating per IEC/UL standards, 32 contact positions, and 500 mating cycles. The crimp contact delivery supports secure electrical connections, while the 1/3 bayonet coupling ensures quick, repeatable mating even in confined spaces.
Yes. The unit features IP67 protection, 96-hour salt spray resistance, operating temperatures from -40 to 105 °C, and shielding. These attributes make it well-suited for outdoor equipment, chemical plants, and other demanding industrial applications.
The connector meets UL 1977, RoHS, REACH, and UL94 V0, providing regulatory compliance for industrial automation programs. The nickel-plated zinc alloy shell further contributes to corrosion resistance and durability in challenging environments.
Choose the square flange receptacle mating style for panel cutouts, and plan for the 1/3 bayonet coupling with shielded crimp contacts. Note that some connector accessories are not delivered and must be ordered separately to complete the harness and mounting in the target equipment.
