Eaton UT0W01832SWH UTO Connector - IP68/69k
Part Number: UT0W01832SWH
Quick Summary
The Eaton Souriau UTO series metal IP68/69k connector is a rugged, high-reliability electrical connection for harsh industrial environments. Engineers frequently contend with moisture, dust ingress and vibration that threaten uptime; this connector is engineered to resist water, salt spray and shock. Key certifications include UL 1977 compliance, IP67 protection with salt spray resistance, and MIL-C-26482 vibration/shock tolerance, ensuring reliable service in demanding environments. With shielded crimp contacts and a compact 32‑cavity design, it delivers scalable automation compatibility while simplifying procurement and maintenance for panel- and field-mounted systems.
Product Information
Extended Description

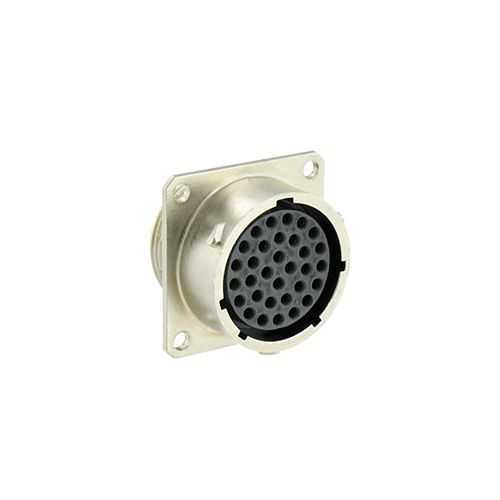

UT0W01832SWH Eaton: Female square flange receptacle IP67, 96 h salt spray, keying W; UT0W01832SWH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01832SWH
Product Length/Depth
25.2 mm
Product Height
33.3 mm
Product Width
33.3 mm
Product Weight
35.7 g
Compliances
UL 1977 Overvoltage category III / pollution degree III
Current rating
4 A UL 4 A IEC
Fitted with:
Shielding
Environmental conditions
Fire & Smoke REACH Flammability rating UL94 V0 RoHS
Environmental resistance
Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against oil Resistant against gasoline Resistant against basic bath Resistant against acid bath Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against mineral oil
Test current
4 A IEC 4 A UL 3 A CSA
Test voltage
250 V UL 50 V IEC 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
W
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
32
Plating
Nickel
Shell material
Zinc alloy
Shell size
18
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
96 hour
Feature → Business Impact → Application: The UTO metal shell with zinc alloy construction and nickel plating provides exceptional corrosion resistance and EMI shielding, extending service life in outdoor and harsh environments and reducing replacement costs for mobile machinery and fixed automation. Feature → Quick, secure mating via 1/3 Bayonet coupling reduces maintenance downtime and allows faster field servicing, boosting overall equipment effectiveness (OEE) in assembly lines and outdoor installations. Feature → 32-position receptacle with shielded Crimp contacts delivers multipoint connectivity in a compact footprint, enabling more signals and power paths in a single connector without increasing panel footprint. Feature → Operating range -40 °C to 105 °C and rugged environmental resistance (salt spray, shock, vibrations) ensure reliable performance in extreme industrial conditions, lowering risk of unplanned downtime. Feature → Square flange receptacle mounting and a 500 mating-cycle life support long-term equipment lifecycle management and predictable spare parts planning for manufacturing environments. The design aligns with UL 1977, RoHS/REACH compliance, and 96-hour salt spray testing to satisfy stringent industry standards while facilitating easy installation and maintenance in automation projects.
Get a Quick Quote for a Eaton UT0W01832SWH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01832SWH?
Enquire Now
FAQs
For panel mounting, use the square flange receptacle with appropriate screws or bolts to secure the housing. Ensure the mating face aligns with the connector orientation specified as W, and use the 1/3 Bayonet coupling for secure engagement. Note that connector accessories are not delivered and must be ordered separately to fit your panel thickness and gasket requirements.
The UT0W01832SWH requires up to 4 A per UL and IEC standards, with a test current of 4 A UL/IEC and 3 A CSA. It supports a maximum test voltage of 250 V (UL) and 50 V (IEC) with a 32-cavity configuration. Shielded, crimp-type contacts are used to ensure EMI performance in dense automation harnesses.
Yes. It is designed for harsh industrial environments, featuring IP67 protection, 96-hour salt spray resistance, shock resistance up to 50 g (11 ms) and vibration tolerance per MIL-C-26482 I. Operating temperature ranges from -40 °C to 105 °C, making it suitable for outdoor deployments and equipment exposed to wide thermal cycles.
Key certifications include UL 1977 for device-to-device connections, RoHS and REACH compliance for restricted substances, UL94 V0 flammability rating, and MIL-C-26482 compatibility for vibration/shock performance. These certifications support safe integration into industrial control panels and meet common regulatory requirements in automation projects.
The connector supports up to 500 mating cycles, which helps predict maintenance intervals and spares planning for high‑duty applications. Shielding and robust materials reduce corrosion-related maintenance, while the crimp contacts provide reliable, serviceable terminations. Keep mating surfaces clean and reuse protective accessories where specified to maximize longevity.
