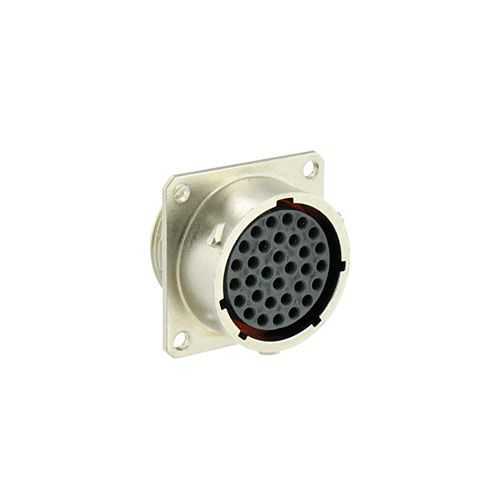

Eaton UT0W01832SXH6 UTO series metal IP68/69K connector - IP68/69K
Part Number: UT0W01832SXH6
Quick Summary
Eaton UT0W01832SXH6 UTO series metal IP68/69K connector delivers rugged, reliable power and signal coupling for harsh industrial environments. Manufacturers often struggle with seals failing under vibration or salt spray, causing downtime and costly repairs. With IP68/IP69K sealing, 96-hour salt spray resistance, and UL 1977 compliance, this receptacle meets harsh-environment standards. Ideal for automation panels and outdoor machinery, it supports 32 contacts in a compact shell size 18 while offering a 4 A current rating.
Product Information
Extended Description
UT0W01832SXH6 Eaton: Female square flange receptacle IP68/69K, 96 h salt spray, keying X; UT0W01832SXH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01832SXH6
Product Length/Depth
25.2 mm
Product Height
33.3 mm
Product Width
33.3 mm
Product Weight
35.7 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
4 A IEC 4 A UL
Fitted with:
Shielding
Environmental conditions
RoHS REACH Fire & Smoke Flammability rating UL94 V0
Environmental resistance
Resistant against mineral oil Resistant against acid bath Resistant against basic bath Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against oil Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against gasoline
Test current
4 A UL 3 A CSA 4 A IEC
Test voltage
250 V CSA 50 V IEC 250 V UL
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
X
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plating
Nickel
Shell material
Zinc alloy
Shell size
18
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
96 hour
The 32-contact configuration and square flange receptacle enable high-density connectivity suitable for control panels and compact enclosures, reducing panel footprint and wiring complexity while increasing reliability in automated lines. The nickel-plated zinc alloy shell paired with a polyamide insert delivers durable, corrosion-resistant performance in oil, chemical, and outdoor environments, extending service life and lowering maintenance costs. Quick-mating with a 1/3 bayonet coupling supports fast field assembly and minimizes machine downtime during routine maintenance or reconfigurations. Operating across -40 °C to 105 °C and with 96-hour salt spray resistance, this connector maintains integrity in extreme temperatures and harsh environments, improving uptime for mining, construction, and outdoor automation. A current rating of 4 A and 250 V test voltage ensures safe operation for low-power control circuits, while 500 mating cycles provide predictable lifecycle performance for high-use applications. RoHS and REACH compliance, along with 32 positions and shielded capability, help meet modern regulatory and EMI/EMC expectations, making it compatible with a wide range of Souriau UTO family connections and panel layouts.
Get a Quick Quote for a Eaton UT0W01832SXH6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01832SXH6?
Enquire Now
FAQs
UT0W01832SXH6 uses a square flange receptacle suitable for panel mounting and alignment with a dedicated orientation X. The 32-contact layout fits high-density automation panels, while the 1/3 bayonet coupling enables quick, secure mating. When mounted, ensure panel cutouts and nut material (aluminium) meet the specified dimensions for proper sealing and EMI performance.
The connector provides a 4 A current rating and 250 V test voltage, supporting safe operation in low-power control circuits. It features IP68 sealing with a 96-hour salt spray resistance and operates from -40 °C to 105 °C. Compliance includes RoHS/REACH and UL 1977, ensuring reliability in harsh industrial environments.
Yes. The metal zinc alloy shell with nickel plating combined with a polyamide insert delivers robust mechanical strength and chemical resistance. Its IP68 rating, salt spray endurance, and broad operating temperature range make it well-suited for outdoor installations, mining equipment, and heavy machinery exposed to moisture, dust, and temperature extremes.
This receptacle meets IP68 (dust and water ingress protection) and UL 1977 specifications for wall and chassis installations. It also complies with RoHS/REACH and UL 94 V0 flammability requirements, ensuring safe use in regulated environments. These certifications help validate reliability, safety, and environmental compliance for industrial deployments.
With 32 positions and 500 mating cycles, the UT0W01832SXH6 offers predictable lifecycle performance for high-use automation lines, reducing replacement frequency. The rugged construction minimizes corrosion and wear, lowering maintenance costs. Shielded operation and robust environmental resistance further reduce unforeseen downtime in demanding applications such as conveyors, robotics, and outdoor machinery.
