Eaton UT0W01832SZH6 UTO Receptacle - IP68/69K
Part Number: UT0W01832SZH6
Quick Summary
The Eaton UT0W01832SZH6 UTO IP68/69K metal connector delivers rugged, sealed receptacle performance for heavy industrial automation and outdoor equipment. In field deployments, moisture ingress, salt spray, and vibration are common killers of reliability. This unit carries IP68 protection, 96 h salt spray rating, and resilience per MIL-C-26482 with 500 mating cycles, plus RoHS/REACH and UL 1977 compliance to support safety and traceability. These features translate to longer mean time between failures and lower maintenance costs in harsh environments and demanding industrial applications. As a result, engineers can specify this connector with confidence for equipment like outdoor cranes, mobile machinery, and process control panels.
Product Information
Extended Description

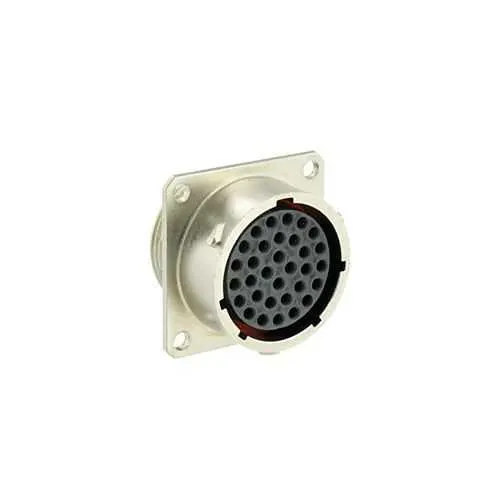

UT0W01832SZH6 Eaton: Female square flange receptacle IP68/69K, 96 h salt spray, keying Z; UT0W01832SZH6
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W01832SZH6
Product Length/Depth
25.2 mm
Product Height
33.3 mm
Product Width
33.3 mm
Product Weight
35.7 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
4 A UL 4 A IEC
Fitted with:
Shielding
Environmental conditions
Fire & Smoke Flammability rating UL94 V0 RoHS REACH
Environmental resistance
Resistant against acid bath Resistant against gasoline Resistant against basic bath Resistant against oil Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against mineral oil Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I
Test current
3 A CSA 4 A UL 4 A IEC
Test voltage
50 V IEC 250 V UL 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
Z
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Socket (Female)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP68
Insert material
Polyamide
Layout
32
Plating
Nickel
Shell material
Zinc alloy
Shell size
18
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
32
Number of cavity #20
32
Nut material
Aluminium
Salt spray
96 hour
IP68/IP69K protection and corrosion tolerance reduce unplanned downtime in washdown-heavy operations and outdoor installations. The 32-contact layout supports dense signaling and power transfer while maintaining a compact footprint, improving cabling efficiency and reducing installation time. A current rating of 4 A and a 1/3 bayonet coupling enable reliable, vibration-resistant mating with shielded crimp contacts, delivering consistent electrical performance in demanding environments. The zinc alloy shell with nickel plating provides a robust enclosure that resists mechanical wear, while a square flange receptacle design simplifies mounting and aligns with standard panel cutouts. Operating from -40 °C to 105 °C and UL 94 V0 flame rating, the connector remains safe under temperature swings and stringent safety requirements. Regulatory compliance with UL 1977, RoHS, and REACH helps streamline procurement and documentation, while 500 mating cycles indicate a long service life in high-use installations. These attributes translate into measurable ROI through reduced maintenance, lower replacement costs, and improved uptime for automation systems in mining, oil & gas, and manufacturing settings. The shielded design further mitigates EMI/RFI, supporting stable performance in electrically noisy environments and enabling reliable data transmission across multi-conductor networks. Compatibility with Souriau UTO mating systems and the 1/3 bayonet coupling offers fast field mating and straightforward replacement, minimizing downtime during maintenance windows and upgrades. Overall, UT0W01832SZH6 brings a durable, compliant, and install-friendly solution for engineers designing robust control rooms, outdoor substations, and portable machinery.
Get a Quick Quote for a Eaton UT0W01832SZH6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton UT0W01832SZH6?
Enquire Now
FAQs
UT0W01832SZH6 is a 32‑position square flange receptacle in the UTO family, designed to mate with standard Souriau UTO plugs using a 1/3 bayonet coupling. It uses crimp contacts and provides shielding for EMI protection. Ensure the mating connector, orientation (Z), and gasket are correctly aligned to achieve the IP68 seal and the full 32‑cavity configuration for reliable field service.
The UT0W01832SZH6 features IP68 protection, 96‑hour salt spray resistance, and a -40 °C to 105 °C operating range. It also carries a UL 94 V0 flammability rating, RoHS and REACH compliance, and UL 1977 recognition, ensuring safe operation, regulatory compliance, and resilience in harsh industrial environments such as chemical plants and outdoor installations.
Installation benefits include its compact 25.2 mm depth and 33.3 mm width/height, plus a square flange receptacle that aligns with standard panel cutouts. The 1/3 bayonet coupling enables quick mating while maintaining a secure, vibration-resistant connection. Use shielded crimp contacts and the recommended panel gasket to maintain IP68 sealing during maintenance and service operations.
Yes, UT0W01832SZH6 complies with UL 1977. It carries a 4 A current rating, with a test current of 4 A and a test voltage of up to 250 V (UL/CSA) or 50 V (IEC). This makes it suitable for mixed signal and light power applications in industrial automation while preserving safety and signaling integrity in rugged environments.
The 32‑cavity, shielded design, IP68/69K protection, and 500 mating cycles reduce maintenance frequency and replacement costs. The connector’s robustness against moisture, salt spray, and vibration minimizes downtime in outdoor and washdown-heavy facilities, delivering improved equipment uptime, predictable service life, and lower total cost of ownership for automation and control systems.
