Eaton UT0W02041PH UTO Series Metal IP68/69k Connector - IP68/69k
Part Number: UT0W02041PH
Quick Summary
Eaton UT0W02041PH is a metal IP68/69k connector designed for intensive use in harsh industrial environments. Engineers frequently contend with moisture, dust, and vibration that threaten connectivity; this part is built to withstand those challenges while delivering reliable signal and power transfer. The solution aligns with UL 1977, RoHS and REACH, delivering peace of mind in terms of safety, compliance, and long-term performance. With a rugged square flange receptacle and 41 contacts, it supports dense wiring for demanding automation networks, while its shielding and corrosion-resistant shell reduce maintenance costs and downtime in harsh facilities.
Product Information
Extended Description

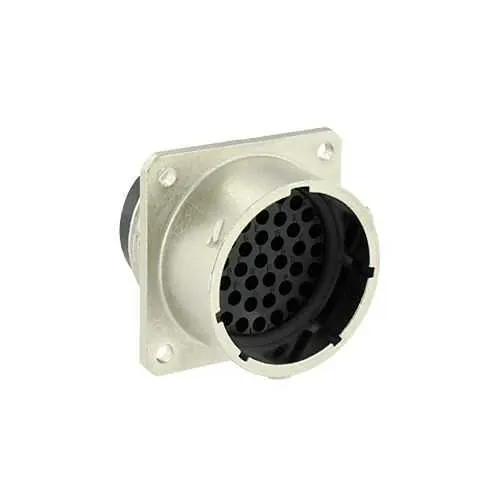

UT0W02041PH Eaton: Male square flange receptacle IP67, 96 h salt spray; UT0W02041PH
Product Name
Eaton Souriau UTO series metal IP68/69k connector for intensive use
Catalog Number
UT0W02041PH
Product Length/Depth
34.7 mm
Product Height
36.5 mm
Product Width
36.5 mm
Product Weight
54.3 g
Compliances
Overvoltage category III / pollution degree III UL 1977
Current rating
8 A IEC 3 A UL
Fitted with:
Shielding
Environmental conditions
Fire & Smoke RoHS Flammability rating UL94 V0 REACH
Environmental resistance
Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against acid bath Resistant against oil Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against mineral oil Resistant against basic bath Resistant against gasoline
Test current
3 A UL 8 A IEC 2 A CSA
Test voltage
80 V IEC 250 V UL 250 V CSA
Connector accessory option
Not delivered, to be ordered separately
Connector orientation
N
Connector type
Receptacle
Contact delivery
Not delivered
Contact gender
Pin (Male)
Contact type
Crimp
Coupling type
1/3 Bayonet
Degree of protection
IP67
Insert material
Polyamide
Layout
41
Plating
Nickel
Shell material
Zinc alloy
Shell size
20
Mating cycles
500
Operating temperature - max
105 °C
Operating temperature - min
-40 °C
Receptacle type
Square Flange Receptacle
Number Of Contacts
41
Number of cavity #20
41
Nut material
Aluminium
Salt spray
96 hour
Feature: Metal housing in zinc alloy with nickel plating; Insert material: Polyamide; Shielding helps minimize EMI and external corrosion. Business Impact: Enhanced durability and EMI protection reduce failure rates and service calls in harsh environments. Application: Outdoor cabinets, heavy machinery, and robotic cells where durability and shielding are critical. Feature: IP67 sealing with 96-hour salt spray resistance; shock tolerance 50g and 11 ms; vibration 55-2000 Hz at 15g. Business Impact: Superior environmental sealing and vibration resistance extend mean time between failures (MTBF) and enable reliable operation in dusty, wet, or vibrating settings. Application: Mining equipment, offshore platforms, and mobile automation units. Feature: 1/3 Bayonet coupling with 41 contacts and mating cycles of 500. Business Impact: Quick, secure mating and long service life minimize field maintenance and rework. Application: High-density control panels, robotics, and CNC machinery where fast assembly matters. Feature: Operating temperature range from -40 °C to 105 °C. Business Impact: Maintains performance across extreme ambient conditions, reducing thermal-related faults. Application: Outdoor weather enclosures, railway rolling stock, and agricultural automation. Feature: Current rating 8 A IEC (3 A UL) and test voltage up to 250 V. Business Impact: Adequate power handling for signal and power distribution without oversizing, lowering component count and cost. Application: Industrial control circuits, sensors, and actuation networks within safety limits. Feature: Receptacle type Square Flange with 41 contacts and aluminum nut, shielded mating. Business Impact: Consistent mechanical alignment and robust electrical contact in compact installations. Application: Integrated control desks, sensor arrays, and equipment cabinets requiring dense connectivity.
